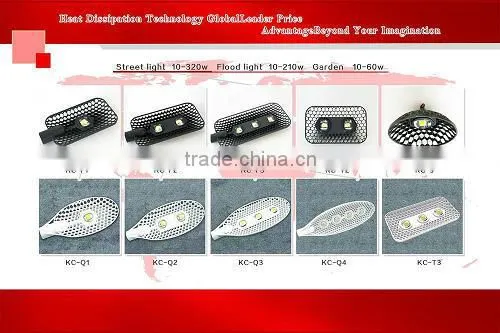

KC-LED STREET LIGHTS
FEATURE
1.Superior Aluminium alloy material, radiating function is more efficient,make sure long lifespan
2.beautifully plate design ,Highly optimized for general use
3.Glass light distribution,no PC diffuser,once distributing light makes sure only less loss of ray
4.Cree or bridgelux leds 3w/pc, big size chip and gold line, real 45mil, high lumen
5.Average distribution light lens, long pole distance, easy to get the acceptance requirements
KC-SOLAR PANEL
FEATURE
1.Easy installation and handling for various applications
2.Tempered glass,EVA lamination and weatherproof backsheet provide long-life and enhance cell performance
3.Anti-reflective coating improves light absorption and reduces surface dust
4.Excellent performance in low-light irradiance environment
5.High salt mist and ammonia resistance
6.Manufactured according to international quality management system(ISO9001)
7.CE and ROHS certified product
| Solar Panel technical parameters | ||||
| ITEM | DATA | ITEM | DATA | |
| Rated power at STC | 120W | Number of cells per module | 36pcs | |
| Max. Power Voltage (Vmp) | 17.28V | Weight | 11.0KGS | |
| Max. Power Current (Imp) | 6.95A | Cell size | 156*156mm | |
| Open Circuit Voltage (Voc) | 21.60V | Size | 1480*680*35 mm | |
| Short Circuit Voltage (Isc) | 7.31A | Module Certificate | TUV&CE | |
| Temp coefficients of Voc | -0.38/°C | Junction box type | TUV | |
| Temp coefficients of Isc | +0.1/°C | Cable type | TUV | |
| Temp coefficients of Pm | -0.47/°C | Output tolerance | 0 to +3% | |
| Temp coefficients of Im | +0.1/°C | Frame material | Anodized aluminium | |
| Temp coefficients of Im | -0.38/°C | Front glass | 3.2mm tempered glass | |
| Temperature Range | -40°C-+80°C | Warranty | 10 years Full warranty on the Material and workmanship, and a performance warranty of 90% of the minimal rated.power output (Pmpp 0 to +3%) during the first ten (10) years and 80% during twenty-five (25) years | |
| Cell technology |
Polycrystalline silicon At Standard Test Conditions(STC) Irradiance 1000Watt/M2,AM1.5 100mW/cm2 25°C |
|||
KC-GEL-BATTERY
FEATURE
1.Real green and environmentally friendly batteries
2.Extremely low internal resistance and self-discharge rate
3.Long life design
4.Fit for use in regions of high altitude and wider range of temperatures
5.Excellent performance in capacity recovery
KC -CONTROLLER
FEATURE
1.12V/24V automatic identify or user-defined working voltage
2.High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance.
cases:
Factory price
Delivery time:depend on quantity of order
Sample cost/availability: charge
We'd appreciate any sample orders.
Shandong Kaich optical &electronic technology co.,ltd is specialized in designing and manufacturing the LED lamps.Our product lines include solar led street lamp,garden light ,flood light,high-pole light ,One-armed and both armed street light ,which is widely used to the square,garden ,park,high way,factory,warehouse,school outdoor lighting ,mainroads,branch road and so on .
Our Factory:
Our LED street lights series products possessing patent of inverntion,appearance and light distribution ,has been listed in the LED street lights purchasing directory of Shandong benchmarking system.Kaich also being chosen as the green lighting demonstration city LED manufacturer of Shandong .
