High power 120W 150W 180W 210W 240W 5 years warranty LED street light waterproof outdoor lighting
- 5000 Piece / Pieces per Month
- QINGDAO
- T/T Credit Card
- LED glass lens module light source 50W module courtyard light M4G5 street light module EMC engineering project premium product
- LED glass lens module light source, 50W module street light, courtyard light, landscape light, magnolia light, M4G5 street light module
- LED glass lens module light source street light 50W module courtyard light M4G5 street light module landscape light Yulan light
- LED glass lens module light source Street light 25W module Courtyard light M4G5 Street light module Landscape light Magnolia light
- LED glass lens module light source projection light 50W-700W module high pole light M4G5 street light module M212 tunnel light
- 190Lm/WLED glass lens module light source Street light 25W module Courtyard light M4G3 Street light module EMC project M212
Product Details
LED Light Source: | Bridgelux COB | Input Voltage(V): | 110-220V 12\24V | Lamp Power(W): | 180 |
Lamp Luminous Flux(lm): | 10200-26400 | Lamp Luminous Efficiency(lm/w): | 110 | Color Temperature(CCT): | Other, 3000K-6000K |
Working Temperature(℃): | -30, 50 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | Aluminum |
IP Rating: | IP65 | Certification: | CCC, CE, CQC, UL | Warranty(Year): | 5 |
Place of Origin: | Shandong, China | Brand Name: | KAICH | Model Number: | KC-Q3 |
Product Description
Configuration Chart
Kaich LED Street Light KC-Q3 | |||||
NO. | Specification | ||||
1 | Model | KC-Q3 | |||
2 | Power Range(W) | 120W | |||
3 | Light source | Intergrated Bridgelux COB | |||
4 | Certifications | CE RoHS CQC UL CCC | |||
5 | Color Temperature | 3000K-6000K | |||
6 | Angle of Light Diffusion | 160°×80° | |||
7 | Rated Voltage | 110v/220v(constant-current) 1224V | |||
8 | Temp. Rise | 23°C | |||
9 | Light Effect | 122mw(with AC) 147lmw (with solar panel) | |||
10 | Power Factor | >95% | |||
11 | IP Code | 65 | |||
12 | Lifetime | >50000Hours | |||
13 | Ambient Tem. | -30~50°C | |||
14 | Body Material | ADC12 Die casting Aluminum | |||
15 | Flux | 7200-24000lm | |||
16 | Product Size(cm) | 75CM*33CM*9.8CM | |||
17 | Lens material | High borosilicate glass 3.3 |
Application: road lighting of express ways, urban roads
Recommended installation height: 120w-240w lamps 10-12m

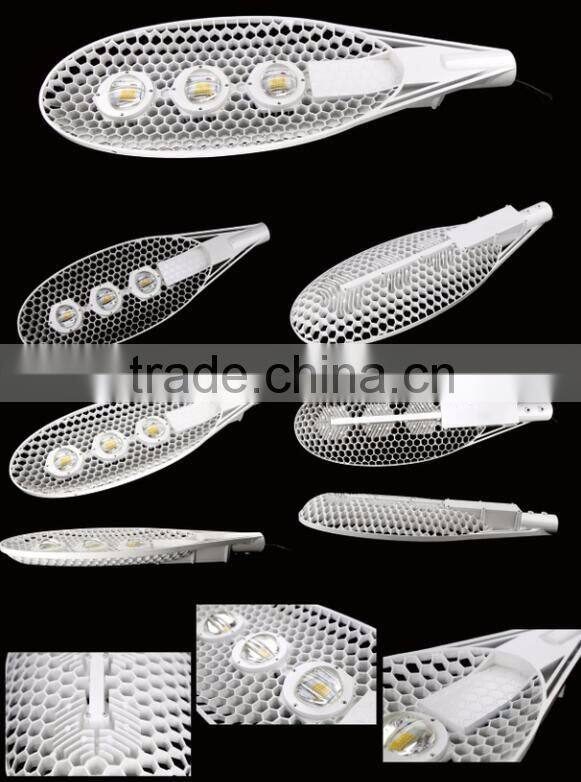

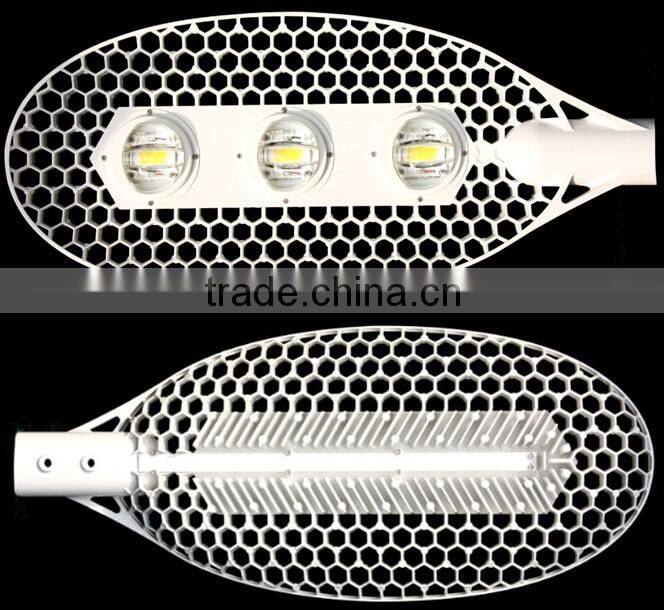

Product images:
Advantage analysis of Kaich LED lights
Patent heat dissipation technology

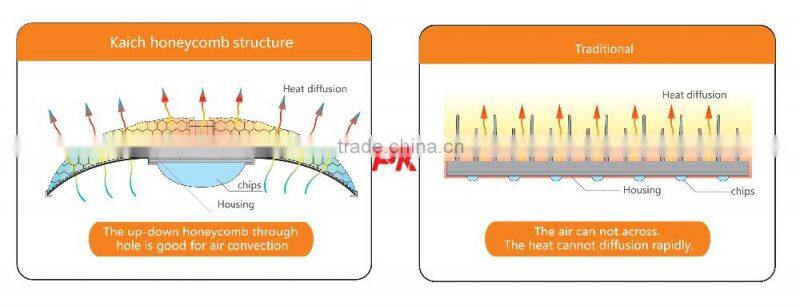

Hexagonal honeycomb heat dissipation structure
1st. Heat conduction
Regarding the housing material, Kaich Led lamp adopts ADC12 die-casting aluminum, having a better and faster heat dissipation effect in all of the metal elements. Except for the material, it is also designed with a Hexagonal honeycomb structure, which is more conductive to diffuse the heat out of the center of LED chip. In this way, the lamp housing‘s cooling effect is much more obvious.
2nd .Heat convection
Kaich Led lamp adopts an up-down through-hole heat dissipation structure, speeding up the flow of hot and cold air and gaining a better cooling effect.
3rd. COB LED chip
Kaich Led lamp adopts high power integrated COB chip, which is the LED lighting technical direction, greatly improving the assembly efficiency and IP rate, and also reducing the production cost and damage rate.
4th. Patent lens
Kaich Led lamp adopts the high transmittance PC and Glass patent lens, greatly improving the illumination uniformity and having a better light distribution, more directional.
5th. Practical but artistic housing design
The unique design with or without power supply box, can meet different clients conditions, also reduces the damage rate and lower the production and maintenance costs. In addition, the stream line design can make use of the crosswind to realize the dissipation purpose, and protect the lens.
Management certificate

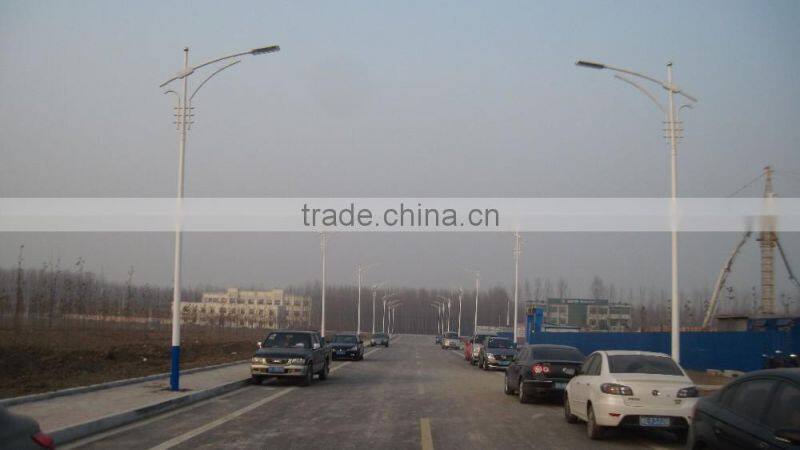

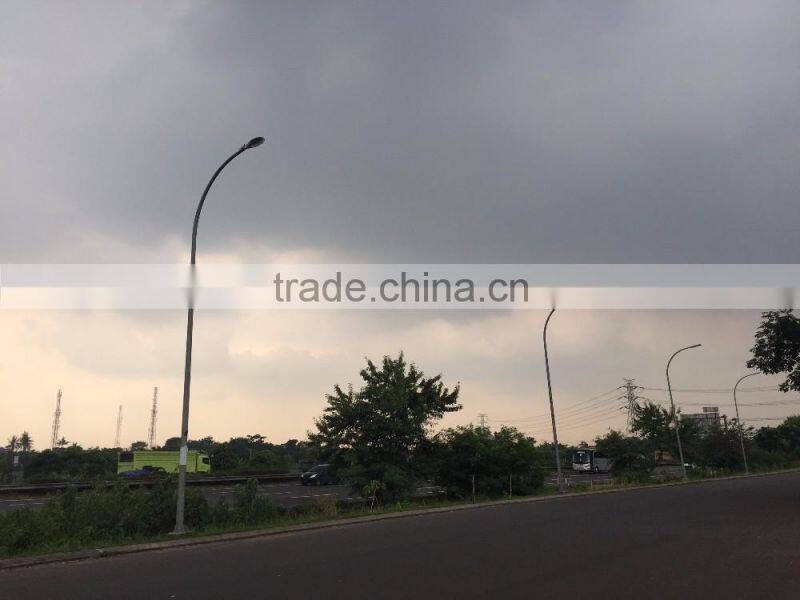

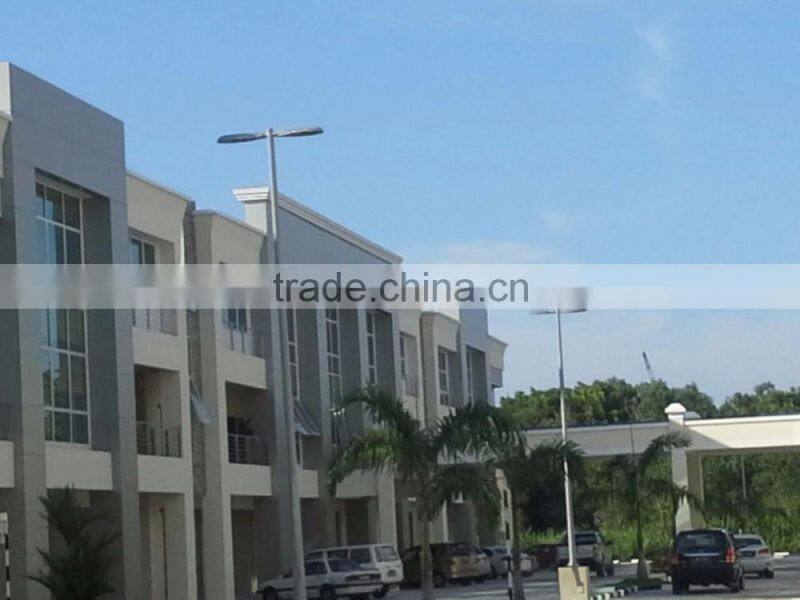

Applicable Places
OEM,Customized; 3 years warranty,10 years technical support;
Welcome overseas agents!
Phone:+86 131 532 77575 Skype: kaich grace

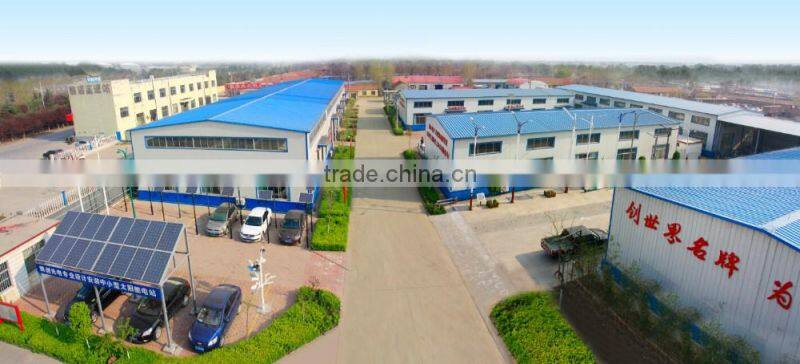

Prodcution workshops

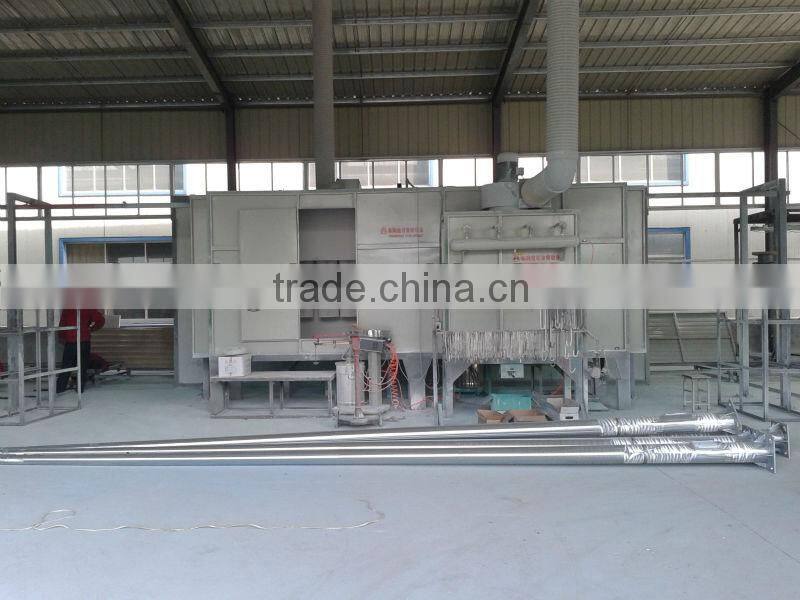

large spray painting room
