Specifications
waterproof terminal connector power connector1. IP68 waterproof rating
2. Max. Cable Diameter: 15mm
3. 30A, 500V

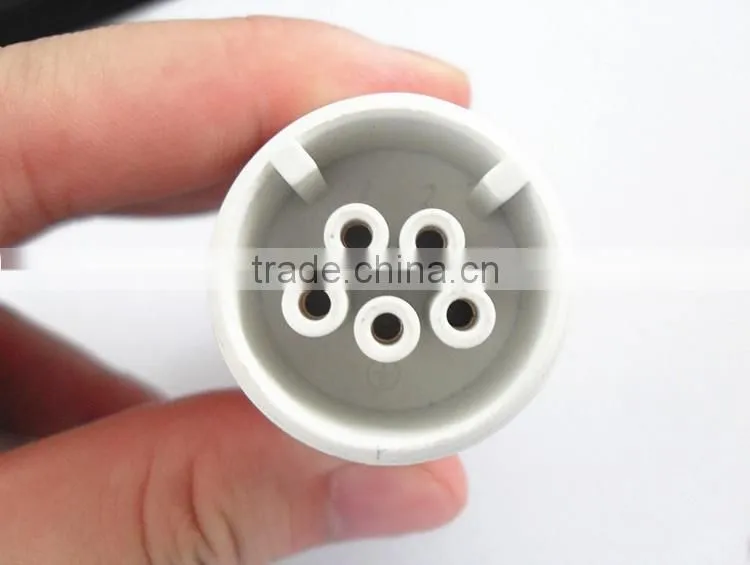

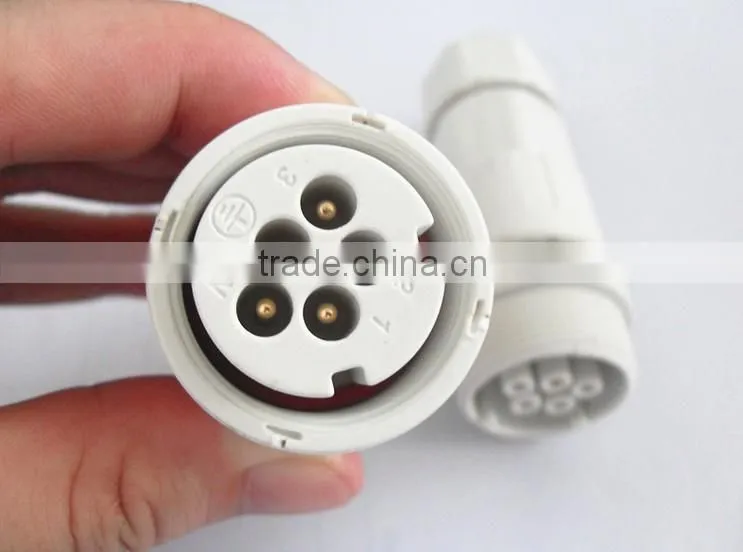

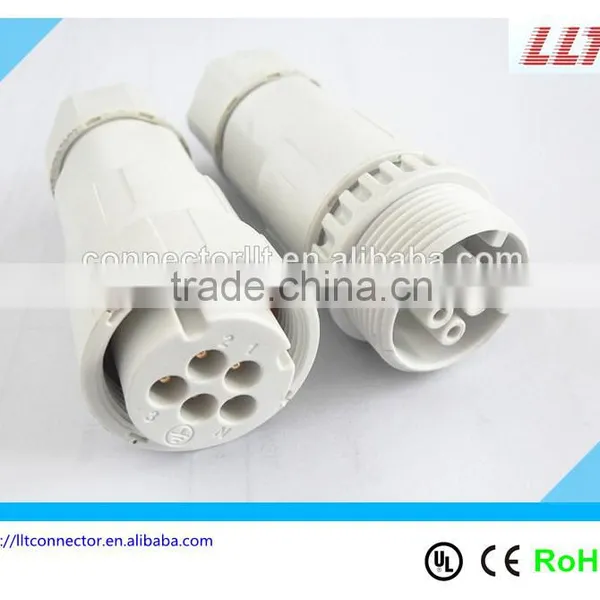

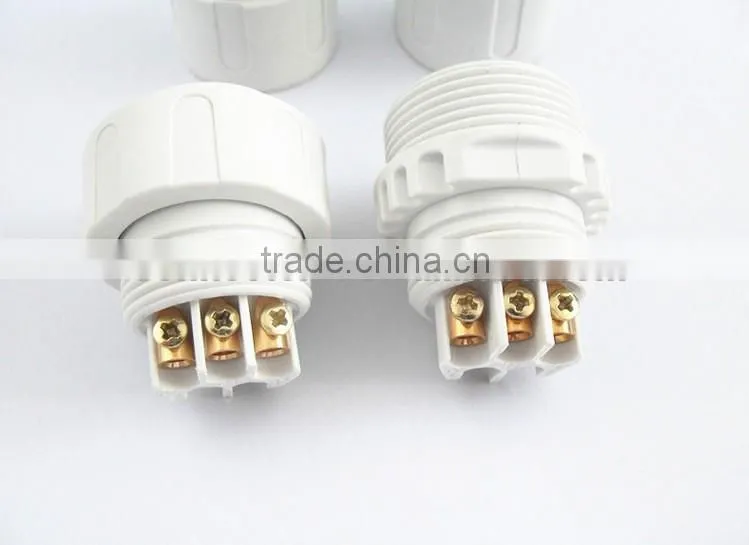

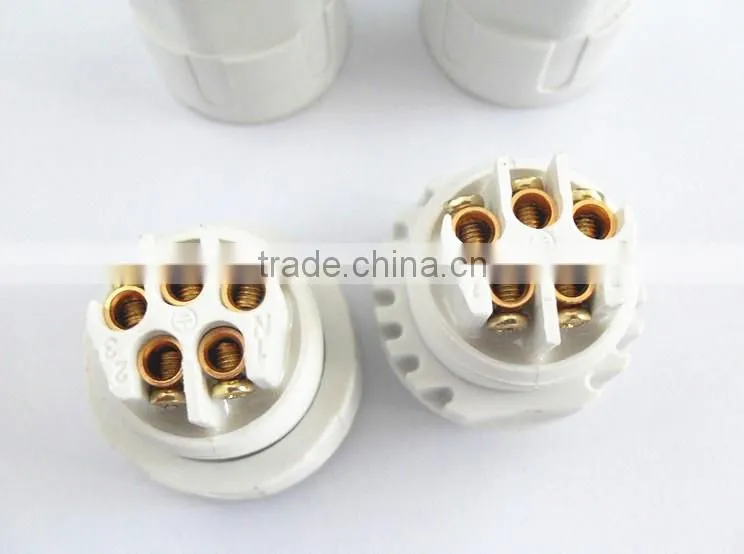

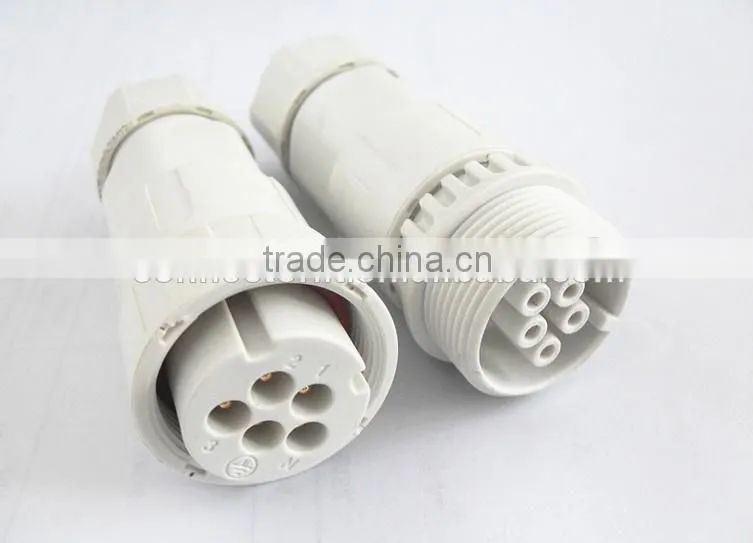

waterproof terminal connector with 5 screw connections power connector
* IP68 protection level
* Current rating: 30A
* Voltage rating: 500V
* Accepted Max. Cable OD: 15 mm
* Field installable, screw fixing connection
* CCC, CE,RoHS
* High quality with 12 months waranty
* Pin range: 2, 3, 4, 5
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide
you various solutions
* Application: our products are widely used in LED lighting, outdoor display, elctrical equipments,
automation machines, electrical vehicle and etc...
| waterproof terminal connector with 5 screw connections power connector | |||
| 1 | Model No. | LLT-M29CS05 | |
| 2 | Material | Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 30A |
| 6 | Voltage Rating | 500V | |
| 7 | Contact Resistance | <5mΩ | |
| 8 | Insulation Resistance | 1000MΩ at DC 500V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -45°C~+105°C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP68 | |
| 13 | Cable Max. Diameter | 15.0mm | |
| 14 | Pins Range | 2, 3,4,5 | |
| 15 | Certificate | CCC; CE; ROSH | |
High quality products with 12 months waranty, best after-sales service 6x24 hours
Packing: 1. plastic bag 2. carton 3. customer's requirement on packaging will be considered
Shipping: We could offer various shipping solutions for your choice, competive express freight such as DHL/ FedEx/ UPS...
As for Mass Orders, a quote of ocean shipping would be provided too if required.
If any questions on our products, pls feel free to let us to know anytime, you'll get the soonest response!
