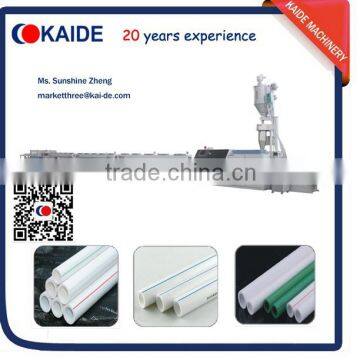

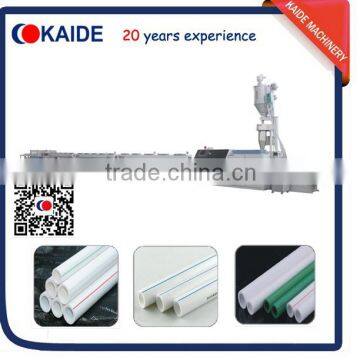

25m/min PPR/PPRC Water Pipe Extrusion Machine KAIDE

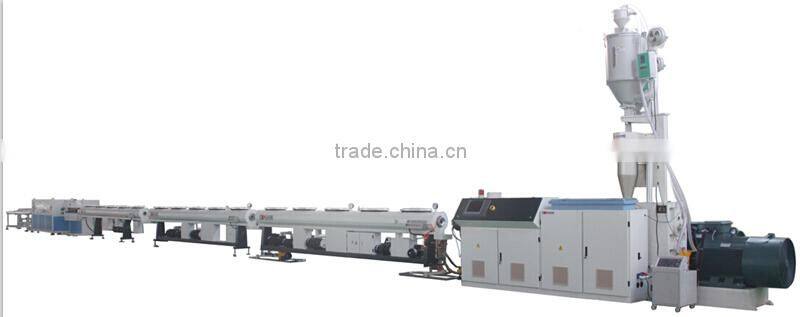

PPR Water Pipe Making Machine/PPR Pipe Production Line

KAIDE factory has focused on plastic pipe extrusion technology for more than 20 years, especially for high speed pipe line and multi-layer composite pipe line. This PPR pipe line technology has been further optimized based on our years experience, which speed can be up to 28m/min, with most advanced technology.

Technical Parameter of Pipe Production Line:

Features of Pipe Production Line

1) Extruder: high efficient five-section type screw, ensuring the rapid plasticizing dispersion effect, and realizing the  high speed production.

2) Gravimeter: precise control system of pipe weight per meter, to realize the constancy of pipe weight and line running according to set parameters.

The application of this sytem can shorten the start-up time and improve the produced pipe quality, and save raw material.

3) Die head: special designed spiral pressure-storage die head effectively overcomes the instantaneous fluctuation of extrusion pressure.

4) Vacuum calibrating & cooling tank: using high qulaity stainless steel; new designed cooling methos to achieve a better cooling effect.

5) Tractor: multi-group rooler clamping&belt haul-off machine; use imported frequency converter, the clamping force of any pitch can be adjusted freely, with high pulling speed and good stablility.

6) Control system: SIEMENS PLC control system
