PEXB pipe production line
- 200 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | Other, PEXB |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Shandong, China |
Brand Name: | KAIDE | Model Number: | SJ65,SJ80 | Voltage: | 380V 50HZ |
Power(W): | 72-122KW | Dimension(L*W*H): | 22000mm x 1500mm x 2500mm | Weight: | 10T |
Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1) silanes cross linked PEX-b pipe making
2)diameter16-32mm, speed:15m/min;25m/min
3)Siemens PLC control
4) CE/ISO
PEXB pipe production line
General Introduction
- Name :High Speed Silanes Cross-linking PEXB Pipe Production Line
- Manufactured Pipe Diameter:16-32mm,16-63mm
Technical Specification
Line Model | Screw Diameter | L/D | Production Scope | Production Speed | Nominal Power |
SJ-65 | 65mm | 30:1 | 16-32mm | 15m/min | 72KW |
SJ-80 | 80mm | 30:1 | 16-63mm | 25m/min | 122KW |
Feature
- 1 )The high speed PEXB extruder adopts special structure cross-linking reaction type screw, to realize the stability and good plasticizing quality of high speed extrusion
- 2 )Die head:The special designed pressure storage reaction type die head has overcome the stress orientation of polymer moleculat chain during the pipe formatting,realizing the constant pressure extrusion of the pipe
- 3 )Vacuum calibrators are special designed multi sheet water bath type,with our company independent intellectual property rights,which realize the even and effective calibrating & cooling effects
- 4 )Haul off machine: adopts mulit-group roller canmping type belt haul off machine,
- 5 )Siemens PLC Control System ensures the high speed synchronous control and reliable operating of the whole production line

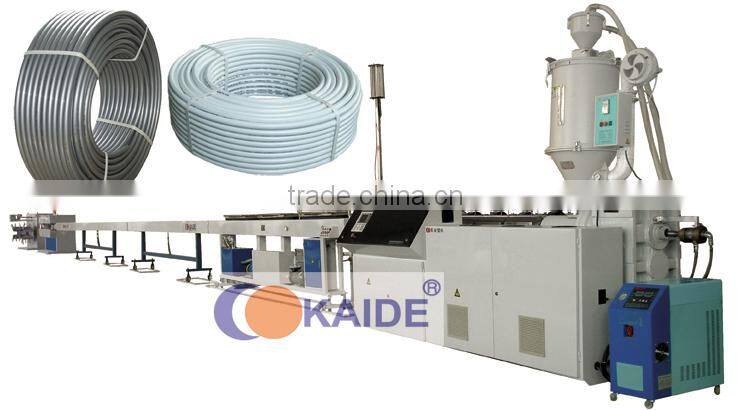

PEXB Pipe Making Mahcine Photo
Factory Workshop
Shippment
Chinaplas Exhibition
Our company is a factory special in manufacturing Plasric Pipe Extrusion Machine,especially high speed plastic pipe making machine and composite mutilayer plastic pipe making machine.
KAIDE Plastics Pipe Making Machine List: | |
PPR/PERT pipe making machine | PEXa pipe making machine |
Glass fiber PPR pipe making machine | PEXb pipe making machine |
HDPE pipe making machine | PB pipe making machine |
PA pipe making machine | EVOH pipe making machine |
Al-plastic pipe making machine | PVC/PA/PE corrugated pipe making machine |
Drip irrigation pipe making machine | PVC steel reinforced pipe making machine |
