Plastic Pipe Extrusion Machine for PERT Heating Pipe 35m/min

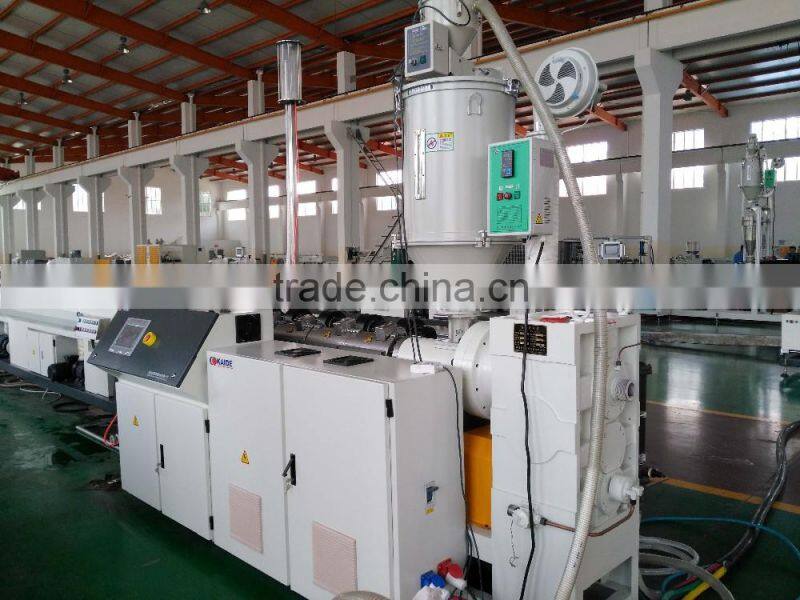

PERT floor heating pipe extrusion machine

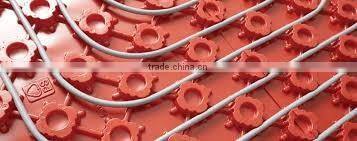

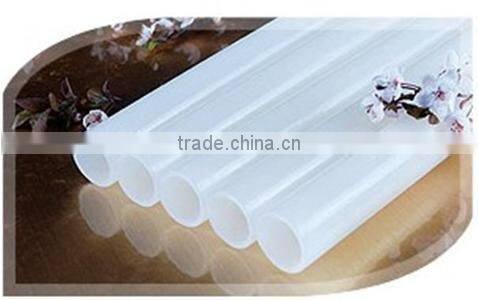

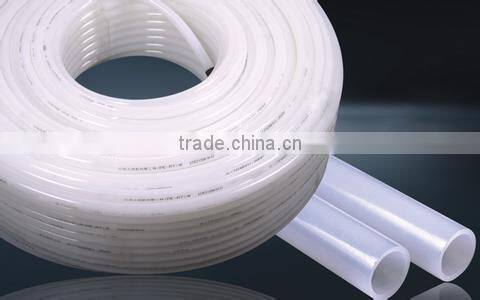

This plastic pipe extrusion line is used to produce PERT pipes. PERT pipe, produced by the raised temperature resistant polythylene of raw material, is the most common under floor heating pipe at present.

Pipe inner wall is smooth, it can reduce the blocking phenomena by the residuum in the water, has its own advantages of good flexibility, easy to install and carry, resistance to low temperature and frost crack and service life up to 50 years.

The prodution speed for our PERT pipe line can reach up to more than 40m/min.

Main Features

1) High efficient five section type screw and barrel, to ensure fast plastizing & dispersion effect.

2) Gravimetric material feeding system is to control material feeding according to pipe size and line speed, to get high qualified pipe with constant weight per meter. It's also have other benefits, such as shourtening start-up time, saving raw material, simplifying operation.

3) Spiral pressure-storage die head effectively overcomes the instantaneous fluctuation of extrusion pressure, realizing high speed extrusion with stable pressure.

4) Vacuum and calibrating system is further optimized based on our previsou high speed pipe extrusion line technology; with better structure the pipe calibrating and cooling has become more effective.

5)  Servo traversing type winding machine, to perfect match up line speed, suitable for high speed winding up tp 50m/min.

Material: 40Cr/3Cr13

Features: Special designed spiral pressure-storage die head, which effectively overcome the problem of extrusion pressure instantaneous fluctuation;

Realizing high speed and constant pressure extrusion of PERT pipes;

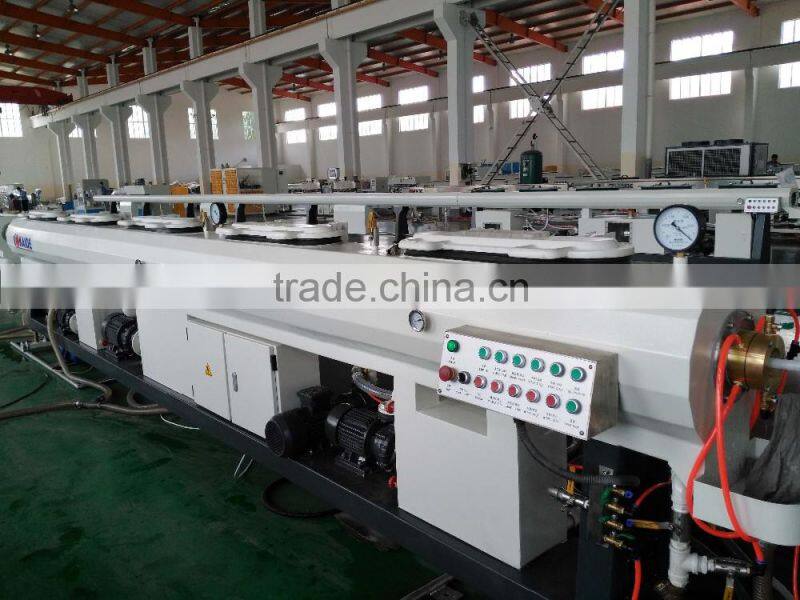

Vacuum & Cooling Tanks

Material: 304# stainless steel
Calibrator: multi-sheet type cablirator for high speed PERT
Features: Special designed calibrator for high speed PERT pipe production, with national invention patents; High quality stainless steel material;

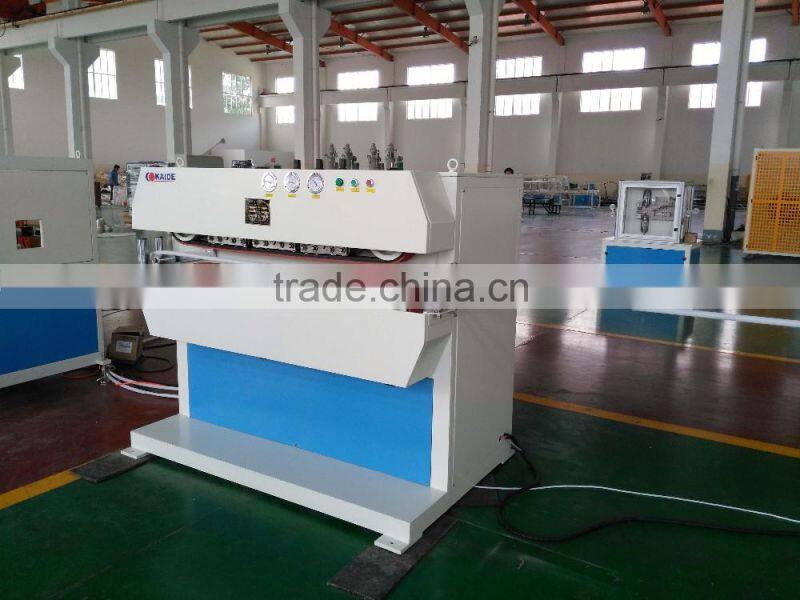

Belt Hauling Machine

Hauling machine: High wear resistant belt hauling
Feature: Multi-group rollers clamping structure, which completely overcomes the vibration $ slip problem of tradition mode, ensuring high speed and stable pipe hauling.

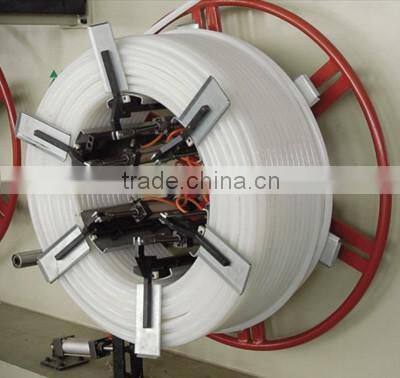

PERT Pipe Winding Machine

Traversing type: servo motor driven type traversing
Features: PLC controller to easy operate; servo traversing pipe winding with nice finished coils;
