Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > PA Nylon Pipe Extruding Machine 6-20mm
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Production Line
Pipe Material:
Other, PA
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Pipe Production Line
Pipe Material
Other, PA
Application
Energy Supply Pipe
Production Capacity
25m/min
Place of Origin
Shandong, China
Brand Name
KAIDE
Model Number
PA
Voltage
380V 50HZ 3 PHASE
Power(W)
97KW
Certification
CE,ISO
Warranty
1 YEAR
Specifications
1.PA11 automobile pipe making machinery2.Production Scope:6mm-16mm
3.Producing Speed:25m/min
4.CE/ISO
- PA nylon pipe extruding machine 6-20mm PA nylon pipe extruding machine 6-20mm
- PA11 automobile pipe making machinery
- Production Scope:6mm-16mm
- Producing Speed:25m/min
- CE/ISO

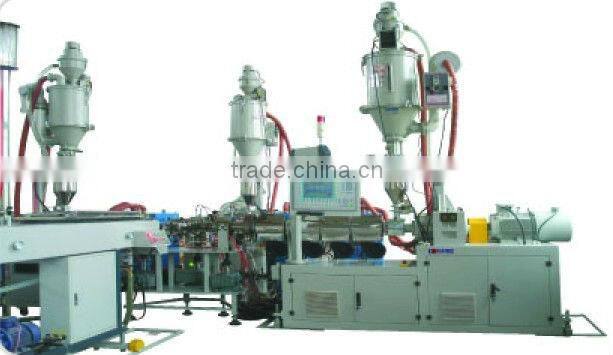

1.PA PIPE PRODUCTION LINE
2.TECHNICAL DATA
Line Model | Screw Diameter | L/D | Production scope | Production Speed | Total Power | Actual Power |
SJPA-45 | Φ 45/25mm | 28/25:1 | Φ6-20mm | 25m/min | 97KW | 54KW |
3.THE MACHINE SET COMPOSTION
- Outer & inner layer Extruder
- Hot glue Extruder
- Auto Loader
- Hot Air Dryer
- Measuring feeding System
- PA material dehumidifier
- PA high temperature melt measuring pump
- Three-layer composite PA Die head
- Nylon High speed Calibrating mandrel
- Vacuum calibrating system
- Cooling Flume
- Inter stress remove system
- Haul-off Machine
- Cutting Machine
- Double working position coiler
- PLC computer system

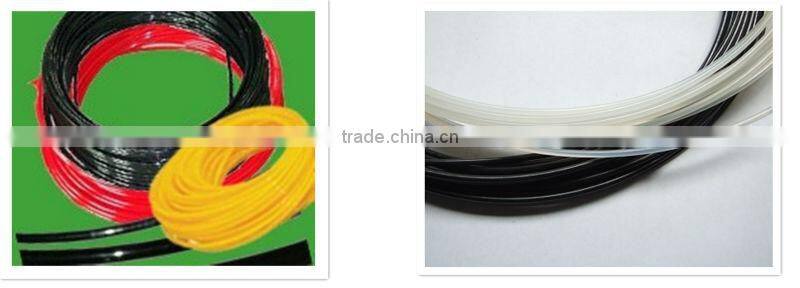

4.EXTRUDED PA PIPE
5.FACTORY WORKSHOP
