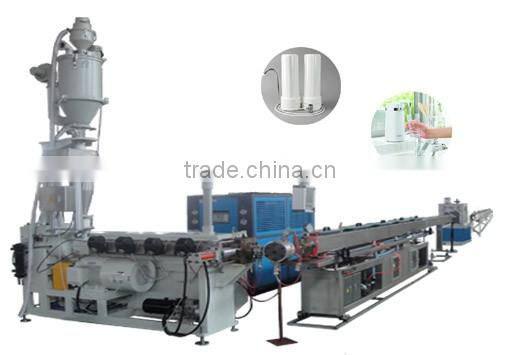

PE water tube extrusion line
LDPE purify water tube production line, is used to produce purifying water pipe, which adopts the most advanced technology,such as,Siemens PLC synchronous control system, Hydraulic screen changer, German Coax Vacuum valve to control the vacuum degree.
LLDPE water filter tube production line price
Main Features of LDPE Water tube Extrusion Machine
1)Following technologies & units were applied in this RO water tube production machine
(1) Spiral pressure storage die head effectively overcomes the instaneous fluctuation of extrusion pressure, realizing high speed and constant pressure extrusion(2) High precise weight per meter control system
(3) High precise pipe moulds
(4) Brushed stainless steel vacuum tanks
(5) Servo traversing pipe coiler
(6) High speed and stable haul-off machine
(7)Synchronous advanced control system
(8) Laser diameter measuring gauge to control the pipe diameter to get high qualified tube
Vacumm tank of PE pipe machine
Name: Vacuum Calibration Tank
Brand: KAIDE
Original: CHINA
Materials: 304# Brushed stainless steel
Model:SGZL-32
Haul-off machine of PE pipe machine
Name: Haul-off machine
Brand: KAIDE
Original: CHINA
Haul-offf speed up to 50m/min, specially designed for small size production
Automatic coiler of PE pipe making machine
Name: Pipe Coiler
Brand: KAIDE
Original:CHINA
This coiler is controlled by Simens PLC Control system, with servo traversing unit, for final good looks coils .
Name: Final produced pipe
Brand: customer's brand
Original: all of the world
Size:6.4*1.1mm,9.6*1.5mm
Flat Drip Irrigation Pipe Machine
91.8% Response Rate

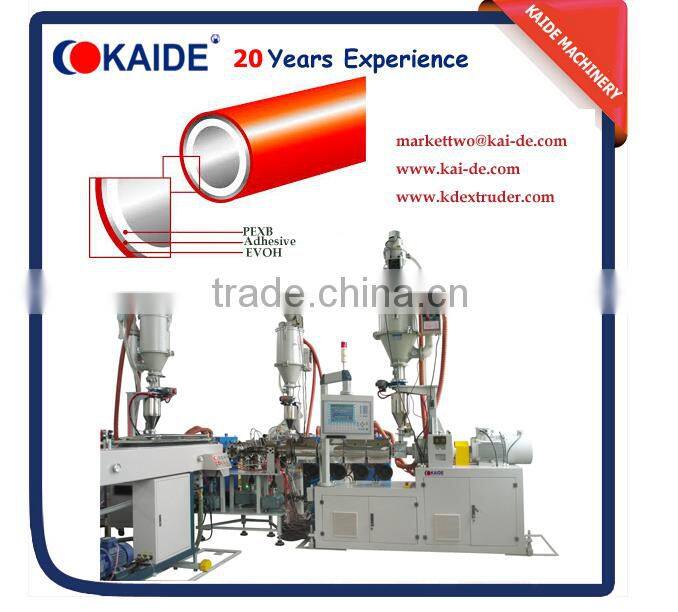

EVOH pipe making machine
