Specifications
Crimped wire mesh1.Wire dia.:0.5-4.8mm
2.Aperture:0.1-2mm
3.Weight:1.9-20kg/m2
4.Best service,fast delivery
Hot Sale Double Crimped Wire Mesh for Screen(Factory)

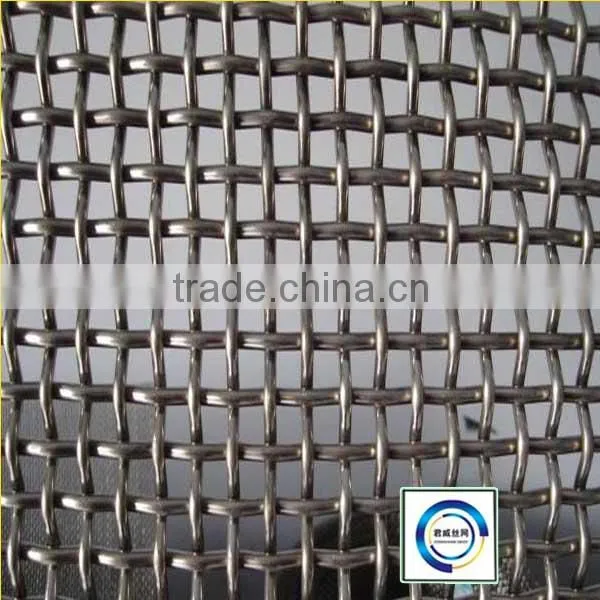

Description of Crimped wire mesh(supplier)/Crimped wire cloth
Crimped wire cloth is identified from a wire crimped only in the points of intersection, before weaving. Crimped wire cloth is only made on request and the wire used may be round or square.
Crimped wire mesh Features
Crimped wire cloth offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anticorrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
Crimped wire mesh parameters:
Aperture width: 10 - 120 mm in the case of multi-notch meshes and
4 - 40 mm in the case of single-notch meshes.
Wire diameter: 1.0 - 5.5 mm
Mesh width: Up to 2000 mm
Crimped wire mesh is supplied in the form of sheets.
Specification of Crimped wire mesh(supplier)/Crimped wire cloth
| Wire Gauge SWG |
Wire Diameter mm |
Mesh/Inch | Aperture mm |
Weight kg/m2 |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
Any need just contact with me freely.
