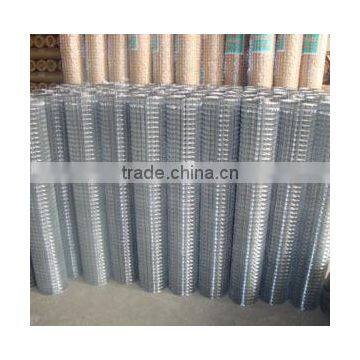

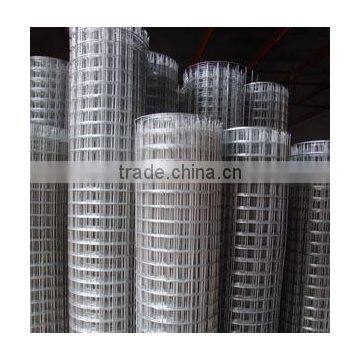

Welded Wire Mesh

Welded Wire Mesh

Opening

Wire Diameter

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mmx 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mmx 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mmx 19.1mm

16,17,18,19,20,21

1"x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

2" x 3"

50mm x 75mm

2.0mm_I2.5mm,1.65mm

3" x 3"

75mm x 756mm

2.67mm,2.41 mm,2.11 mm, 1.83mm, 1.65mm

2" x 4"

50mm x 100mm

2_11mm,2_5mm

4" x 4"

100mmx 100mm

2.0mm_I2.5mm

Technical Note:

1.Standard roll length: 30m;width: 0.5m to 1.8m

2.Special sizes available at request

3.Packing: in waterproof paper in rolls. Custom packing available at request.

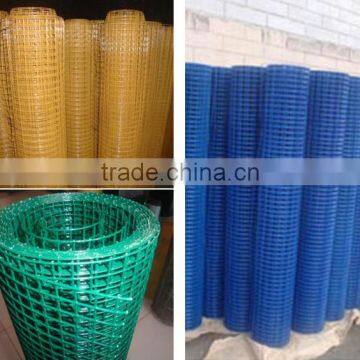

PVC Coated Welded Mesh

Opening

Wire Diameter

In inch

In metric unit(mm)

1/2"x 1/2"

12.7mmx 12.7mm

16,17,18,19,20,21

3/4" x 3/4"

19mm x 19mm

16,17,18,19,20,21

1^Mx 1"

25.4mm x 25.4mm

15,16,17,18,19,20

Technical Note:

1.Standard roll length: 30m;width:  0.5m to 1.2m

2.PVC Thinkness:0.4mm-0.6mm

3.Special sizes available at request

4.Packing: in waterproof paper in  rolls. Custom packing available at request.
