Help CenterChicken Gabion Wire Mesh
US$ 3 - 37
MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Joinwe
Material:
Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
TianjinXingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chicken Wire Mesh/ Dog CagesUS$ 5 - 30MOQ: 100 Rolls -
Chicken Wire Mesh SpecificationsUS$ 5 - 30MOQ: 100 Rolls
-
Galvanized Iron Wire Material Hexagonal MeshUS$ 15 - 50MOQ: 500 Rolls
-
Galvanized ( Zinc Coated ) Hexagonal Wire NettingUS$ 15 - 50MOQ: 500 Rolls
-
PVC Coated or Galvanized Hexagonal Wire MeshUS$ 15 - 50MOQ: 500 Rolls
Place of Origin
Hebei, China
Brand Name
Joinwe
Material
Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire
Type
Wire Cloth
Application
Gabions
Hole Shape
Other, Hexagonal, Hexagonal,Square,Rectangle
Aperture
60*80,80*100,100*120
Wire Gauge
2.0mm-4.0mm
Model Number
Gabion basket
Specifications
Chicken Gabion Mesh2.Wire dia.2.0-4.0mm
3.Mesh:60x80,80x100,100x120mm.etc
4.Application:Gabions
Chicken Gabion Wire Mesh
Features:
- Economic.
- Just fill the stone into the Gabions and seal it.
- Simple installation.
- No special technology needed.Weather proof under natural destroy, corrosion resistant.
- No collapse even under big scope of deforming.
- Sludge in the stones is good for plant growing.
- Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic.
- Less transport freight. It can be folded together for transport and further installation.
Gabion Mesh applications
- Control and guide of water or flood
- Flood bank or guiding bank
- Preventing of rock breaking
- Bridge Protection
- Water and soil protection
- Coast protection
- Seaport engineering
- Strengthening structure of soil
- Protection of road
WIRE THICKNESS SPECS
Characteristics |
Metallic coated |
PVC coated |
Metallic coated |
PVC coated |
Mesh type |
8*10cm |
6*8cm |
||
Mesh openings |
83mm x 114mm 8 x 10 |
83mm x 114mm 8 x 10 |
64mm x 83mm 6x8 |
64mm x 83mm 6x8 |
Mesh wire |
2.7mm (0.106 in.) |
3.05mm( 0.120 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
Selvage wire |
3.4mm (0.134 in.) |
3.8mm (0.150 in.) |
2.7mm (0.105 in.) |
2.7mm (0.105 in.) |
Lacing wire |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm(0.087 in.) |
Size of gabion mesh and size of gabion mattress
| Gabion Box | |||
| Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter (PVC Coated)/ Inner/Outside(mm) |
Strands |
| 60X80 | f2.0-2.8 | f2.0/3.0-2.5/3.5 | 3 |
| 80X100 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
| 80X120 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
| 100X120 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3 |
| 100X150 | f2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120X150 | f2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Size | Notes | tolerance | |||||
| length(m) | width(m) | high(m) | (unit) | volume(m3) | +/-3% | ||
| 2.00 | 1.00 | 0.30 | 1 | 0.60 | |||
| 3.00 | 1.00 | 0.30 | 2 | 0.90 | |||
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | +/-5% | ||
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |||
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |||
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |||
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | +/-5% | ||
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |||
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |||
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |||
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |||
Main Pictures:

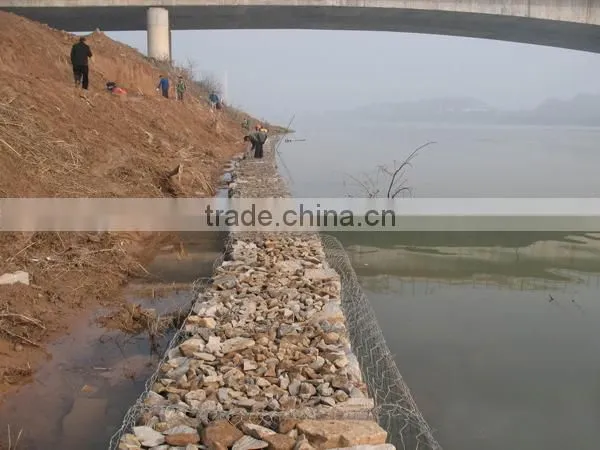

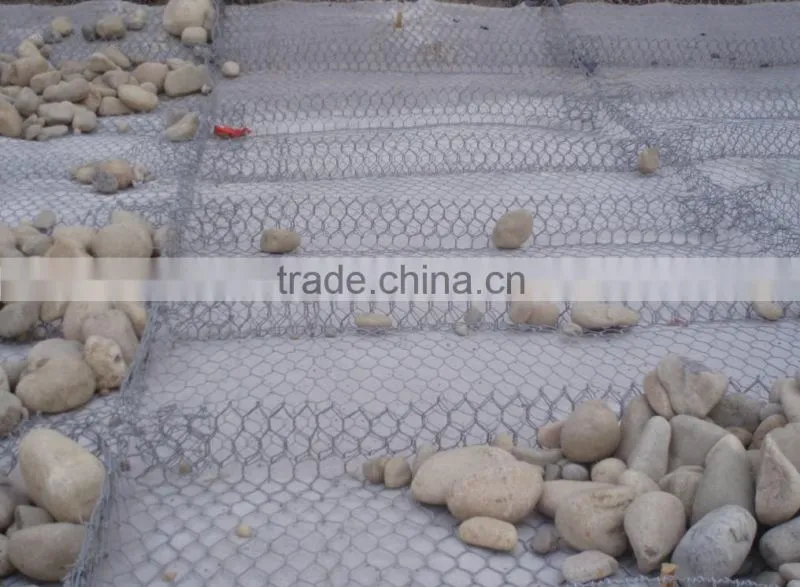

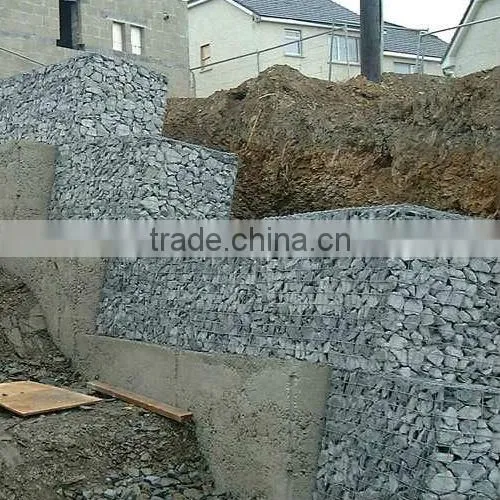

Gabion Basket, Gabion Box, Stone Gabion Box

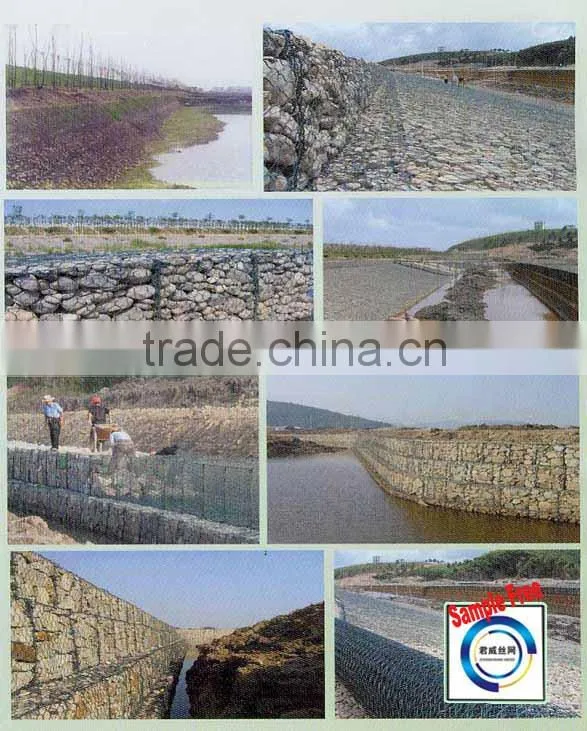

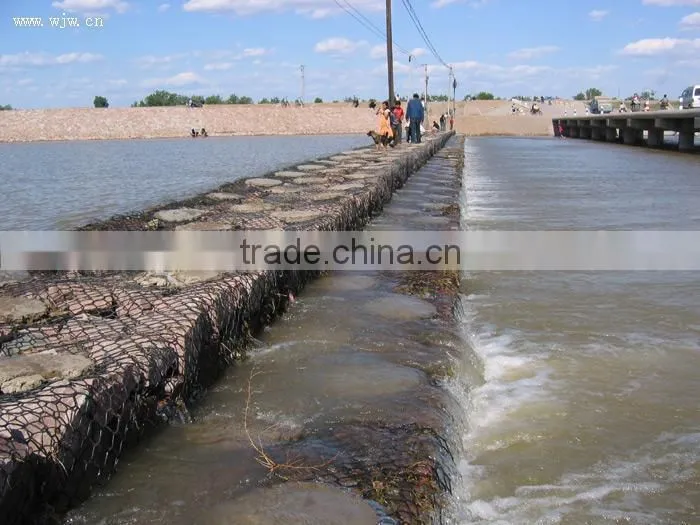

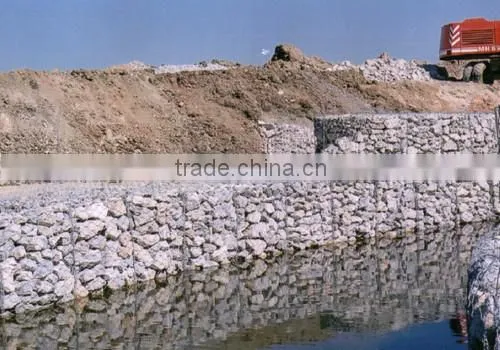

Use Way for Gabion Mesh Box
Very glad to receive ur enquiry pls contact us freely.
