Specifications
Stainless Steel Gabion2.Wire dia.2.0-4.0mm
3.Mesh:60x80,80x100,100x120mm.etc
4.Application:Gabions
Stainless Steel Gabion
Gabion Box Features
- Economic.
- Just fill the stone into the Gabions and seal it.
- Simple installation.
- No special technology needed.Weather proof under natural destroy, corrosion resistant.
- No collapse even under big scope of deforming.
- Sludge in the stones is good for plant growing.
- Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic.
- Less transport freight. It can be folded together for transport and further installation.
Gabion Box applications
- Control and guide of water or flood
- Flood bank or guiding bank
- Preventing of rock breaking
- Bridge Protection
- Water and soil protection
- Coast protection
- Seaport engineering
- Strengthening structure of soil
- Protection of road
WIRE THICKNESS SPECS
Characteristics | Metallic coated | PVC coated | Metallic coated | PVC coated |
Mesh type | 8*10cm | 6*8cm | ||
Mesh openings | 83mm x 114mm 8 x 10 | 83mm x 114mm 8 x 10 | 64mm x 83mm 6x8 | 64mm x 83mm 6x8 |
Mesh wire | 2.7mm (0.106 in.) | 3.05mm( 0.120 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) |
Selvage wire | 3.4mm (0.134 in.) | 3.8mm (0.150 in.) | 2.7mm (0.105 in.) | 2.7mm (0.105 in.) |
Lacing wire | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm(0.087 in.) |
Size of gabion box and size of gabion mattress
Gabion Box | |||
Opening (mm) | Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coated)/ Inner/Outside(mm) | Strands |
60X80 | f2.0-2.8 | f2.0/3.0-2.5/3.5 | 3 |
80X100 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
80X120 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
100X120 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3 |
100X150 | f2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
120X150 | f2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Size | Notes | tolerance | |||||
| length(m) | width(m) | high(m) | (unit) | volume(m3) | +/-3% | ||
| 2.00 | 1.00 | 0.30 | 1 | 0.60 | |||
| 3.00 | 1.00 | 0.30 | 2 | 0.90 | |||
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | +/-5% | ||
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |||
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |||
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |||
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | +/-5% | ||
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |||
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |||
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |||
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |||

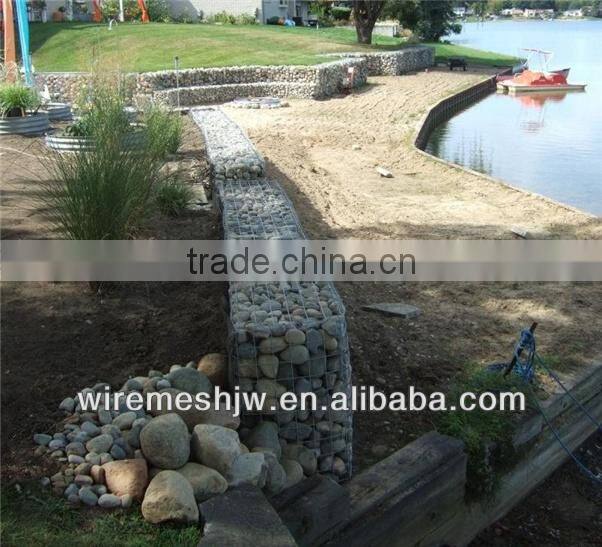

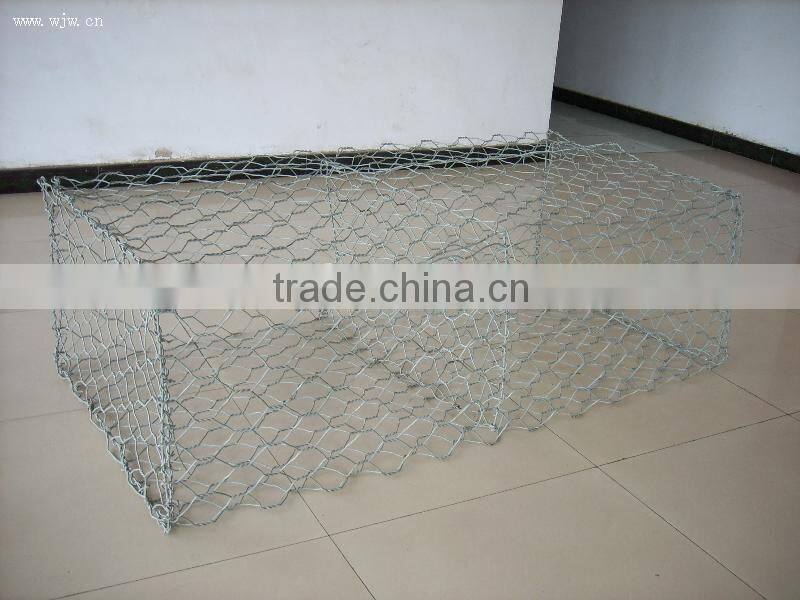

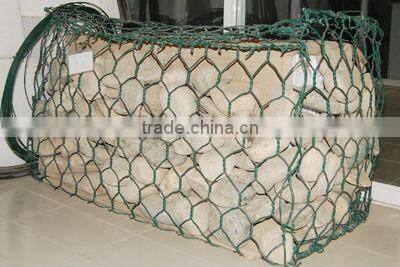

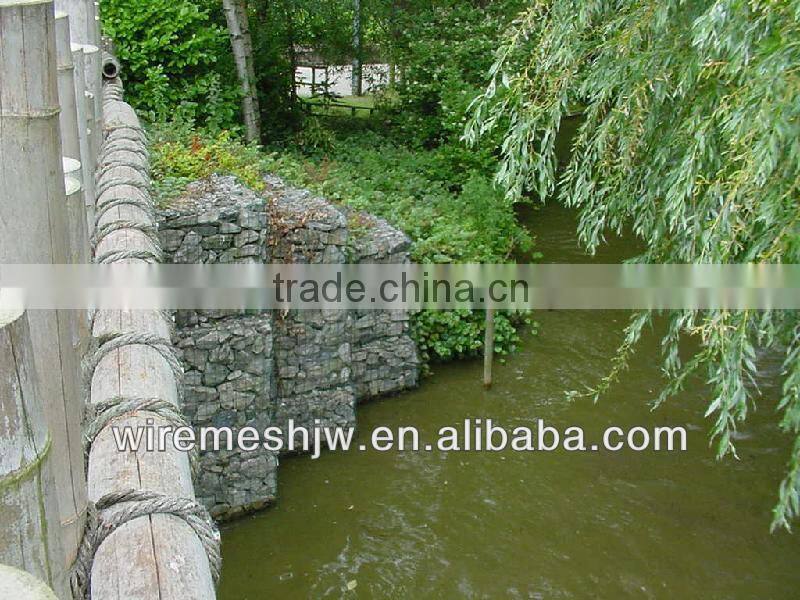

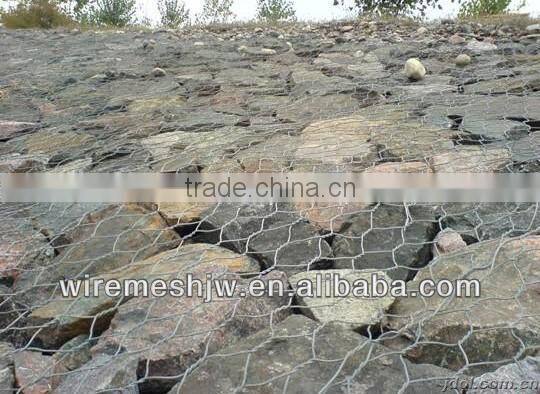

Main Pictures:
Gabion Basket, Gabion, Stone Gabion Box
Use Way for Gabion Mesh Box
Very glad to receive ur enquiry pls contact us freely.
