Specifications
Gabion Wall Construction1.Galvanized&PVC Coated
2.Wire dia.2.0-4.0mm
3.Mesh:60x80,
Gabion Wall Construction From Anping Gabion Mesh Factory
All tests on wire must be performed prior to manufacturing the mesh. All wire should comply with ASTM A975-
97, style 3 coating, Galfan and PVC coated steel wire. Wire used for the manufacture of Gabions and the
lacing wire, shall have a maximum tensile strength of 75 000 psi (515 MPa) as per ASTM A856-03, soft temper
steel.
Gabion box:
Hexagonal Wire Netting Gabions are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

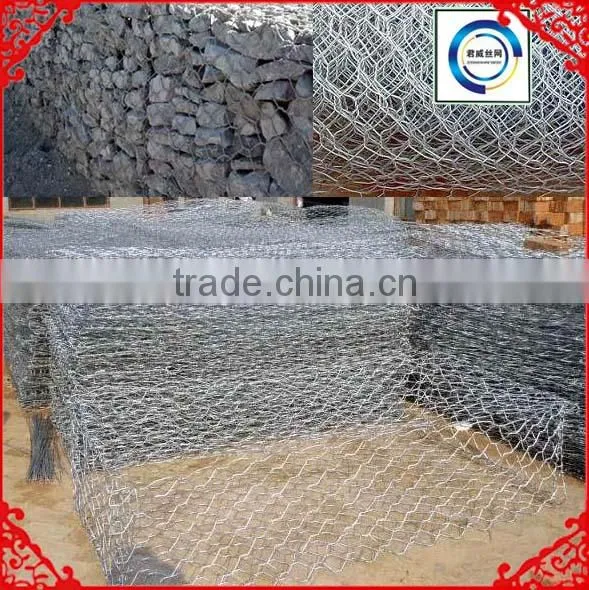

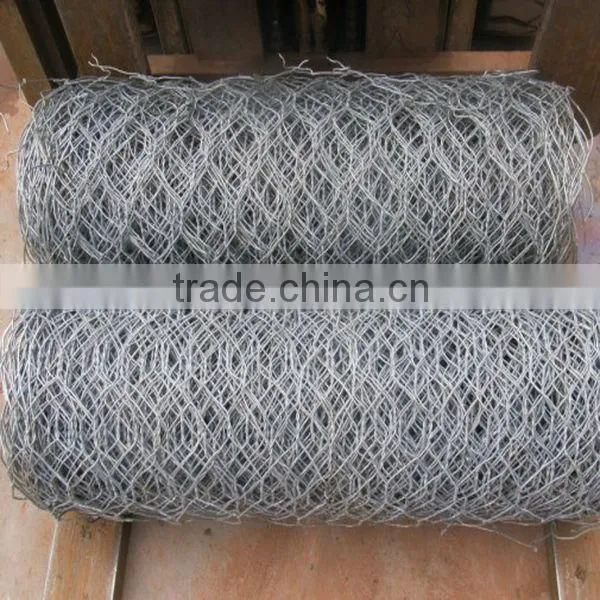

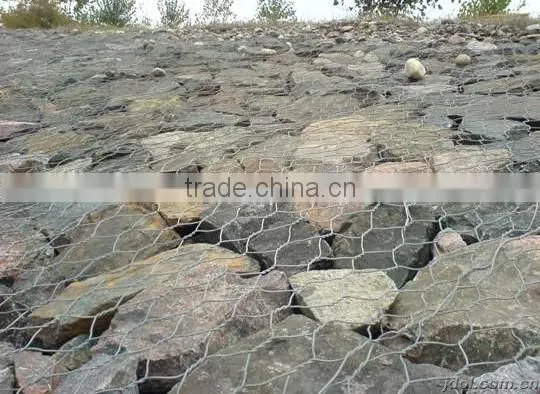

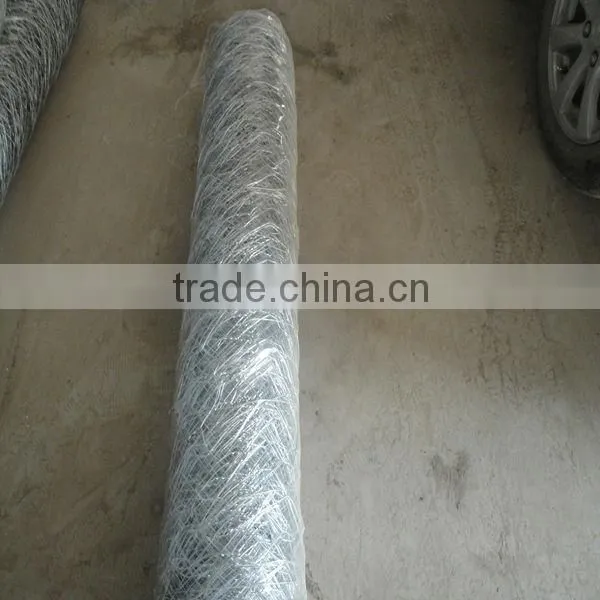

Main Pictures:
Gbion boxes Features:
1.Economic:Just fill the stone into the gabions and seal it.Simple installation. No special technology needed.
2.Strong:weather proof under natural destroy, corrosion resistant.No collapse even under big scope of deforming.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
3.Protection:good permeation can prevent the damage by hydrostatic.
4.Easy install:less transport freight. It can be folded together for transport and further installation.
5.attractive and durable : It can support be quite heavy stone.
6.effect:Gabion colour can coordinate the around enviroment
Gabion boxes applications:
Control and guide of water or flood Flood bank or guiding bank Preventing of rock breakingWater and soil protection bridge protection strengthening structure of soil Protection engineering of seaside area.
Gabion boxes Specification:
Opening |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter (PVC Coate)/ Inner/Outside(mm) |
Strands |
60X80 |
f2.0-2.8 |
f2.0/3.0-2.5/3.5 |
3 |
80X100 |
f2.0-3.2 |
f2.0/3.0-2.8/3.8 |
3 |
80X120 |
f2.0-3.2 |
f2.0/3.0-2.8/3.8 |
3 |
100X120 |
f2.0-3.4 |
f2.0/3.0-2.8/3.8 |
3 |
100X150 |
f2.0-3.4 |
f2.0/3.0-2.8/3.8 |
3 |
120X150 |
f2.0-4.0 |
f2.0/3.0-3.0/4.0 |
3 |
Very glad to receive ur enquiry pls contact us freely.
