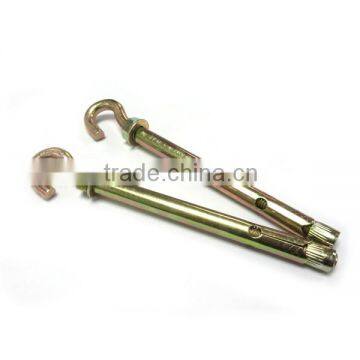

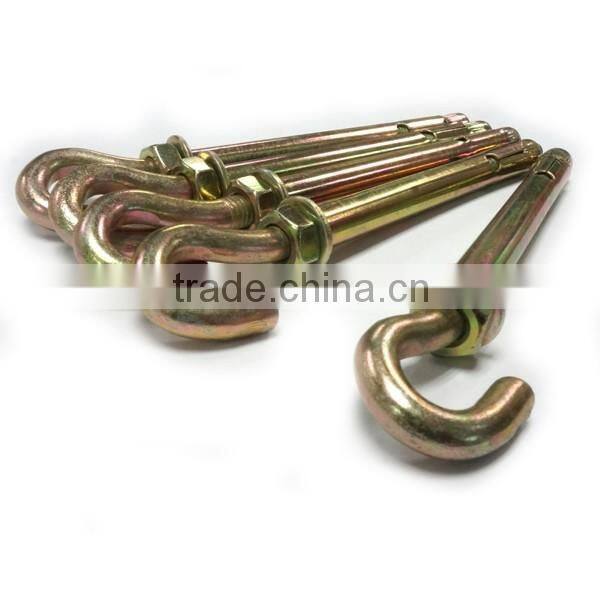

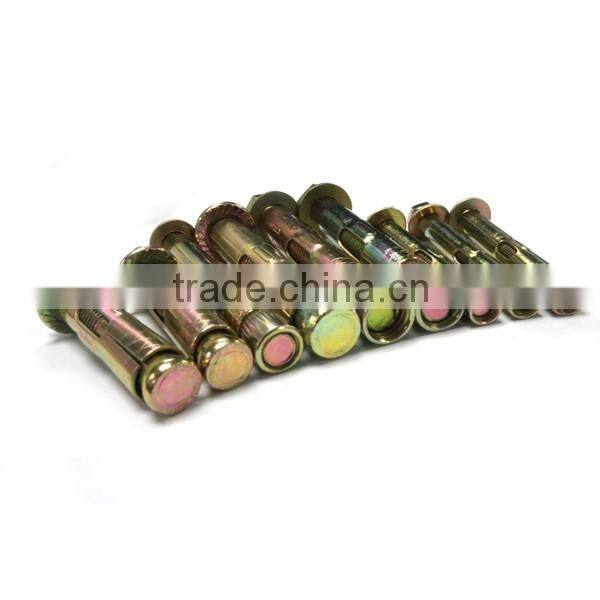

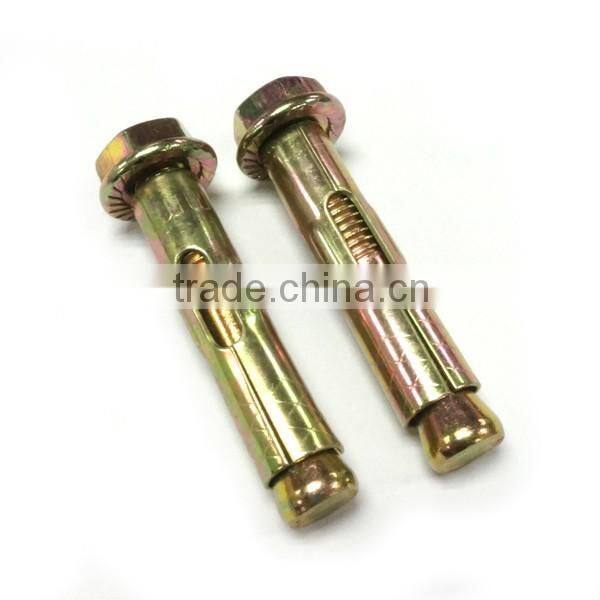

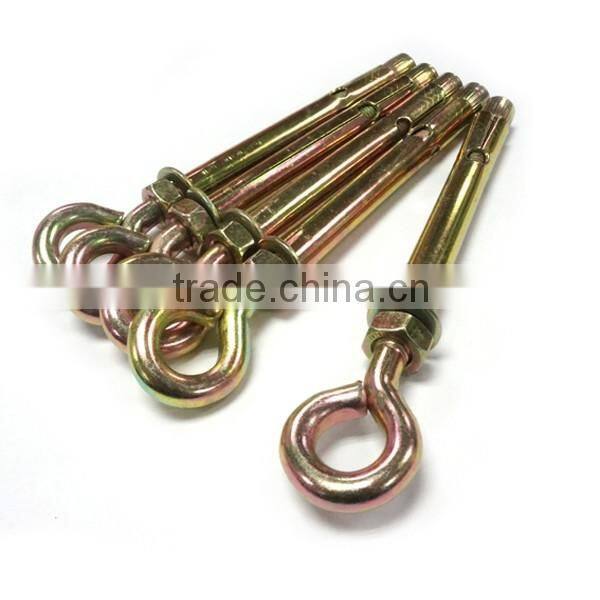

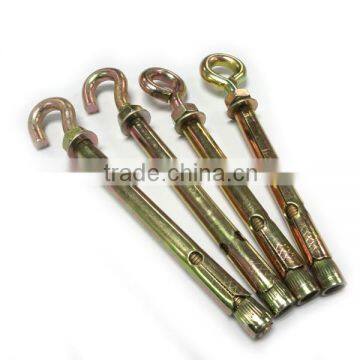

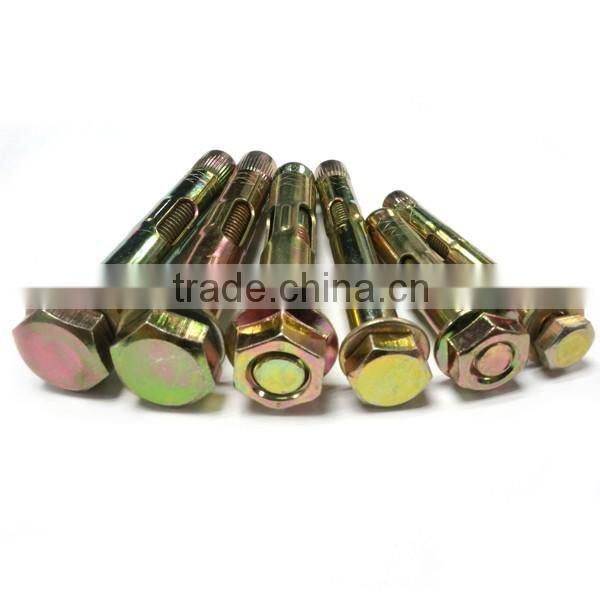

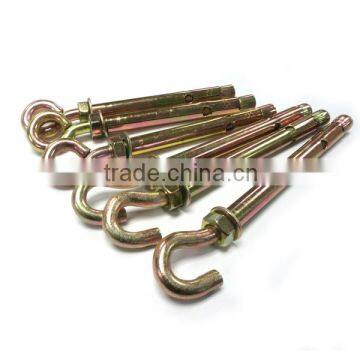

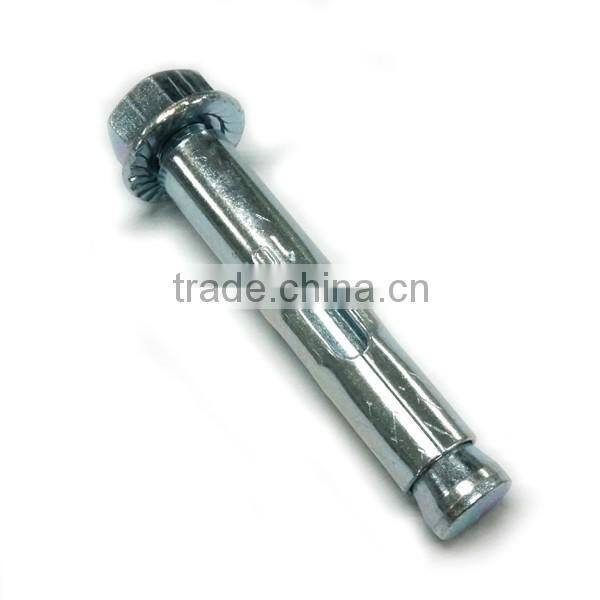

Sleeve Anchor/Expansion Bolt/Concrete Anchor
US$ 0.1 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Fixingmore
Model Number:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wedge Anchor Expansion Bolt/through BoltUS$ 0.1 - 1MOQ: 1000 Pieces -
Wedge Anchor/concrete Through Bolt/hilti Anchor BoltUS$ 0.1 - 1MOQ: 1000 Pieces
-
Pollution-free Steel BolT Wedge AnchorUS$ 0.1 - 1MOQ: 1000 Pieces
-
Zinc Plated ANSI Wedge Anchor& Through Bolt Made in China CixiUS$ 0.1 - 1MOQ: 1000 Pieces
-
Quick Bolt Anchor M12x80 M12x110 M12x 125 M12x 165 M12x 200 M12x 240 M12x 300US$ 0.1 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Fixingmore
Model Number
OEM
Type
Sleeve Anchor
Material
Steel
Diameter
M8-M20 (5/16" to 3/4")
Length
40mm - 150mm (1-13/16" to 9")
Capacity
2.9-8.7KN. (300-2375LBS.)
Standard
Other, DIN, ANSI,ASTM, JIS, GB,etc
Base Material
Uncracked Concrete
Hollow-core Concrete Slabs
Natural Stone
Light Weight Concrete
Solid Brick/Masonry
Product Advantages
1. ISO9001:2000 Certified ,CE, GS
2. Quality Control inspection Before Shipment
3. Appearance: Bright neat body, without any burrs
4. Tolerances: Precision Tolerances to Customer Specification
5. Non-standard/ OEM/ODM/customized service provided
Specifications Model
A. METRIC
| CODE | SIZE | THREAD DIA. | LENGTH | MINIMUM EMB. | TENSIONS(KN.)** |
| SAH08045 | M8 | 6mm | 45mm | 35mm | 2.9 |
| SAH08060 | M8 | 60mm | 35mm | 2.9 | |
| SAH08070 | M8 | 70mm | 35mm | 2.9 | |
| SAH08085 | M8 | 85mm | 35mm | 2.9 | |
| SAH08090 | M8 | 90mm | 35mm | 2.9 | |
| SAH10045 | M10 | 8mm | 45mm | 35mm | 5.2 |
| SAH10055 | M10 | 55mm | 40mm | 5.2 | |
| SAH10075 | M10 | 75mm | 45mm | 5.2 | |
| SAH10080 | M10 | 80mm | 45mm | 5.2 | |
| SAH10100 | M10 | 100mm | 45mm | 5.2 | |
| SAH12065 | M12 | 10mm | 65mm | 50mm | 7.3 |
| SAH12080 | M12 | 80mm | 50mm | 7.3 | |
| SAH12100 | M12 | 100mm | 50mm | 7.3 | |
| SAH16075 | M16 | 12mm | 75mm | 60mm | 8.7 |
| SAH16110 | M16 | 110mm | 60mm | 8.7 |
B. I NCH
| CODE | SIZE | DRILL DIA. | ANCHOR LEN. | MINIMUM EMB. | TENSION(LBS.)** |
| SAH141 | 1/4" x 1" | 1/4" | 1-1/4" | 7/8" | 300 |
| SAH14134 | 1/4" x 1-3/4" | 1/4" | 2" | 1-1/4" | 395 |
| SAH143 | 1/4" x 3" | 1/4" | 3-1/4" | 1-1/4" | 395 |
| SAH516134 | 5/16" x 1-3/4" | 5/16" | 2-1/16" | 1-1/2" | 635 |
| SAH516212 | 5/16" x 2-1/2" | 5/16" | 2-13/16" | 1-1/2" | 635 |
| SAH516312 | 5/16" x 3-1/2" | 5/16" | 3-13/16" | 1-1/2" | 635 |
| SAH38178 | 3/8" x 1-7/8" | 3/8" | 2-1/4" | 1-1/4" | 1000 |
| SAH38214 | 3/8" x 2-1/4" | 3/8" | 2-5/8" | 2" | 1145 |
| SAH383 | 3/8" x 3" | 3/8" | 3-3/8" | 2" | 1145 |
| SAH38312 | 3/8" x 3-1/2" | 3/8" | 3-7/8" | 2" | 1145 |
| SAH384 | 3/8" x 4" | 3/8" | 4-3/8" | 2" | 1145 |
| SAH12234 | 1/2" x 2-3/4" | 1/2" | 3-1/4" | 2-1/2" | 1630 |
| SAH12334 | 1/2" x 3-3/4" | 1/2" | 4-1/4" | 2-1/2" | 1630 |
| SAH12434 | 1/2" x 4-3/4" | 1/2" | 5-1/4" | 2-1/2" | 1630 |
| SAH12534 | 1/2" x 5-3/4" | 1/2" | 6-1/4" | 2-1/2" | 1630 |
| SAH583 | 5/8" x 3" | 5/8" | 3-5/8" | 2-3/4" | 1925 |
| SAH584 | 5/8" x 4" | 5/8" | 4-5/8" | 2-3/4" | 1925 |
| SAH585 | 5/8" x 5" | 5/8" | 5-5/8" | 2-3/4" | 1925 |
| SAH586 | 5/8" x 6" | 5/8" | 6-5/8" | 2-3/4" | 1925 |
| SAH58812 | 5/8" x 8-1/2" | 5/8" | 9-1/8" | 2-3/4" | 1925 |
| SAH34314 | 3/4" x 3-1/4" | 3/4" | 4" | 3" | 2375 |
| SAH34414 | 3/4" x 4-1/4" | 3/4" | 5" | 3" | 2375 |
| SAH34514 | 3/4" x 5-1/4" | 3/4" | 6" | 3" | 2375 |
| SAH34714 | 3/4" x 7-1/4" | 3/4" | 8" | 3" | 2375 |
| SAH34814 | 3/4" x 8-1/4" | 3/4" | 9" | 3" | 2375 |
** Tabulated load values are for anchors installed in concrete(Concrete C20/25). Concrete compressive strength must be at the specified minimum at the time of installation.
