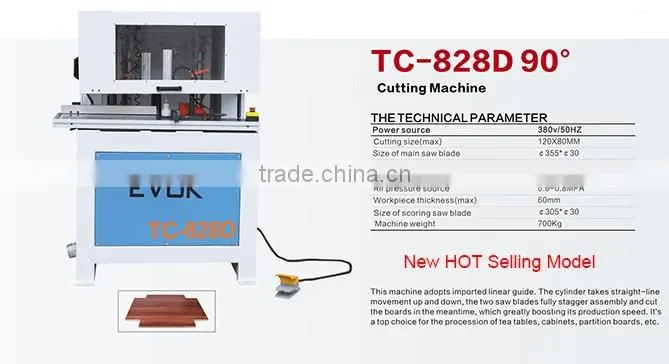

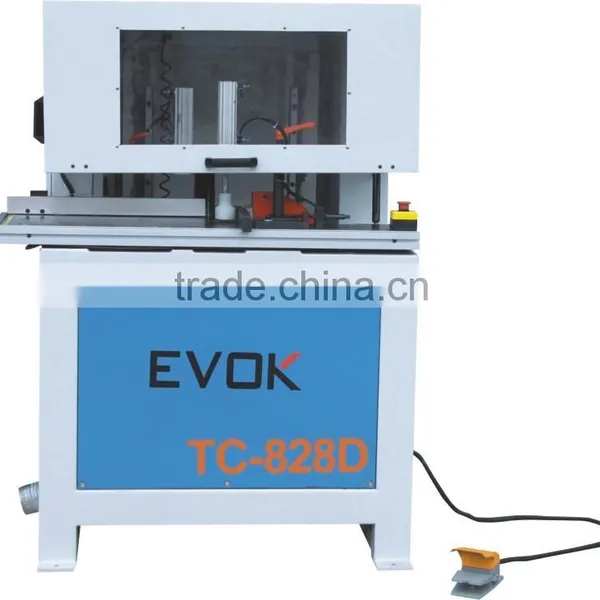

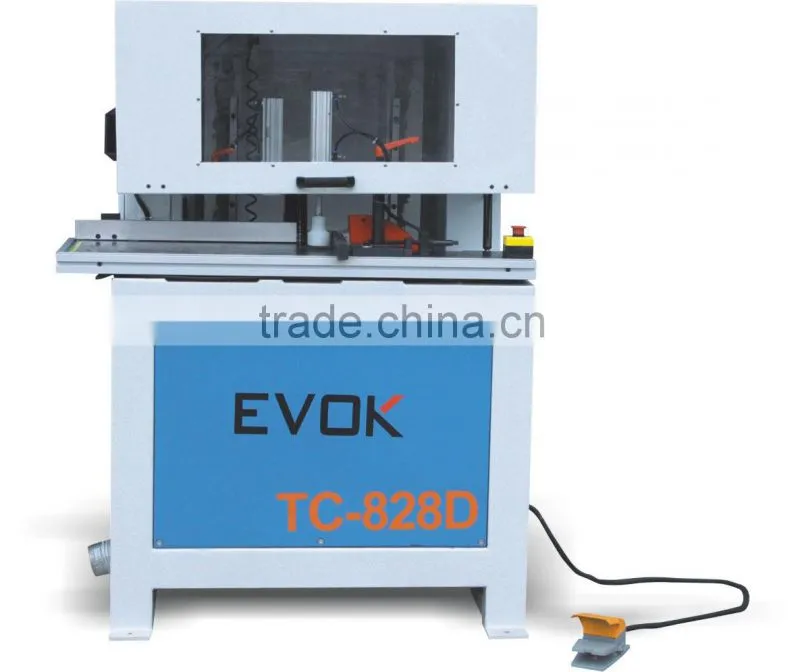

TC-828D Cutting Machine
This machine adopts imported linear guide.
The cylinder takes straight-line movement up and down,the two blades fully stagger
assembly and cut the boards in the meantime ,which greatly boosting
its production speed.it's production speed .It's a top choice for the procession of tea tables,
cabinets,partition boards,etc.
The Technical Parameter:
| Power source: | 380V/50HZ |
| Air pressure source: | 0.6Mpa-0.8Mpa |
| Cutting size(max): | 120 × 80mm |
| Max. workpiece thickness: |
60MM |
| Size of main saw blade: |
355 / 30 |
| Size of scoring saw blade: | 305 / 30 |
| Rotating speed of main shaft: | 4400rpm |
| Machine size: | 1000*900*1700mm |
| Total power: | 10KW |
| Machine weight: | 700kg/piece |
A. Pre-sales service
1. Indicate the specified function and equipment configuration.
2. Professional feedback on all kinds of technical questions.
3. Help to meet the needs of the individualized product. For example,OEM,ODM.
4. Welcome to visit our factory at any time.
B. On-purchase service
1. Provide the product performance and technical specification document sheets.
2. Confirm the changes or special requirements in the production process.
3. Welcome to visit our factory to inspect.
C. After-sales service
1. Provide installation, commissioning, operation, maintenance and other guidance.
2. Provide easy-wearing parts and common used spare parts.
3. 24 hours on line service.
4. Engineers available to service machinery overseas.
Customer First. Good will is the best policy.
-High Srandard.
-Fine Quyality.
-Famous Brand.
-Excellent Service
All products are ISO9001:2008 and CE certificated.
Wildly distributed through China and ecported to Europe, the Middle East, Asia and Oceania.
We are dedicated to continually perfecting our performance and providing high quality products
in appreciation for the support and cooperation of our customers.
Q1: Are U Manufacture or Trading Company ?
A: We are manufacture company, and we have a professional team for good service.
Q2: How long the machine can be used?
A: It depends how you use, if use it in good maintenance, at least 10 years.
Q3: How to ensure the safety?
A: There have the overlod and over heat protection,it ensure working people safety.
Q4: What is the difference with other producer?
A: "EVOK" means "Every machine is OK". We specialize in designing and manufacturing
woodworking machines. We have introduced advanced technology from abroad and own a
skillful R&D team. The key components of each machine are entirely bought from Italy,
Germany, Japan and Taiwan area.
Q5: What do U major in?
A: In the recent years, EVOK has successfully designed and developed a series of woodworking
machines as follows: automatic edge banding machines, multi-drill boring machines, novel corner
cutting machines, hinge boring machines, edge trimming machines, computer panel saws, and
table saws.
