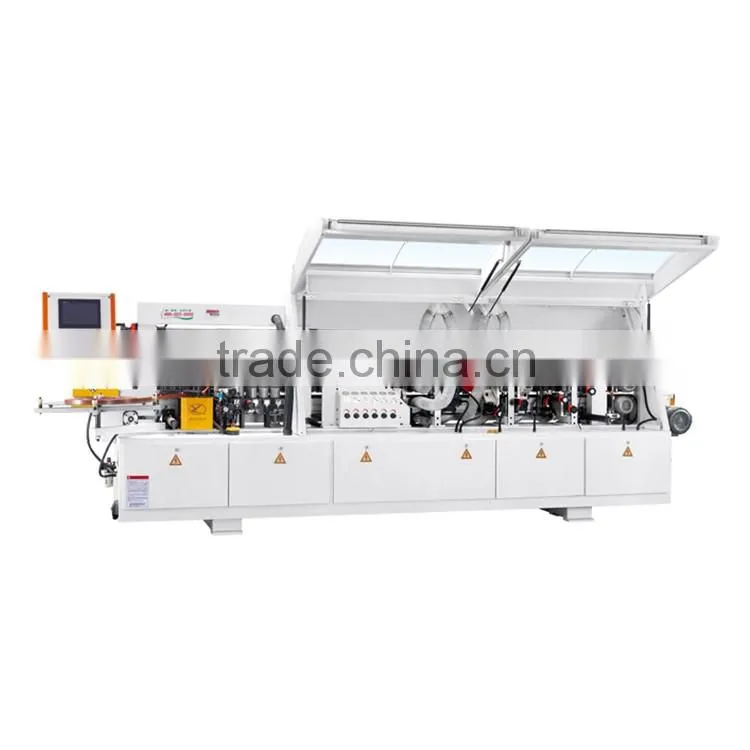

TC-60C-YX Automatic edge banding machine
- NINGBO PORT
You May Like
Product Details
Condition | New | Type | Band Saw | |
Use | Woodworking | Style | Horizontal | |
Place of Origin | Zhejiang, China | Brand Name | EVOK | |
Model Number | TC-60C-YK | Usage | Banding machine | |
Voltage | 380V | Power(W) | 20KW | |
Dimension(L*W*H) | 5300*950*1750mm | Weight | 2500KG | |
Certification | CE | Warranty | ONE YEAR | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The technical parameters: | |||
Power source | 220/380V 50Hz | Total power | 9.8Kw |
Panel thickness | 10-60mm | Panel width(min) | 60mm |
Panel length(min) | 100mm(PVC) | Band width | 12-65mm |
Band thickness | 0.3-12mm | Feed speed | 6-20M/min |
Mechanical size | 4700*950*1750mm | Mechanical weight | 2000kg |
1. New type of edge banding machine, adopts the top technology from Germany.It has the advantages of novel
structure,stable performance,easy operation etc.

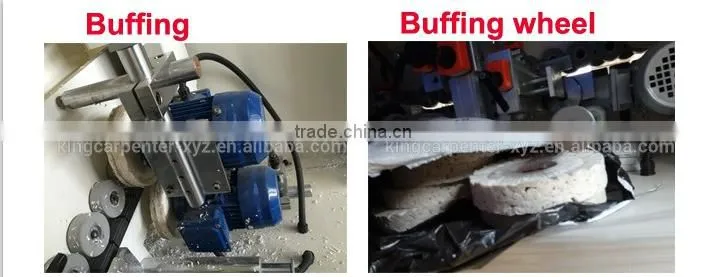

2. It has the functions such as:Automatic feeding ,Gluing ,End trimming ,Rough trimming ,Fine trimming ,Edge
scraping ,Polishing etc.
3. Meanwhile it use frequency converter of Italy TEKNOMOTOR to adapt different kinds of panel.It is an ideal
model to lift up the product grade.
Functions :

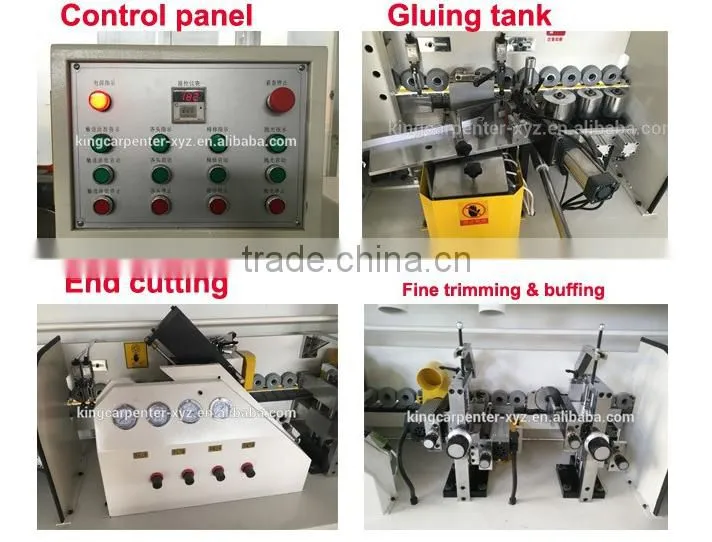

Function Drawings :

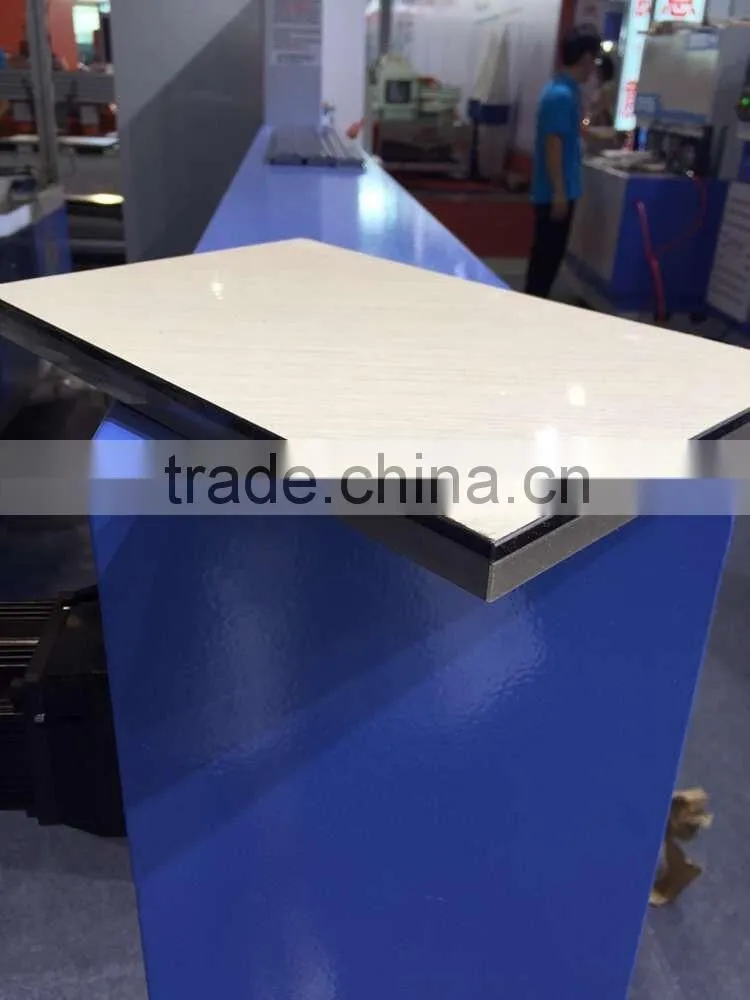

Ready Products :
All Categories
A. Pre-sales service
1. Indicate the specified function and equipment configuration.
2. Professional feedback on all kinds of technical questions.
3. Help to meet the needs of the individualized product. For example,OEM,ODM.
4. Welcome to visit our factory at any time.
B. On-purchase service
1. Provide the product performance and technical specification document sheets.
2. Confirm the changes or special requirements in the production process.
3. Welcome to visit our factory to inspect.
C. After-sales service
1. Provide installation, commissioning, operation, maintenance and other guidance.
2. Provide easy-wearing parts and common used spare parts.
3. 24 hours on line service.
4. Engineers available to service machinery overseas.
Customer First. Good will is the best policy.
-High Srandard.
-Fine Quyality.
-Famous Brand.
-Excellent Service
All products are ISO9001:2008 and CE certificated.
Wildly distributed through China and ecported to Europe, the Middle East, Asia and Oceania.
We are dedicated to continually perfecting our performance and providing high quality products
in appreciation for the support and cooperation of our customers.
Q1: Are U Manufacture or Trading Company ?
A: We are manufacture company, and we have a professional team for good service.
Q2: How long the machine can be used?
A: It depends how you use, if use it in good maintenance, at least 10 years.
Q3: How to ensure the safety?
A: There have the overlod and over heat protection,it ensure working people safety.
Q4: What is the difference with other producer?
A: "EVOK" means "Every machine is OK". We specialize in designing and manufacturing
woodworking machines. We have introduced advanced technology from abroad and own a
skillful R&D team. The key components of each machine are entirely bought from Italy,
Germany, Japan and Taiwan area.
Q5: What do U major in?
A: In the recent years, EVOK has successfully designed and developed a series of woodworking
machines as follows: automatic edge banding machines, multi-drill boring machines, novel corner
cutting machines, hinge boring machines, edge trimming machines, computer panel saws, and
table saws.
