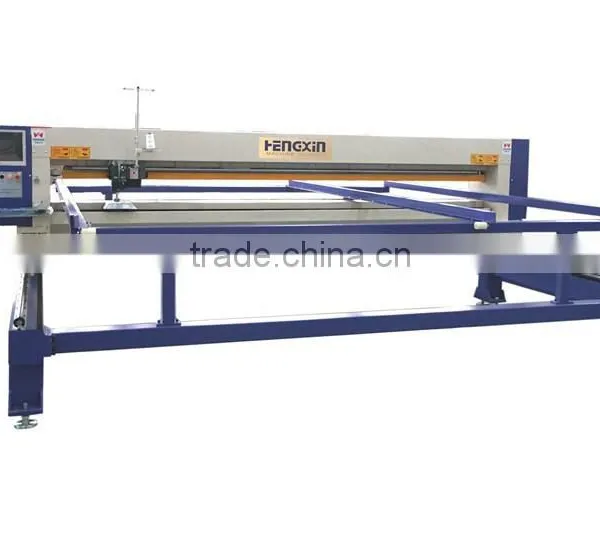

HXD-30Y computerized single-needle quilting machine, duvet making machine

Specifications

1.HXD-30Y computerized single-needle quilting machine
2.Max needle speed:2200rpm
3.Stitch length:2-7mm
forter machine

Model	Machine size(m)	Max working width(m)	Max size of a quilt(m)	Max size of drop needle(m)	needle speed(rpm)	Quilting thickness	Weight(t)	Power(kw)
HXD-26Y	3.52*3.5*1.3	2.6	2.6*2.8	2.4*2.6	2200	20-800	1	1.5
HXD-28Y	3.72*3.7*1.3	2.8	2.8*3.2	2.6*3.0	2200	20-800	1.1	1.5
HXD-30Y	3.92*3.9*1.3	3.0	3.0*3.2	2.8*3.2	2200	20-800	1.2	1.5
HXD-34Y	4.32*4.3*1.3	3.4	3.4*3.6	3.2*3.6	2200	20-800	1.4	1.5



FUNCTION:

1.Controlled by the servo motor, with low noise and keep stability of the machine.

2.Moved by the big beam and the head of machine, it covered a small area of the workshop.

3.Any pattern auto-quilting.

4.Quilting with equal stitch, and it is easy to amend sitch and speed.

5.Clockwise and counterclockwise quilting and empty forward or backward or threading button is provided.

6.The needle automatically stops at high position when them machine stops.

7.It autpmatically returns to original point.

8.It has the function of pattern tracing to make the needle position quickly.

9.It has the function to collect statistics of work and time.

10.It has the function of browsing patterns, and through setting up the pattern side, it can automatically enlarge or reduce patterns.

11.It is equipped with USB which can store more than 200 designs.



FEATURES:

1.The speed of main shaft has been raised and the work efficiency has been increased.

2.Application of big rotary hook, and the shuttle core is two times larger than that of small one.

3.The system has the function of testing, so as to have convenient maintenance.

4.Patterns has the function of rotation and overturn.

5.Servo motor, low noise.

6.Frequency convertor: stable performance, high precision and short-circuit protection and over-current-protection.

7.Handpiece: fast moving of lifting needle, stop running in fixing position, and the height of the foot presser can be adjusted.
