Help CenterHXD-28LX Computerized Single Needle Quilting Machine,mattress Machine
Related Products
-
Continuous Computerized Single Needle Quilting Machine,mattress MachineUS$ 1 - 40,000MOQ: 1 Set -
HXD-26LX Computerized Single Needle Quilting MachineUS$ 7,000 - 35,000MOQ: 1 Set
-
HXD-26LX Single-needle Quilting Machine,mattress Making MachineUS$ 20,000 - 38,000MOQ: 1 Set
-
HXD-26LX Computeriz Single Needle Quilting Machine,industrial Quilting Machine,antomatic Quilting MachineUS$ 1 - 35,000MOQ: 1 Set
-
HXD-26LX Single-needle Quilting Machine,mattress Making MachineUS$ 10,000 - 350,000MOQ: 1 Set
Specifications
1.CE,ISO 9001:20002.quilitng machine for mattress.
3.sing needle quilting machine
4.Hengxin brand,S.korea technical
HAIMEN HAOXIN MACHINERY CO.,LTD
| Technical Specification | ||||||||
| Model | Quilting width (m) | Machine dimensions (m) | Maximum size of loading a quilt(m) | quilting thickness (mm) | Max neddle speed (rpm) | Weight(t) | Power (kw) | Container |
| HXD-26LX | 2.6 | 9.5×3.4×1.47 | 2.6×2.8 | 5-70 | 1800-2500 | 4.5 | 3 | 20GP |
| HXD-28LX | 2.8 | 9.5×3.6×1.47 | 2.8×3.0 | 5-70 | 1800-2500 | 4.5 | 3 | 20GP |
| HXD-30LX | 3 | 9.5×3.8×1.47 | 3.0×3.2 | 5-70 | 1800-2500 | 4.5 | 3 | 20GP |
| Rotary hook | Big rotary hook | Motor | servo motor | |||||
| Stitch length | 2-7mm adjustable | Power | 3 Phase 380V 50HZ | |||||
Performance
1.Automatic feeding, automatic paving. Automatic clamping. Automatic quilting. Automatic cutting, all the process is controlled by computer, automatic flow production.
2.The pressure foot height can be adjusted according to the material thickness, the thickness of up to 70mm.
3.Strong professional Quilting computer functions, such as synchronized zoom, needle step size selection, trimming, etc..
4.Figure has the production quantity, cutting length can be set in advance in computer, transverse cutting and vertical cutting, a molding products, can be directly suture edge.
5.Any-pattern Auto-Quilting,Equal-Distance Needle Quilting.
6. Easy modification operation of needle distance and speed.
7. clockwise-counterclockwise quilting and empty forward or backward or thread-through button is provided.
8. the needle automatically stops at high position when the machine stops.
9. the machine stops when any broken thread is automatically detected.
10. Quilting condition and operation indication are shown in real time.
11. It automatically returns to original point.
12. It has the function of pattern tracing to make the needle position quickly.
13.It has the function of pattern browsing.
14.It has the function of work-piece and time statistics.
15.Through pattern side setting up ,it can automatically enlarge or reduce patterns.
Feature of the machine
1.The main shaft speed has been raised and work effciency has been increased.
2.Application of large rotation shuttle while the shuttle core is two times larger than that of small shuttle.
3.The system has testing function so as to have convenient maintenance.
4.Graphics has the function of rotation and overtum.
5.Sliding axle case application integration structure, the machining center production.
6.Paint application car lacquer barbecue processing, beautiful appearance.
7.Guide assembly with special platform, accuracy requirement not more than 0.05 mm.
7.Beyond-boundary protection function.
PANEL CUTTING MACHINE
PACKING WITH WOODEN BOX.

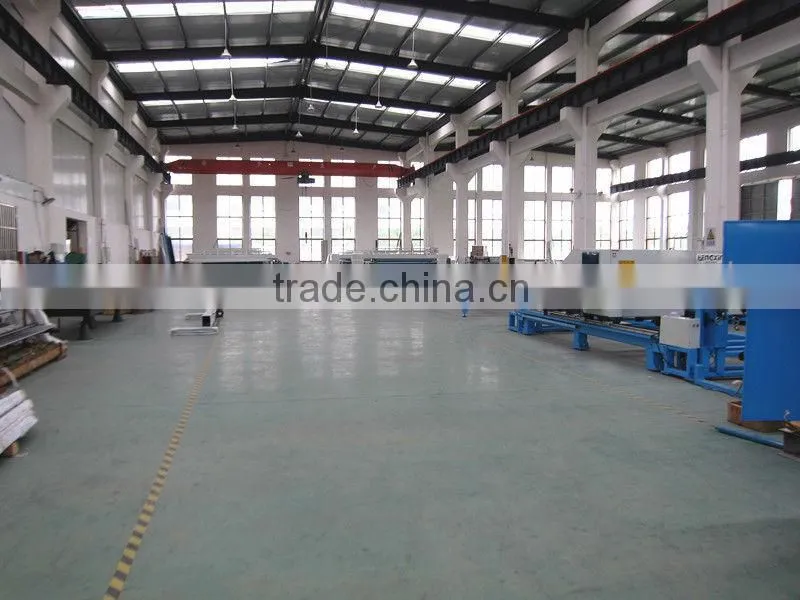

WORKING SHOP

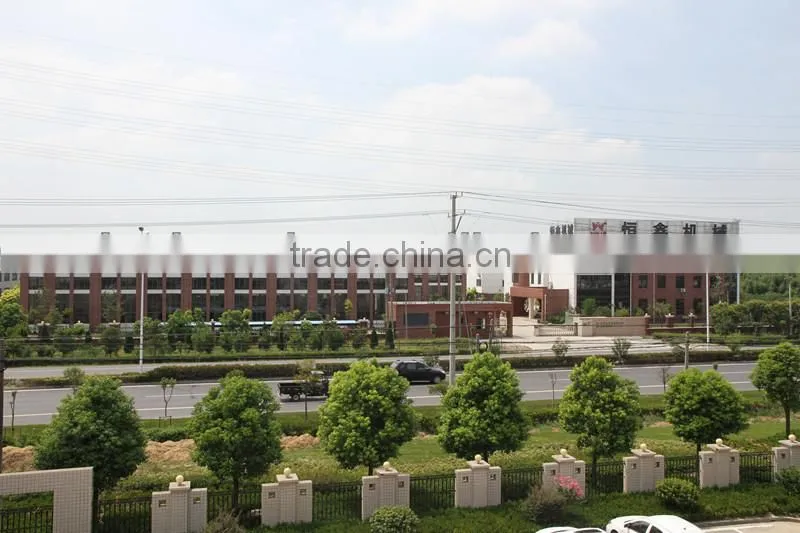

WELCOME TO VISIT OUR FACTORY.
