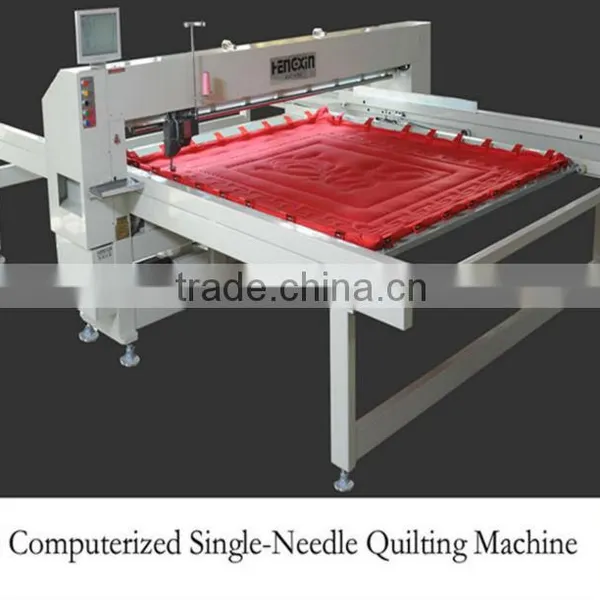

Computerized Single Head Quilting Machine,sewing Machine,quilt Mattress Making Machine

Computerized Single Head Quilting Machine,sewing Machine,quilt Mattress Making Machine thumbnail-1
Computerized Single Head Quilting Machine,sewing Machine,quilt Mattress Making Machine photo-1
US$ 1 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HENGXIN
Contact Supplier Request Quote Chat Now
Haimen Haoxin Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HENGXIN
Model Number HXD-26 HXD-28,HXD-30
Max Sewing Speed 2200
Max Sewing Thickness 50mm
Number of Head Single Head
Moving Style Head Moved
Voltage 220v
Power(W) 50HZ
Dimension(L*W*H) 3550*4800*1500
Weight 1200kg
Certification CE,ISO9001:2000
Warranty 1 year
After-sales Service Provided Overseas service center available

Specifications

1.CE,ISO 9001:2000
2.quilt,mattress making machine.
3.sing needle quilting machine
4.Hengxin brand



computerized single head quilting machine,sewing machine,quilt mattress making machineHAIMEN HAOXIN MACHINERY CO.,LTD





Technical Specification
Model Quilting width (m) Machine dimensions (m) Maximum size of loading a quilt(m) quilting thickness (mm) Max neddle speed (rpm) Weight(t) Power (kw)
HXD-26 2.6 3.55×4.8×1.47 2.6×2.8 5-50 1800-2500 1.2 1.5
HXD-28 2.8 3.85×4.8×1.47 2.8×3.0 5-50 1800-2500 1.2 1.5
HXD-30 3 4.05×4.8×1.47 3.0×3.2 5-50 1800-2500 1.2 1.5
Rotary hook Big rotary hook     Motor Stepper motor
Stitch length 2-7mm adjustable     Power 1 Phase 220V 50HZ



Performance

1.automatic quilting accroding the patterns.

2.The pressure foot height can be adjusted according to the material thickness, the thickness of up to 70mm.

3.Strong professional Quilting computer functions, such as synchronized zoom, needle step size selection, trimming, etc..

4.Figure has the production quantity, cutting length can be set in advance in computer, transverse cutting and vertical cutting, a molding products, can be directly suture edge.

5.Any-pattern Auto-Quilting,Equal-Distance Needle Quilting.

6. Easy modification operation of needle distance and speed.

7. clockwise-counterclockwise quilting and empty forward or backward or thread-through button is provided.

8. the needle automatically stops at high position when the machine stops.

9. the machine stops when any broken thread is automatically detected.

10. Quilting condition and operation indication are shown in real time.

11. It automatically returns to original point.

12. It has the function of pattern tracing to make the needle position quickly.

13.It has the function of pattern browsing.

14.It has the function of work-piece and time statistics.

15.Through pattern side setting up ,it can automatically enlarge or reduce patterns.



Feature of the machine

1.The main shaft speed has been raised and work effciency has been increased.

2.Application of large rotation shuttle while the shuttle core is two times larger than that of small shuttle.

3.The system has testing function so as to have convenient maintenance.

4.Graphics has the function of rotation and overtum.

5.Sliding axle case application integration structure, the machining center production.

6.Paint application car lacquer barbecue processing, beautiful appearance.

7.Guide assembly with special platform, accuracy requirement not more than 0.05 mm.

7.Beyond-boundary protection function.





Machine working



computerized single head quilting machine,sewing machine,quilt mattress making machine



Making mattress,thickness 5cm.



computerized single head quilting machine,sewing machine,quilt mattress making machine computerized single head quilting machine,sewing machine,quilt mattress making machine



Packing with wooden box.





New products

HXD continuations computerized single needle quilting fessional for making mattress.

Developing with S.Korea technical.

computerized single head quilting machine,sewing machine,quilt mattress making machine



HXD-Y computerized single needle quilting machine

Big body moving,speed:2500rpm.



computerized single head quilting machine,sewing machine,quilt mattress making machine





Hengxin machinery Working shop.



computerized single head quilting machine,sewing machine,quilt mattress making machine computerized single head quilting machine,sewing machine,quilt mattress making machine  computerized single head quilting machine,sewing machine,quilt mattress making machine



Welcome to visit our factory.
