HAIMEN HAOXIN MACHINERY CO., LTD

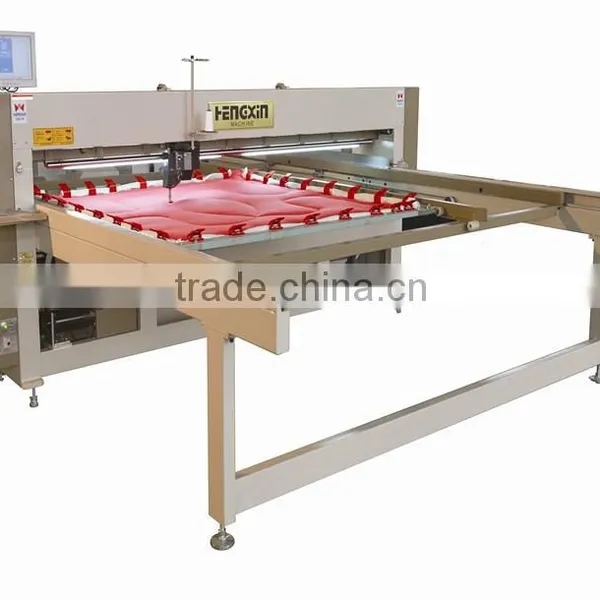

HXD COMPUTERIZED SINGLE-NEEDLE QUILTING MACHINE
| Model | Machine Size(m) | Max size of a qulit(m) | Generator pier width(m) | Max size of dropping needle(m) | Needle speed(rpm) | Max quilting thickness | Min quilting thickness | Weight(T) | Power(kw) |
| HXD-23 | 3.25*5*1.67 | 2.3 | 2.3*2.5 | 2.1*2.3 | 2200 | 800 | 20 | 1 | 2.5 |
| HXD-26 | 3.55*5*1.67 | 2.6 | 2.6*2.8 | 2.4*2.6 | 2200 | 800 | 20 | 1.47 | 2.5 |
| HXD-28 | 3.8*5.4*1.67 | 2.8 | 2.8*3.2 | 2.6*3.0 | 2200 | 800 | 20 | 1.5 | 2.5 |
| HXD-30 | 4.05*5.4*1.67 | 3.0 | 3.0*3.2 | 2.8*3.2 | 2200 | 800 | 20 | 1.55 | 2.5 |
| HXD-34 | 4.45*5.4*1.67 | 3.4 | 3.4*3.6 | 3.2*3.6 | 2200 | 800 | 20 | 1.7 | 2.5 |
FUNCTION:
1.Any pattern auto-quilting.
2.Quilting with equal stitch, and it is easy to amend stitch and speed.
3.Clockwise and counterclockwise quilting and empty forward or backward or threading button is provided.
4.The needle automatically stops at high position when the machine stops.
5.It automatically returns to original point.
6.It has the function of pattern tracing to make the needle position quickly.
7.It has the function to collect statistics of work and time.
8.It has the function of browsing patterns, and through setting up the pattern side, it can automatically enlarge or reduce patterns.
9.It is equipped with USB which can store more than 200 designs.
FEATURES:
1.The speed of main shaft has been raised and the work efficiency has been increased.
2.Application of big rotary hook, and the shuttle core is two times larger than that of small one.
3.The system has the function of testing, so as to have convenient maintenance.
4.Patterns has the function of rotation and overturn.
5.Servo motor, low noise.
6.Frequency convertor: stable performance, high precision and short-circuit protection and over-current-protection.
7.Handpiece: fast moving of lifting needle, stop running in fixing position, and the height of the foot presser can be adjusted.
Details:
English and Russian version of system:

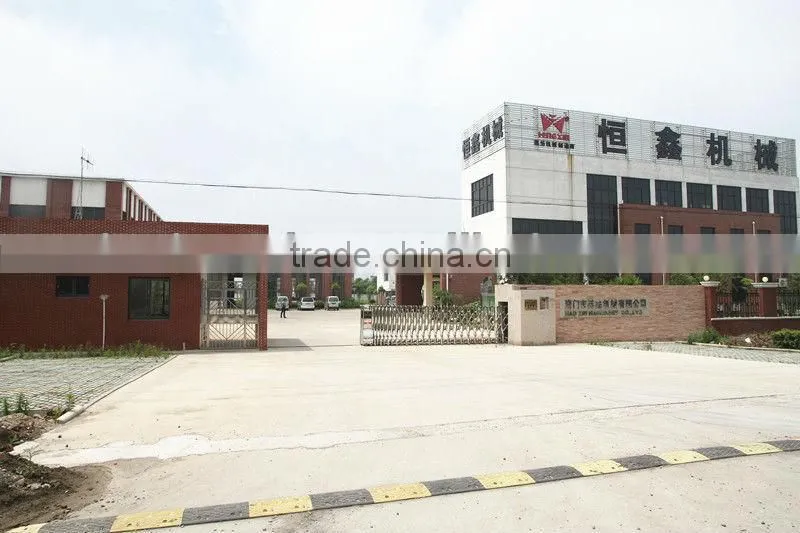

Welcome to visit HAIMEN HAOXIN MACHINERY CO., LTD!
