HAIMEN HAOXIN MACHINERY CO., LTD
UNISION MACHINE OF HIGH-SPEED QUILTING AND EMBROIDERING
| Model | Machine size(m) | Max working width(m) | needle pitch(mm) | Number of needles | Needle speed(rpm) | Max quilting thickness(g/m2) | Min quilting thickness(g/m2) | Weight(T) | Power(kw) |
| HXC-225G | 5.3*3.375*2 | 3.352 | 67.5 | 50 | 850 | 600 | 20 | 3.7 | 7 |
| HXC-233G | 5.3*3.375*2 | 3.375 | 50.8 | 66 | 850 | 600 | 20 | 3.8 | 7.5 |
FUNCTION:
1.Quilting and embroidery completed together.
2.Y direction is drived by roller system.
3.Keep plain by tension motor for feed-in and feed-out fabric.
4.Controlled by servo motor at X/Y direction to ensure the precision of embroidery.
5.It has automatic device when the thread broken.
6.It has automatic returning re-embroidery function.
7.Optional head sewing embroidering.
8.Attachment quilting independent pattern, jumping quilting function.
9.Tajima, Barudan, ZSK and SWF formats can be read.
10.The unique mechanical structure can reduce the vibration, thereby it will be better to control the vibration and reduce the noise.
FEATURE
1.Machine head for sewing thick cloth.
2.First one in nation, controlled by single needle shaft.
3.Small interval and the efficiency increased a lot.
4.The application of big rotary hook, and cop latch of shuttle is two times than small shuttle.
5.Three bearings use servo motor, so that raise the precision and stability.

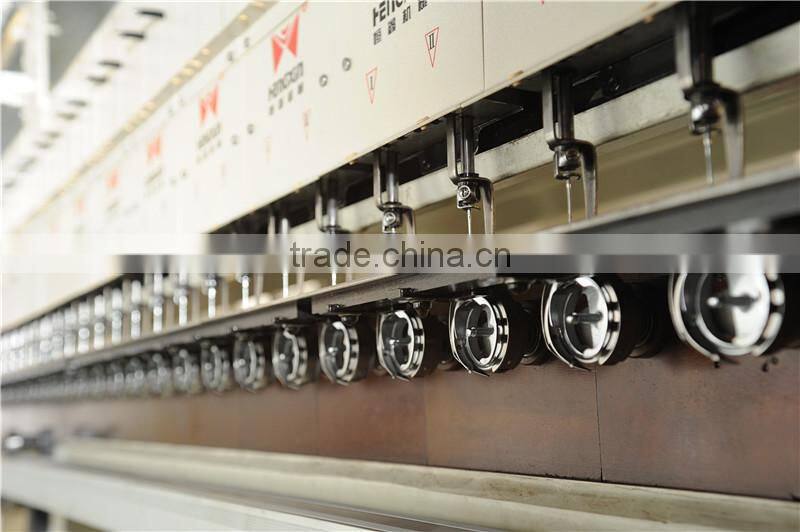

6.ROTARY HOOK:imported from Japan.
7.SERVO MOTOR:Panasonic brand.

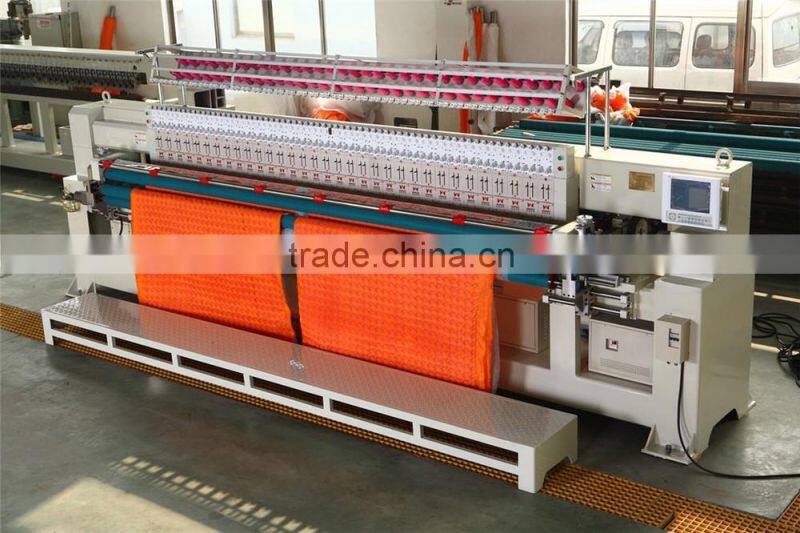

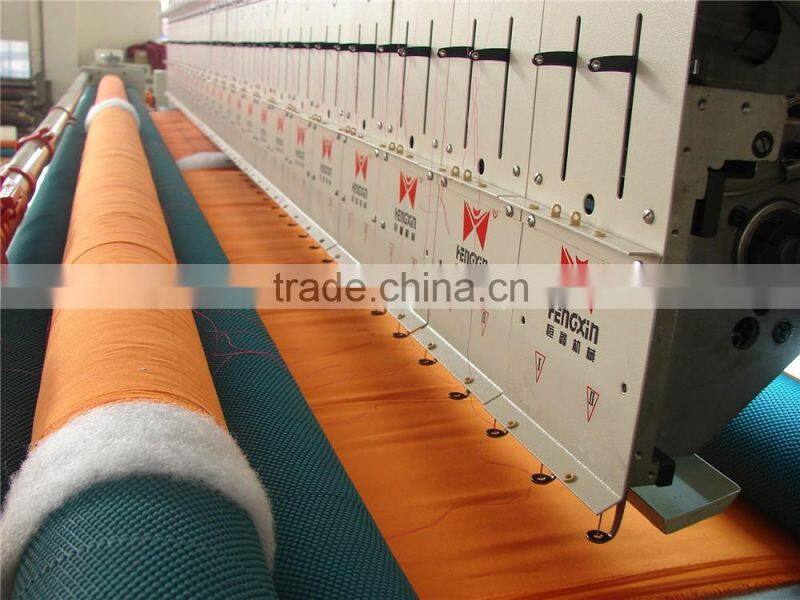

Machine:
Patterns:
Workshop:
Welcome to HAIMEN HAOXIN Machinery CO., LTD!
