Polyester Fiber Production Line,wadding Production Line.carding Machine

Polyester Fiber Production Line,wadding Production Line.carding Machine photo-1
US$ 1,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HENGXIN
Model Number:
HX18PL
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name HENGXIN
Model Number HX18PL
After-sales Service Provided Overseas service center available

Specifications

1.CE Certificate.
2.quality guarantee:one year.
3.capacity:200-250kg per hour.

HAIMEN HAOXIN MACHINERY CO.,LTD

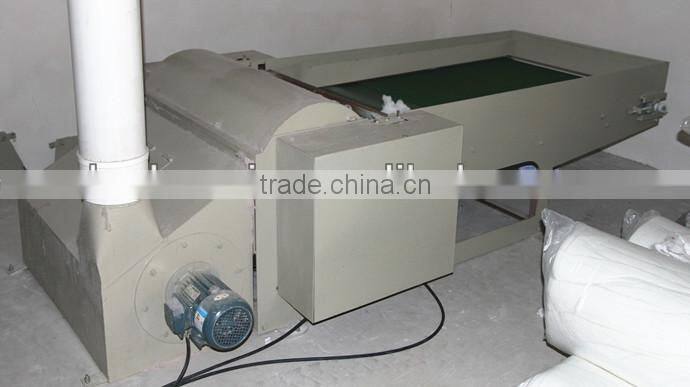

1.Opening machine

To loosen all kinds of fiber in bundles, then transfer them to next procedure via blower fan. The pre-opening is by notch-style roller to reduce fiber damage.The main opening is by card wire palte with high efficiency and good quality.

2.Cotton Feeder

This machine will be open to mixed pine fiber, sent a uniform layer of cotton for the next working procedure, optoelectronics, quantitative control, and vibration plate, the amount of cotton uniform and accurate.



3.Carding Machine

Spinning material combing into a single fiber, reticular fiber layer,Single cylinder high-speed carding and double-doffer outputtiong has high production capacit.Cylinder diameter:φ1230mm. 1.55

4.Cross Lapper

Thefibers after carding lapped to a certain width and thickness, after pressure is conveyed to the next process.



5.Automatic Cutting& Covering Machine

the fibers after carding and cross lapper,it will become to quilt,and automatic transport to filling the quilt cover.



6.Oven

use glass tube to heat the fibers,automatic detection the temperature,the fiber will be more compact.length:2m.

2.8



Polyester Fiber production line,wadding production line.carding machinePolyester Fiber production line,wadding production line.carding machinePolyester Fiber production line,wadding production line.carding machinePolyester Fiber production line,wadding production line.carding machine
