Specifications

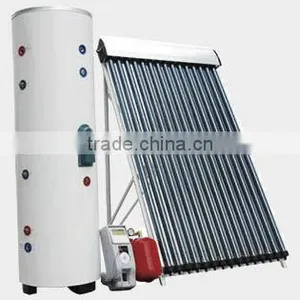

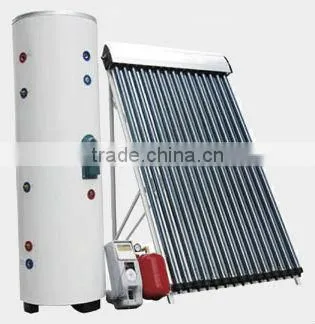

Split pressurized solar water house heating systemsolar house heating system
1.Manufacturer, OEM acceptable
2.Food grade thick inner tank
3.Solar Keymark,ISO9001,CE,CCC,SGS
Split pressurized solar house heating system
Quick Details:
Place of Origin |
Zhejiang China (Mainland) |
Brand Name |
GREEN TECH |
Model Number |
JNCY |
Heating Type |
Heat pipe & copper coil |
Pressure |
Pressurized |
Connection Type |
Split |
Installation |
Freestanding |
Housing Material |
Galvanized steel |
Spare Parts |
Electric heater, magnesium rod, P/T valve |
Certification |
Solar Keymark ,SGS, CCC, CE, ISO9001 |
Optional Capacity |
150L,200L,250L,300L,400L,500L |
Use |
Bathroom |
Packaging & Delivery:
Packing Details: Export carton with full foams
Delivery Time: Within 15 days after deposit received
Features:
Use copper tube as its flow material, conducted by thermal conductivity medium and vacuum tubes does not take water, operating under the pressure.There equipped with standard electric heating devices and automatic temperature control device, as well as magnesium anode road, which effectively prevent encrustation and keep good insulation effective.
1. Collector separates with the storage water tank ,which can be installed anywhere of the house.The collector can be put on the inclined roof/flat roof.
2. The pipeline is made of red copper and conducted by heat transfer medium liquid ;the crust use aluminum alloy mould material of high strength with airflow design.
3. Anti- freeze, no water inside the tubes when it works.
4. Intelligent controller. This solar house heating system is equipped with the automatic procedure and electric heating system to supplement heat.
5. Workable at anytime.
6. The equipments of separate solar water heater is composed by water tank with copper coils, solar collector, and work station (intelligent controller, Wilo circulation pump, expansion case).
Material:
1) Inner tank: Standard stainless steel 304, 1.2mm
2) Outer tank: Galvanized Steel 0.4mm
3) Vacuum tube: Three-target vacuum tubes 58*1800+copperpipes+aluminum fins+ anti-dust ring
4) Bracket: Galvanized steel /Aluminum alloy steel
5) Insulation: Polyurethane.50mm-60mm
6) Spare parts included: Electric heater, magnesium rod, P/T valve
7) Packing: Export carton with full foams
Specifications:
Parameter table
Model-capacity-tubes |
Tube specification |
Loading Qty(sets) |
JNCY-150L-15 |
Φ58mm*1800mm |
33/67/80 |
JNCY-200L-20 |
Φ58mm*1800mm |
28/58/68 |
JNCY-250L-25 |
Φ58mm*1800mm |
26/53/62 |
JNCY-300L-30 |
Φ58mm*1800mm |
20/40/48 |
JNCY-500L-60 |
Φ58mm*1800mm |
13/26/32 |
Remark:
1.Solar water tank diameter (mm):370/470, 470/560, 600/700
2.Insulation thickness (mm):45/50
3.Copper coil connection (inch):1/2
4.Water connection (inch):1 inch
5.Copper coil length*diameter (mm): each coil 15m*12mm
