Specifications

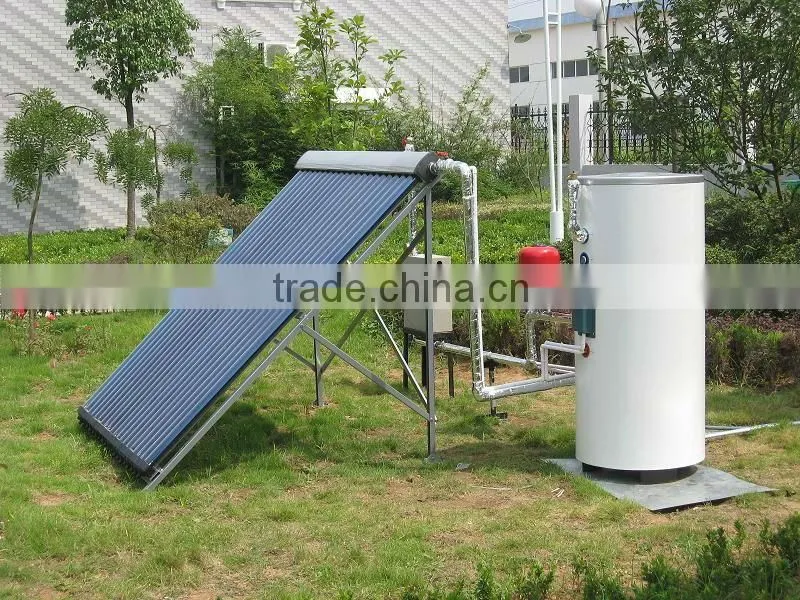

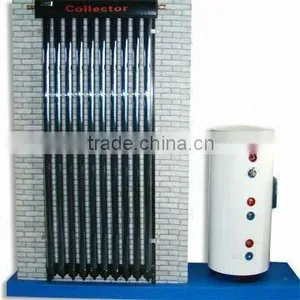

solar water heating system
solar water heating system
high pressure and good price
no pollution
easy installation
solar keymark, CE, CCC certifica
solar water heating system
solar water heating system features:
1, Diameter of vacuum tube: 47mm/58mm/70mm
2, length of vacuum tube: 1500mm/1800mm/2100mm
3, quantity of vacuum tube: 15/18/20/24/30/36/42/50
4, type of the vacuum tube: single target coating tube/velocity of light violet gold tube/glass heat pipe/triple target coating and triple-cavity vacuum tube.
5, material of inner tank: imported sus304-2b environmental stainless steel
6, diameter of inner tank: 360mm to 600mm
7, diameter of outer tank: 460mm to 700mm
8, thickness of inner tank: 1.5mm to 2.0mm
9, thickness of outer tank: 0.55mm
10, material of outer tank: porcelain/silver pearlescent plate/color steel
11, heat insulation layer: imported polyurethane
12, thickness of heat insulation layer: 50mm to 60mm
13. pressurized system: 0.6MP
14, material of support: Aluminum Alloy
15, color of support: black
16, inclination of frame: 38 to 45 degree
17, capacity optional: 100L,150L,200L,240L,300L,400L,500L
18, working temperature: 90 degree
19, cold resistance: -30 degree
20, easy installation and best price
solar water heater Working principle:
split solar water heater containers :
Models |
Tube specification |
Tank capacity |
20GP |
40GP |
40HQ
|
JNCY-15-1800 |
Heat pipe 58*1800*15 |
150L |
33 |
67 |
80 |
JNCY-20-1800 |
Heat pipe 58*1800*20 |
200L |
28 |
58 |
68 |
JNCY-25-1800 |
Heat pipe 58*1800*25 |
250L |
26 |
53 |
62 |
JNCY-30-1800 |
Heat pipe 58*1800*30 |
300L |
20 |
40 |
48 |
JNCY-30-1800 |
Heat pipe 58*1800*36 |
300L |
18 |
37 |
43 |
JNCY-50-1800 |
Heat pipe 58*1800*50 |
500L |
13 |
26 |
32 |
Guarantee: 5 year responsibility for free repairing or exchange due to original quality probl
