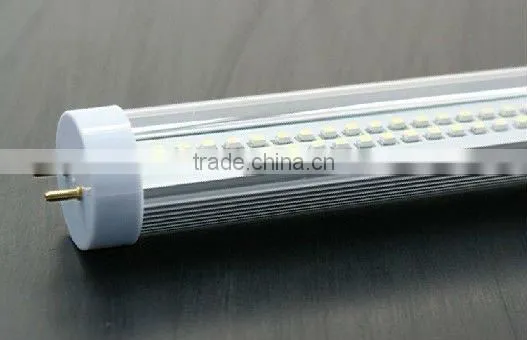

LED light SMD 3528 900mm T8 tube light 0G0 series

Specifications

1. 15W±1W, SMD 3528 LED;
2. Φ25.4×893.8mm±0.2mm size;
3. Aluminum alloy and PC material;
4. Pure white, warm white and cold white available;
5. 50000 hours life

1. High efficacy: Cost saving in energy consumption.
2. Long life span: Reduces maintenance costs compared with the traditional fluorescent lamp
3. Standard T8 size: No need to change existing fixture upon replacement
4. Starter and ballast not required:Installation is simple without starter and ballast which makes more energy efficient.
5. Start with no flicker:Reduce discomfort to the eyes
6. Sophisticated Diffuser:Minimal glare and without any noticeable hot spot

Applications

T8 LED Tubes are used to replace the traditional fluorescent lamp, and widely applied in Commercial lighting, Home lighting, Factory lighting, Office lighting and so on.

Installation

1. No need to install starter and ballast.
2. No need to remove starter and ballast before installation, but there are 1.9W power loss with ballast.
Installation procedure
A. Luminaire with inductive ballast bracket
Step 1 Remove the traditional fluorescent tubes from the bracket.
Step 2 Install the LED tubes into the bracket
Step 3 Take down the inductive Ballast, directly connect the two ends.
B. Luminaire with electronic ballast bracket
Step 1 Remove the traditional fluorescent tubes from the bracket.
Step 2 Take down the electronic ballast from the bracket.
Step 3 Connect the two wires,  respectively connect the wires to the two ends.
Step 4 Install the LED tubes into the bracket
