acoustic panel1. wide sound absorption spectrum
2. high absorption coefficient
3. non-combustible
4. dust-free
acoustic panel
Feature:
1. it has wide sound absorption spectrum, high sound absorption coefficient, good absorption effect for low, medium and high frequency noises.
2. it is noncombustible, dust-free, strong decorative effect, simple construction and so on.
Structure:
filled with glass wool inside, aluminum frame, wrapped with sound absorption cloth, and covered with fabric on the surface
Dimension:
Thickness: 30mm
Standard size: 1200×600×30mm
Acoustic performance:
Model: [QY-XB-B030] 30mm thickness
Test standard: GBJ47-83
Test condition |
Centre Frequency (Hz) |
125 |
250 |
500 |
1000 |
2000 |
4000 |
Install closely on wall |
Sound absorption coefficient α |
0.10 |
0.33 |
0.79 |
1.01 |
1.07 |
1.11 |
10cm cavity |
Sound absorption coefficient α |
0.45 |
0.97 |
1.10 |
1.15 |
1.14 |
1.20 |
Color: many colors are available
Flame retardance: Class A
Edge: big bevel edge

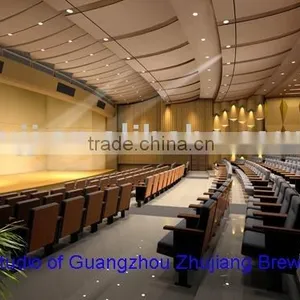

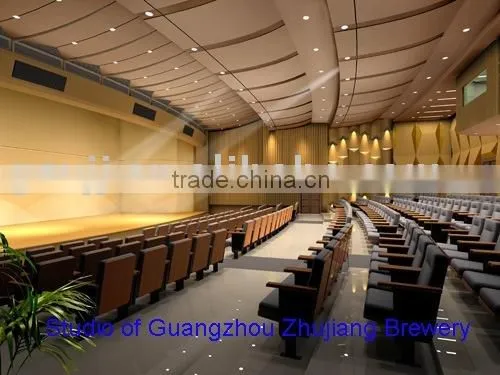

Application: auditorium, conference hall, hotel, ballroom, karaoke hall, cinema, bowling alley, language chamber, hospital, rehearsal hall and so on.
Installation method: use special adhesive to paste or use the T-grid to fix or use the nail-shotting gun to fix.
