Specifications
super daylight led panel light 30120 panel light1.Power source:Mean Wei

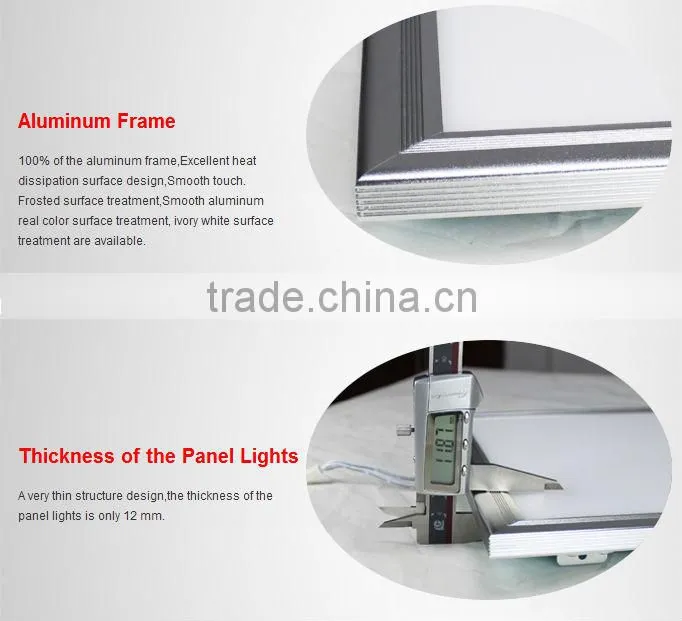

2.Thickness:12mm
3.Uniformed luminance
4.Aluminum
super daylight led panel light 30120 panel light 36w
3 years warranty
300x1200x12mm LED Panel Lights
(1) South Korea's Samsung SMD5630 LEDs, Taiwan LumenMax SMD5630 or SMD3014 LEDs are available.
(2) MEAN WELL Power Supply or Bipolar Drive Power Supply are available.

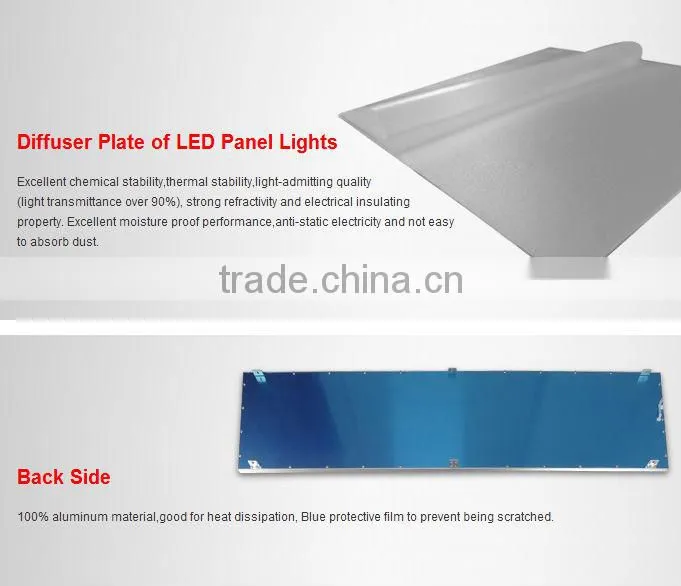

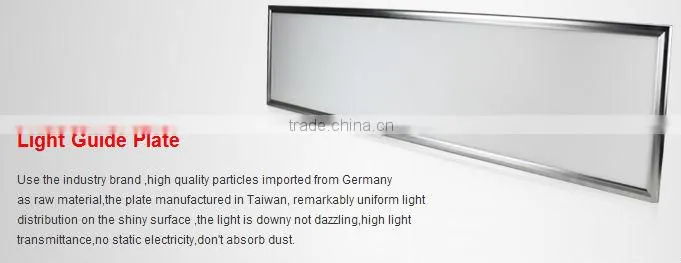

(3) With high light transmission rate , excellent light uniformity, and effectively prevent static electricity and dust.
(4) Professional aluminum structure design and PCB circuit design to ensure the SMD LEDs good for heat dissipation.
(5) Alternative Power :27watt / 36watt / 42watt / 48watt / 54watt / 72watt.
(6) Standard CE RoHS ETL UL FCC TUV.
(7) One remote can control many pieces of Panel Light and the panel lights can be divided into four groups and control separately
Technical Parameter
Contents |
Parameter |
Input Voltage |
AC 100-240V(CE) |
Input Power |
36W |
Luminous |
36W ( 2700 lm) |
Power Efficiency |
36 W(75lm/w) |
| Color | Up to request |
| Color Temp | 2800-7000k |
| CRI | 3014≥72 5630≥80 |
| Drive mode | Constant current |
LED Qty |
352 |
| LED Type | LumenMax 5630/3014 |
IP |
IP 40 |
| Working Temp | -20ºC — 50ºC |
Details show
Workshop Show

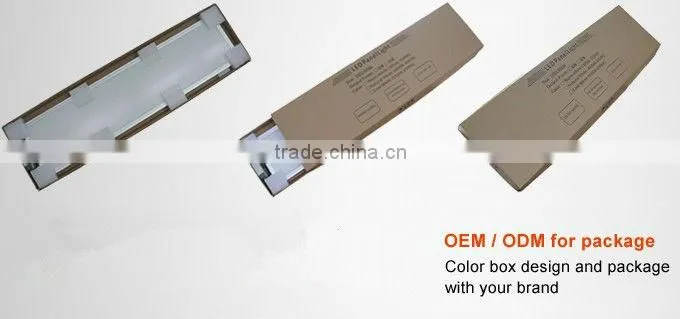

Pack
Inner Box: 380×1280×55mm (1pcs/box) Net Wet: 4.2 KG Gross Weight: 4.7KG
Outer Carton: 400×1300×240mm (4boxes/carton) Net Weight: 19KG Gross Weight: 22KG
4 boxes led panel light in a carton
Logistics transportation
About US
|
We, LVT, are a reliable Lighting Manufacturer and professional Trading servcie Supplier.
We provide you Good Quality Product with Reasonable Price: 1. Every Product with Strict Quality Control; 2. OEM & ODM Product Sampling and Production;
We also offer you Best trading Service, such as following: 1. Related Product Sourcing Service; 2. Complete Buyer Agent Service; 3. Inspection Service; 4. Custom Clearance Service; 5. Shipping Service; 6. Other Documentaions and Certifications Service.
Any Project Consultant Inquiry will be Highly Welcomed. |
|
Thank you for your kind Attention to our Product. Any question or comment will be highly appreciated. We are Ready to wait for your Inquiry. |
certification
