led panel dance floor 60 60cm 36W lights

Specifications

led panel dance floor 60 60cm 36W lights
1.Light transmittance over 90%
2.Samsung/LumenMax LEDs
3.Warranty:3 year

led panel dance floor 60 60cm 36W lights

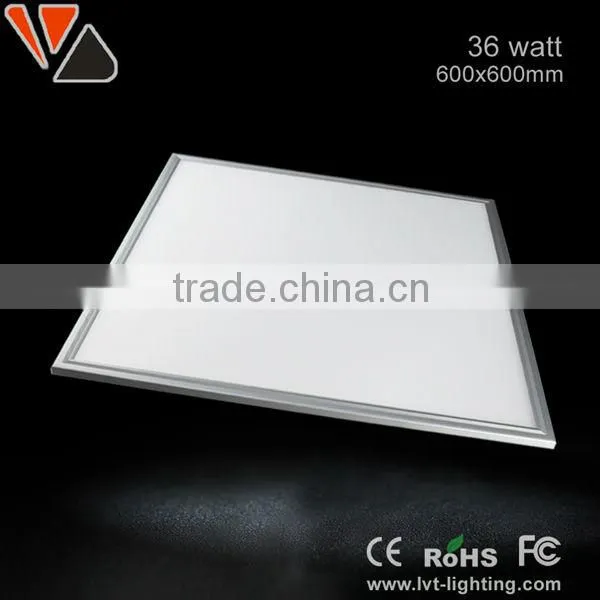

01 Series LED Panel Lights ( 600*600*12mm )

(1) South Korea's Samsung SMD5630 LEDs, Taiwan LumenMax SMD5630 or SMD3014 LEDs are available.
(2) MEAN WELL Power Supply or Bipolar Drive Power Supply are available.
(3) With high light transmission rate , excellent light uniformity, and effectively prevent static electricity and dust.
(4) Professional aluminum structure design and PCB circuit design to ensure the SMD LEDs good for heat dissipation.
(5) Alternative Power :36watt / 48watt / 54watt.
(6) Standard CE RoHS ETL UL FCC TUV.
(7) One remote can control many pieces of Panel Light and the panel lights can be divided into four groups and control separately

Contents	Parameter
Input Voltage	AC 100-240V
Input Power	36W
Luminous	36W(3060lm )
Power Efficiency	36W(85lm/w)
Color	Up to request
Color Temp	2800-7000k
CRI	5630>80
Drive mode	Constant current
LED Qty	110
LED Type	LumenMax 5630
IP	IP 40
Working Temp	-20ºC — 50ºC

 Product show

Installation ways

Package



Inner Box: 690×680×55mm (1pcs/box) Net Weight: 4.0KG Gross Weight: 4.5KG



Carton: 700×710×240mm (4pcs/carton) Net Weight:18.8KG Gross Weight: 21 KG



4 boxes LED panel light packed in a Carton



Workshop show

Logistics Transportation

Certification
