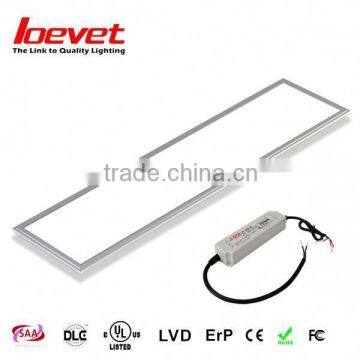

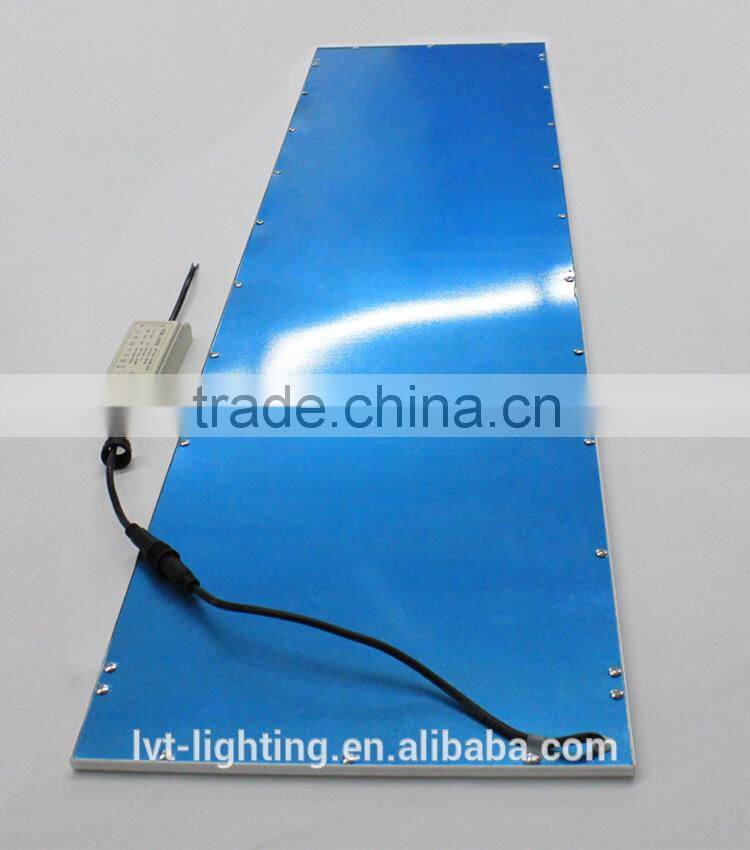

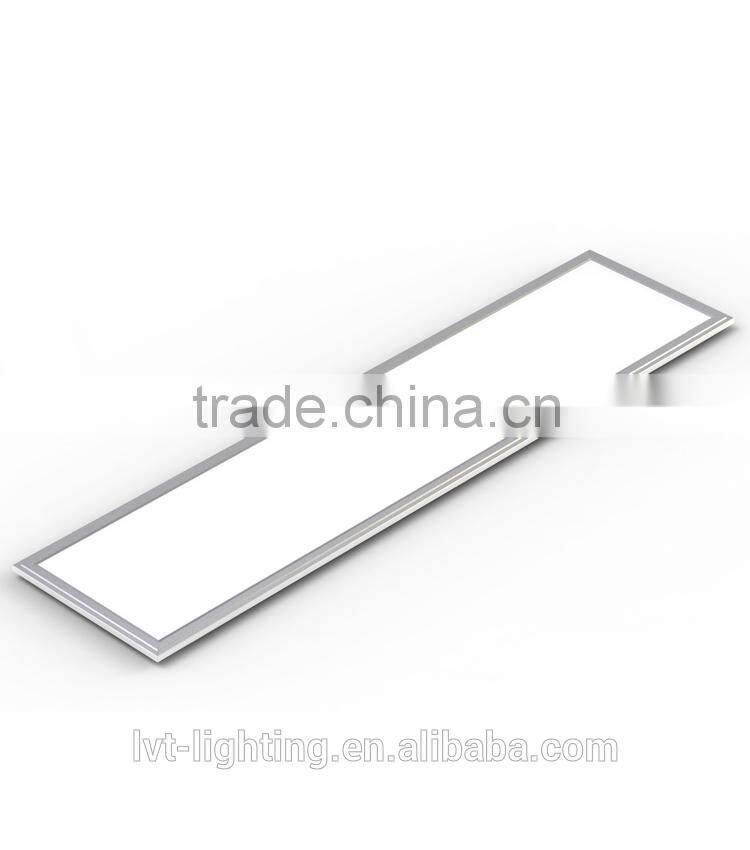

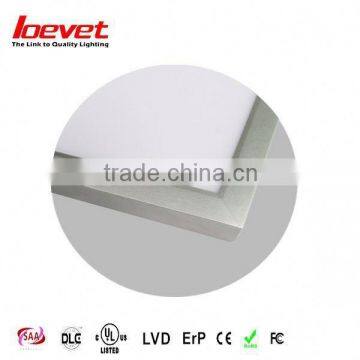

Top quality super bright 30x120 flat led lighting
Overview:
Designed for mounted on the Wall or drop in ceilings, LOEVER offers LED Panel Performance and Saver Series that are ideal energy-efficient replacement for fluorescent fixtures in offices, schools, hospitality, healthcare and other commercial and industrial applications requiring only a minimal installation depth. Available in 1'x4', 2'x2' and 2'x4' models in 3500K (warm white), 4100K (cool white) and 5000K (daylight) correlated color temperatures (CCT), the LED fixtures enable even light distribution to create stress-free environments, and are dimmable to meet user preference. UL AND SAA-approved and rebatable models are available.
Features:
Luminosity Efficacy: 100lm/w (Super High) 80lm/w (Normal)
Voltage input: 100~277V AC
LED chips: SMD 2835
Color Temperature: 4000K, 5000K,6000K
CRI: Ra>80
Beam Angle: 150 degree
Application: LED Light Panel Indoor only
Installation: Suspension, Wall Mount, Recessed, Ceiling Mount
Certificate: CE ROHS,UL,SAA,
Specifications:30x120 flat led lighting
| Model NO. | LVT-PL30120-36W | LVT-PL30120-42W | LVT-PL30120-48W | LVT-PL30120-54W | LVT-PL30120-60W |
| Size | 295*1195*12mm/303*1203*12mm | 295*1195*12mm/303*1203*12mm | 295*1195*12mm/303*1203*12mm | 295*1195*12mm/303*1203*12mm | 295*1195*12mm/303*1203*12mm |
| Power | 36W | 42W | 48W | 54W | 54W |
| Luminous Flux | Warm White 3060lm | Warm White 3653lm | Warm White 3653lm | Warm White 3653lm | Warm White 3653lm |
| Neutral White 3204lm | Neutral White 3482lm | Neutral White 3482lm | Neutral White 3482lm | Neutral White 3482lm | |
| Cool White 3348lm | Cool White 3380lm | Cool White 3380lm | Cool White 3380lm | Cool White 3380lm | |
| Input Voltage | AC 90-265V (UL certification) | AC 90-265V (UL certification) | AC 90-265V (UL certification) | AC 90-265V (UL certification) | AC 90-265V (UL certification) |
| LED Brand Chips | Epistar/Sanan SMD2835 LEDs | Epistar/Sanan SMD2835 LEDs | Epistar/Sanan SMD2835 LEDs | Epistar/Sanan SMD2835 LEDs | Epistar/Sanan SMD2835 LEDs |
| LED Q'ty | SMD 2835 264 PCS | SMD 2835 308PCS | SMD 2835 352PCS | SMD 2835 396PCS | SMD 2835 396PCS |
| Dimmable: | Dimmable or Non-Dimmable | Dimmable or Non-Dimmable | Dimmable or Non-Dimmable | Dimmable or Non-Dimmable | Dimmable or Non-Dimmable |
| Color Temperature | 2800-6500K | 2800-6500K | 2800-6500K | 2800-6500K | 2800-6500K |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Bean Angle | 120° | 120° | 120° | 120° | 120° |
| Life Span | 50000H | 50000H | 50000H | 50000H | 50000H |
| Net Weight | 1.35Kg | 1.35Kg | 1.35Kg | 1.35Kg | 1.35Kg |
| Gross Weight | 1.65Kg | 1.65Kg | 1.65Kg | 1.65Kg | 1.65Kg |
| Housing | Metal Frame White,Panel PMMA White opal | Metal Frame White,Panel PMMA White opal | Metal Frame White,Panel PMMA White opal | Metal Frame White,Panel PMMA White opal | Metal Frame White,Panel PMMA White opal |
| Electrical Connection | 1*cable with 2-pin connector male | 1*cable with 2-pin connector male | 1*cable with 2-pin connector male | 1*cable with 2-pin connector male | 1*cable with 2-pin connector male |
| Installation Methods | Recessed/Suspended/wall Mounted/Celling Mounted | Recessed/Suspended/wall Mounted/Celling Mounted | Recessed/Suspended/wall Mounted/Celling Mounted | Recessed/Suspended/wall Mounted/Celling Mounted | Recessed/Suspended/wall Mounted/Celling Mounted |
| Standard | CE/RoHS/SAA | CE/RoHS/SAA | CE/RoHS/SAA | CE/RoHS/SAA | CE/RoHS/SAA |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years |

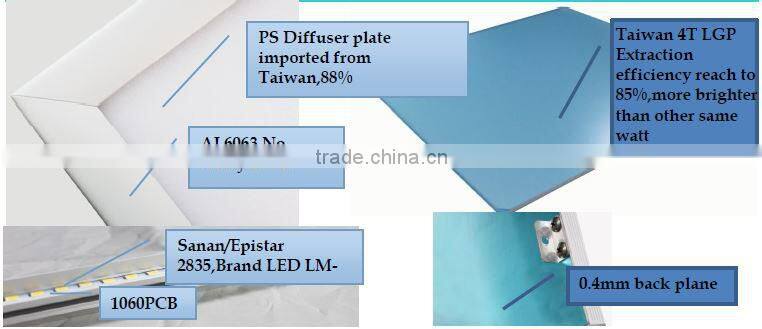

Details
LED Color Options
Application
LED Panel , Ideal for offices, showrooms, hospitals, school and any other facilities with grid style ceilings, also can be hung as a pendant using rear mounted eyelets and support wire.
Certification
Custom Shapes And Sizes
LOEVET LED Panel is the world's first LED integrated Edge-lit Light panel which allows for custom shapes and sizes makeing it perfect for nearly any application. rectangular or custom shaped LED light panels for various application needs.
There are no limitattions on what can be created with LOEVET.Check out our Newly custom shaped LED panel.
1.Easy Surface mounted LED Light Panel 2.Central hollow LED Light Panel
3. Customized outer looking LED Light Panel 4. Arc LED Light Panel
FAQ
Why are LED lights so expensive?
LED lighting is expensive at first sight. The initial investment will pay for itself quickly by the great saving of electricity and the long durability.
Do LEDs exclude radiation?
No. LEDs emit no UV or IR radiation. Which means that it does not get hot under an LED lamp, further no annoying hum or even dangerous radiation is produced.
Do LEDs produce heat?
With the emergence of light on the diodes of the LED heat is generated, but this is dissipated by the design of the LED to the rear and is very small. Under the light beam of an LED, it is not warm, therefore, it does not emit IR radiation. LED lamps can consequently be directed to photosensitive materials without damaging it in any way.
What happens if I drop a LED?
LEDs are extremely resistant. They do not have a hollow body which can implode,in contrast to a filament light bulb. Thus, they are absolutely insensitive to shocks and vibrations.
Can LEDs be dimmed?
Yes. Like any conventional lamp or incandescent lamps, an LED lamp can be dimmed easily. Depending on your room situation and the brightness it can be adjusted individually.
How about the power consumption?
The power consumption of LED is significantly lower than an incandescent bulb or a halogen lamp. Up to 90 percent of the energy can be saved compared with these bulbs. Even the so-called "energy saving lamp" can not keep up with the energy efficiency of an LED. The LED has the worlds lowest power consumption - and with maximum service life. A combination that could not be more economical.
Do LEDs fit into the older version lamps?
Yes. The current bulbs, for example the light bulb or energy saving bulb can be easily replaced with a new, energy-efficient and longer-lasting LED.
Is the brightness comparable to an incandescent bulb?
Yes. With the use of LED lamps one can illuminate any room just as bright as it would be with a conventional bulb.
Where is the difference to an energy saving bulb?
The difference is generally in the operation, energy efficiency, light output, lifetime and recycling. An energy saving bulb works on the use of toxic mercury and must be disposed separately. Furthermore, the energy-saving lamp with a light output of only 10 percent, and a burning time of 12,000 hours compared to an LED with an output of 30 percent and a lifetime of 35,000 hours is not efficient enough in the long term to remain a viable product.
Do LEDs require a lead time before they develop all their brilliance?
No, definitely not. Unlike the energy-saving bulb, which in some cases takes a few minutes to shine in its full brightness, LED light shines from the first second after switching on the full light intensity.
In what wattages are LEDs available?
LEDs are generally available in a range from 1 watt to 100 watts. Thus, they prove once again a high degree of flexibility in terms of lighting and design with light. For each function in each frame, there is a suitable LED.
What funtions do you need?
No problems!
