Help CenterTungsten Carbide Wear Rings
US$ 50 - 120
MOQ: 3 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
KS Carbide
Type:
Power Tool Parts
Payment & Shipping
Payment Methods:
Port of Shipment:
CMP
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Sichuan, China
Brand Name
KS Carbide
Type
Power Tool Parts
Product Description
Tungsten Carbide Roll Ring as the characters of high wear resistance, high corrosion resistance and good compressive properties.It's widely used in petrochemical industries and other industries which call for high properties of the mechanical sealing rings or prats.
Our material covers: WC-Co alloy, WC-Ni alloy, WC-Ni/Co alloy, WC-TiC-Ni/Cr alloy etc.
Cutstar Carbide Standard Grades
Cobalt Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91.0 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
Remarks:
1. 1N/mm²=145.038PSI
2. Cutstar Carbide can develop new grade for customer's special application
2. Cutstar Carbide can develop new grade for customer's special application
Carbide seal rings basic dimensions (mm)
| D | d | H |
| 10~450 | 5~400 | 1.5~100 |
Packaging & Shipping
Shipping
Our Services

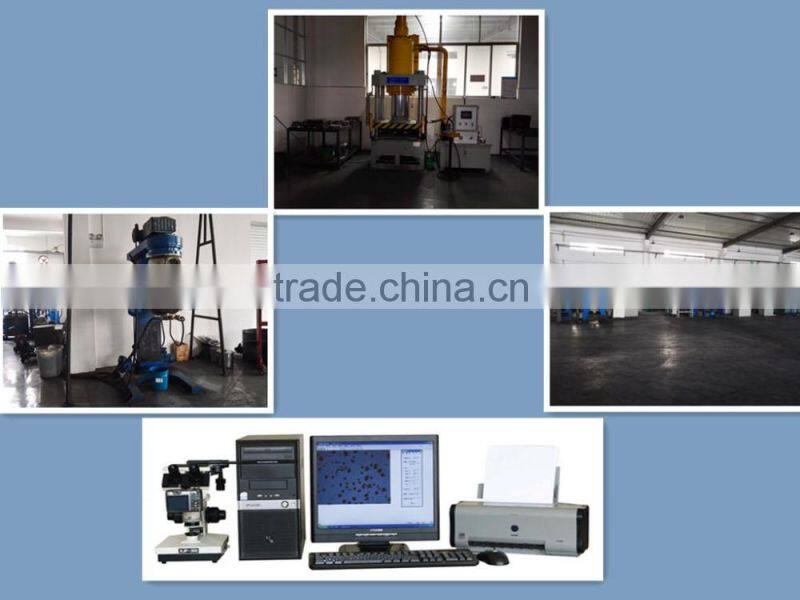

Company Information
Professional Chinese manufacturer of Tungsten Carbide products for 20 years.

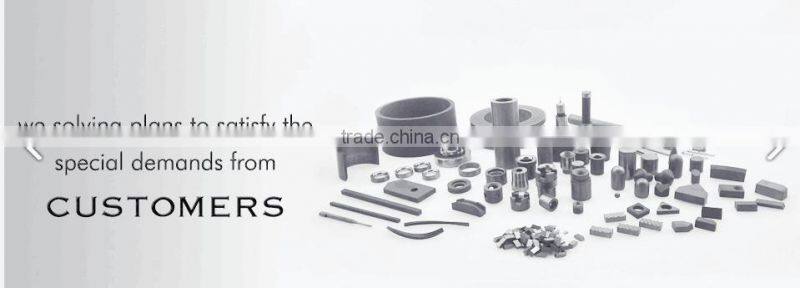

Specialized in TUNGSTEN carbide wire guides,shims, wear parts, drilling bits, carbide rods, drawing dies, cold forging dies and customized products.
