High quality Chinese Manufacture Down pipe roll forming machine

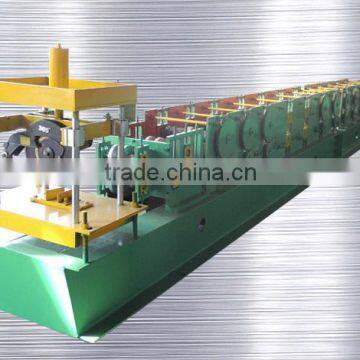

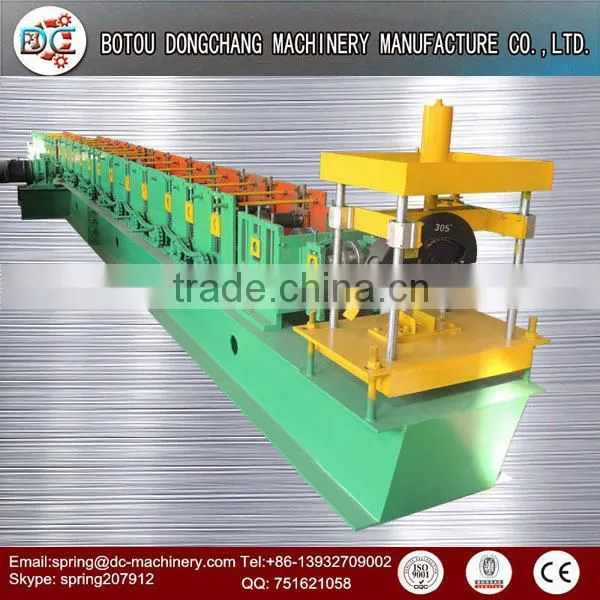

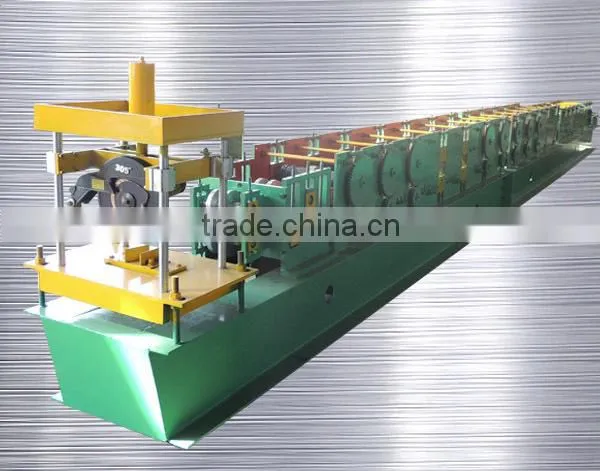

Down pipe roll forming machine
Decoiler |
1 set |
Forming machine |
1 set |
Pressing die |
1 set |
Cutting device |
1 set |
PLC control box |
1 set |
Hydraulic pump station |
1 set |
Production support table |
1 set |
Down pipe roll forming machine Technical description
A .Decoiler:
Manual decoiler
Inner Diameter: Φ450 – Φ600 mm
Out Diameter: 1500 mm
Max capacity 5000kgs

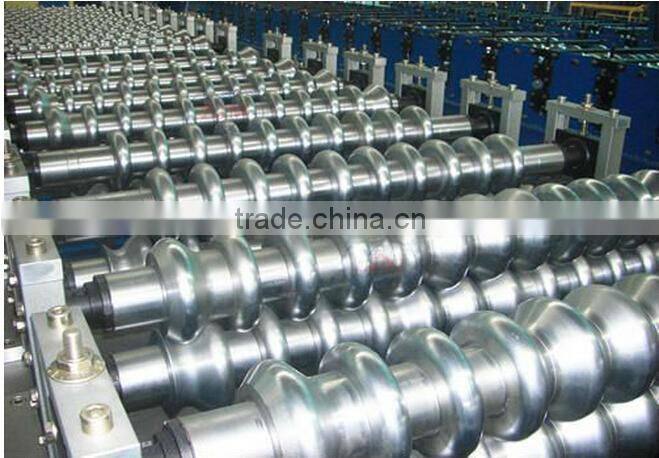

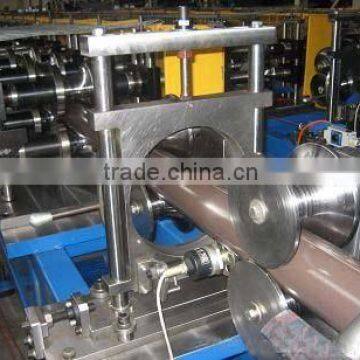

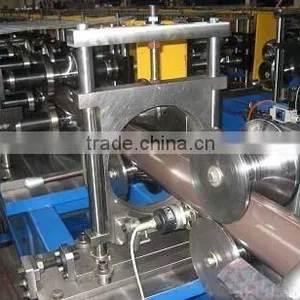

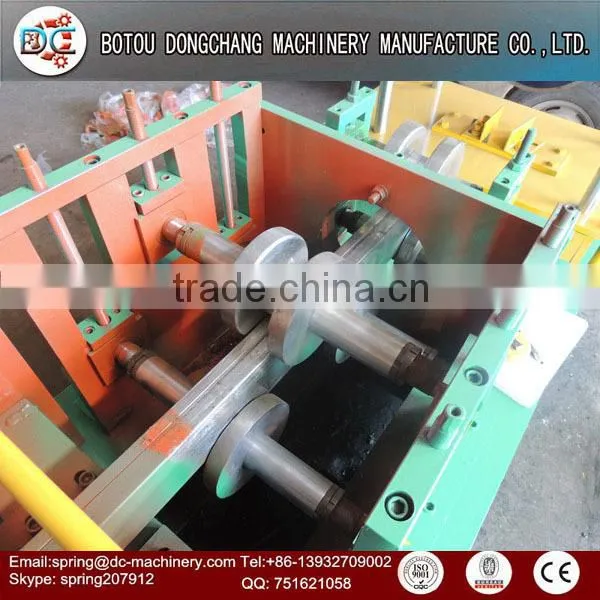

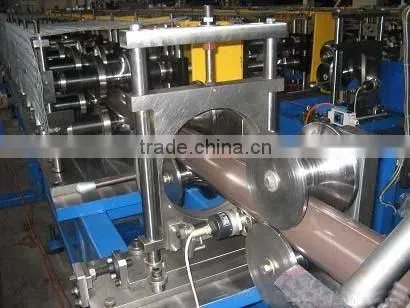

B .Roll forming machine
|
Roll forming machine
|
Material thickness |
0.3mm-1.0mm |
Host big frame structure |
Steel welding |
|
Roll forming row number |
16 ranks |
|
Forming axial material |
45# Steel |
|
Made board |
16 mm |
|
Shear materials |
Gr12 |
|
kind of drive |
Reduction box+ shaft drive |
|
Equipment total power |
7.5KW |
|
Equipment molding speed |
7-8m/min |
|
Driven system |
Chain + Sprocket |
|
Suppress specifications |
Based On Customer Demand |
|
Roll forming Speed |
10-12 m/min |
|
|
Pipe Diameter range
|
Round pipe: OD1.2inch~3.5inch or 30mm~89mm Square pipe : 25x25mm-70x70mm (the size adjustable as different profile drawing) |

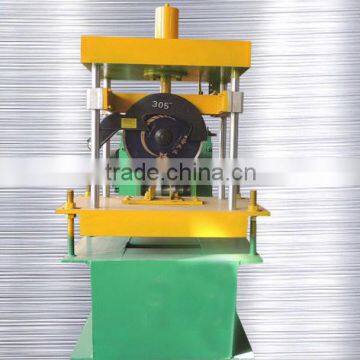

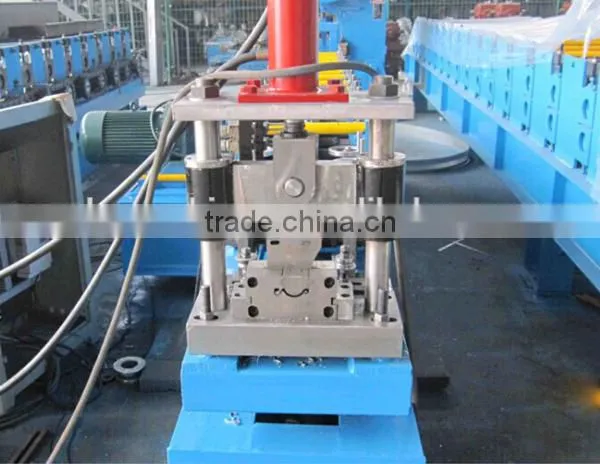

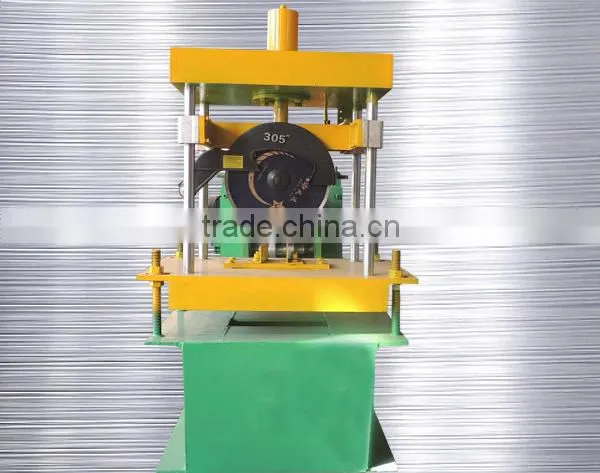

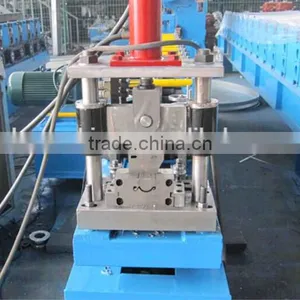

C. Cutting device:
Cutting type: hydraulic cutting
Power:5.5kw
It adopts the hydraulic drive and automatic location to decide the dimension
and cut the target products.
Material of blades: Cr12,quenching treatment
The cutter thickness: 15-30mm
D. Control system:Type: PLC Frequency Control System
PLC Brand: Panasonic,SIMENS,TAIDA,SANJING
Length Error: ±2mm
Botou Dongchang Machinery Manufacture Co.,Ltd is the largest forming machine producer in North of China. We have more than 40 years production history. Insisting on the introduction of foreign advanced technology and combining with domestic actual situation all the time. Our roof tile roll forming machine, c-purlin machine, color coated equipment, dust suppression plate forming machine, sandwith panel produce line, shearing machine, bending machine, glazed roof tile roll forming machine, floor deck roll forming machine and other equipment has the domestic leading level, some products reached the international advanced level.
Down pipe roll forming machine
1. we provide our customers with 12 months' warranty.
2. Any parts damaged due to quality problem shall be changed for free within the first year.
3. Technical guide is provided during whole life of the machine.
4. Oversea services will be provided but any cost thus incurred will be paid by the buyers.
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine.The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- What is the payment term?
- Our payment term is TT, 30%TT as the deposit, before shipping pay the last 70%TT
H:- Any certification:
- Yes, we have CE TUV BV certification.
If you have any question or need about our Down pipe roll forming machine,please draw up your Inquiry Details in the dialog box Below. Click "Send" Then I will serve you . And there are also other contacts you can add me.Don't hesitate to contact me.
