840 Roofing sheet curving machine, sheet metal cutting and bending machine
Technical Parameters
| Minimum Curving Radius | R=450mm |
| Raw Material Thickness | 0.2-0.7mm |
| Speed of Arc Line | 10-12m/min (adjustable) |
| Speed | 4-6m/min |
| Size | about 2200mm×950mm×1500mm |
| Control | Delta PLC computer control ( frequency converter) |
| Hydraulic Power | 4KW |
| Roller Material |
45#forged steel, with surface polished and coated with 0.05mm thickness hard chrome |
| Shaft Material | high grade 45#steel with diameter 75mm |
| Pressing Die | Cr12mould steel with quenched treatment |
| Total Weight | 2200KGS |
Business Conditions
1.Price: FOB Tianjin 7000USD
2.Payment Term: 30% T/T in advance, 70% T/T before shipment
3.Delivery Time: within 15-25 Work Days after receipt of the down payment
4.Warranty: 12 months
5.Installation and Commissioning: Professional engineers will be sent for installation and commissioning. Buyer pays each engineer 100USD/day besides the round-trip tickets, room and board.
The Chart of Process Flow
Equipment Components :Man-Made Uncoiler-Roll Forming Machine-Computer Control System-Hydraulic Control System
Curve Roof Sheet Roll Forming Machine tile type drawing

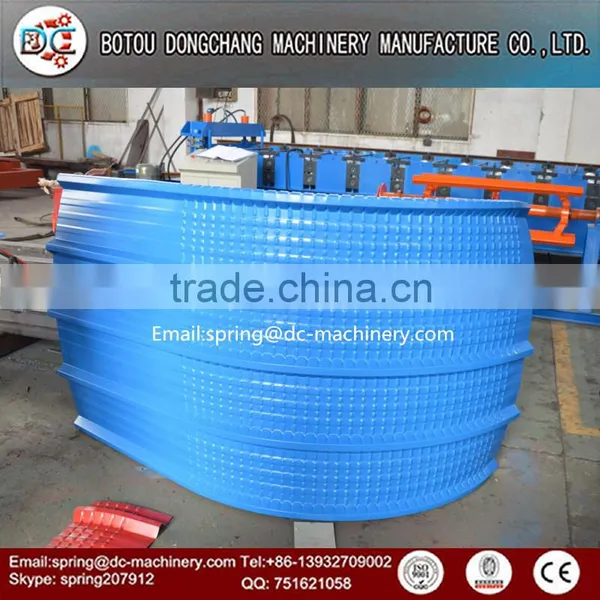

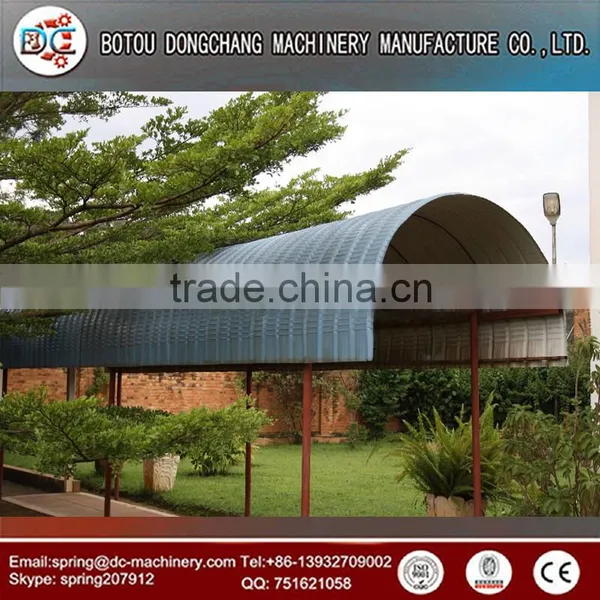

Curve roof sheet showing

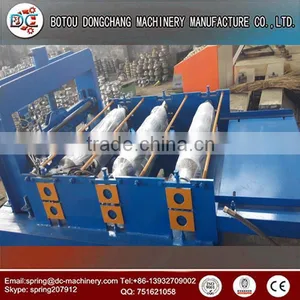

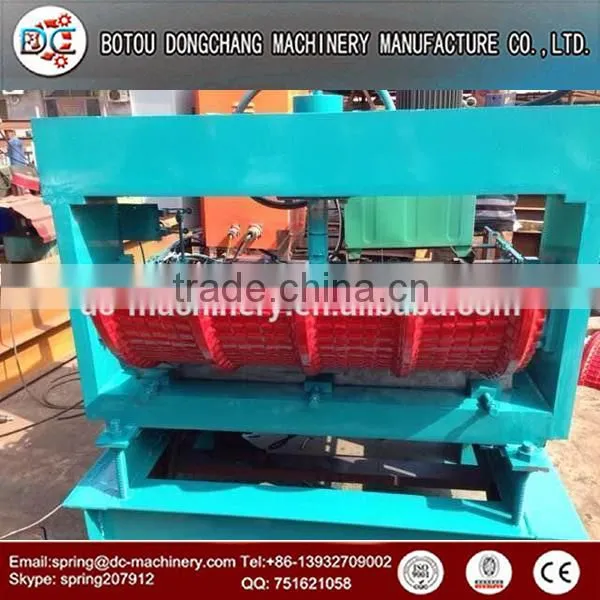

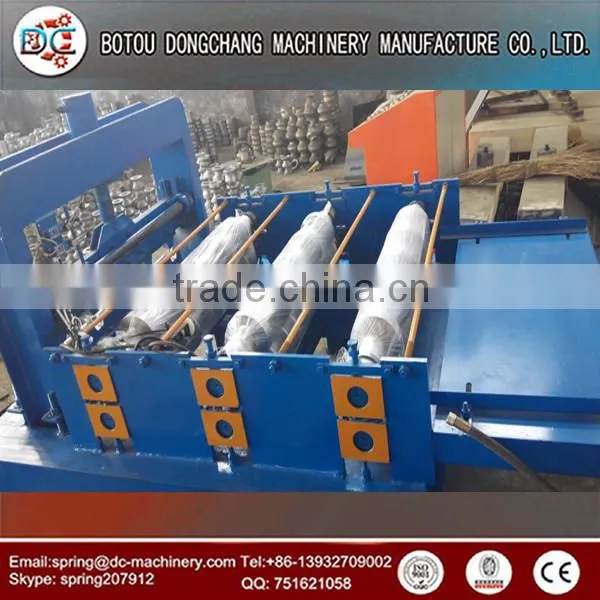

The machine parts details showing

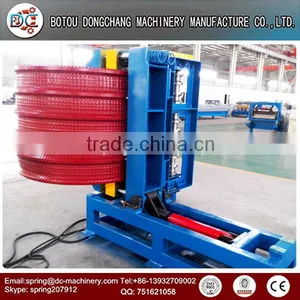

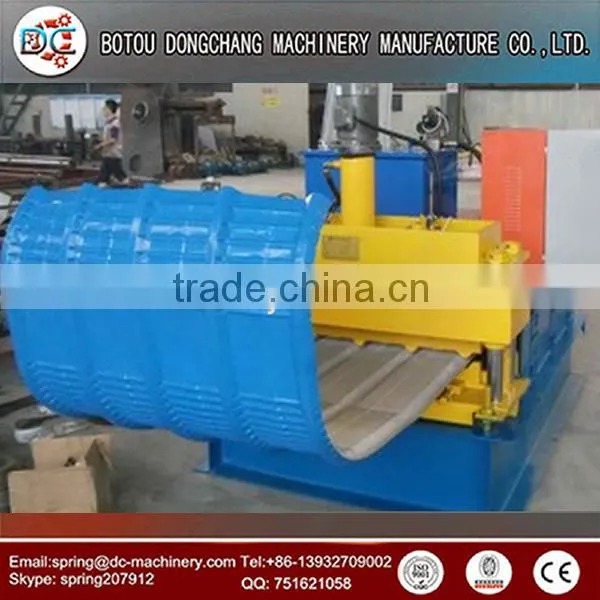

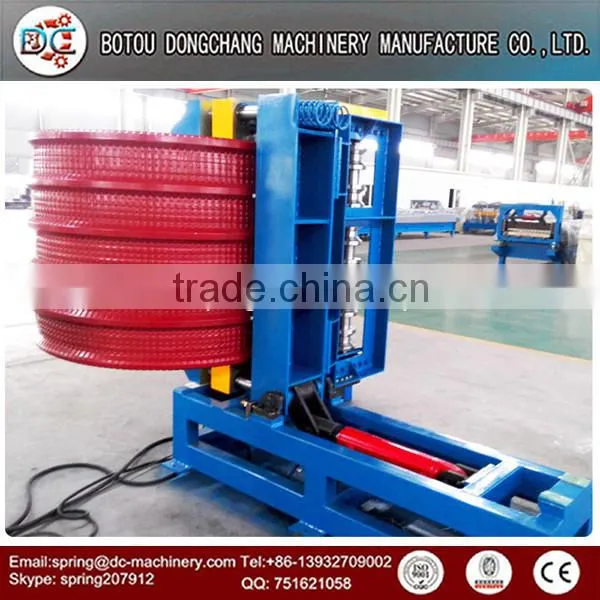

Arch roof sheet cold roll forming machine
Introducation:
Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.
Machine Feature:
1.Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length
Products Feature:
1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.
After-sale service of curve roof roll forming machine
Our products are widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.
Within in one year if any parts go broken we will send new ones to replace for free,after the
warranty period,we will help you repair the machine ,you only responsible for the labour and
parts if the machine have some problems.
Welcome to inquiry and visit ,we will try our best serives for you .
