CEKE 20W MMDS TV Transmitting System For Outdoor Type
CKMB-20
Product Introduction
A. Optimized products indicators, meet the requirement of Wide Frequency Band transmission, reduce investment,save energy to decrease operation cost.
C. Compatible for 4 different Wide Frequency Band transmission standard :
ATSC (USA) / DVB (Europe) /ISDB (Japan) / DTMB (China)
Main Features
1) Low power consumption and linearization design improves transmitting power and reduces nonlinear distortion products.
2) Very low local oscillator phase noise and group delay are compatible with analog and digital signal transmission.
3) ALC keeps constant power output.
4) 10MHz built-in precise reference source realizes precise frequency phase lock control(optional).
5) Outdoor design improves the effective transmission power and reduces transmitting feeder costs. The roof structure case especially suit for southern rain thermal environment.
6) Local condition monitoring and control.
7) Wireless remote condition monitoring and control(optional).
Specification
RF Output Frequency |
2500~2700MHz(frequency can be choosen 200MHZ freely in this range) |
|||||||
Max Bandwidth: within 200MHZ | ||||||||
RF Output Interface |
50Ω/N connector |
|||||||
Return Loss: 20dB | ||||||||
RF Frequency Response |
BW: 200MHz |
|||||||
Passband Fluctuation: ≤2.0dB | ||||||||
Any Within 10MHz: ≤1.0dB | ||||||||
Group Delay Characteristics |
≤40nsec |
|||||||
Local Frequency |
2033MHz(or specified by user) |
|||||||
Stability: 1×10-6 | ||||||||

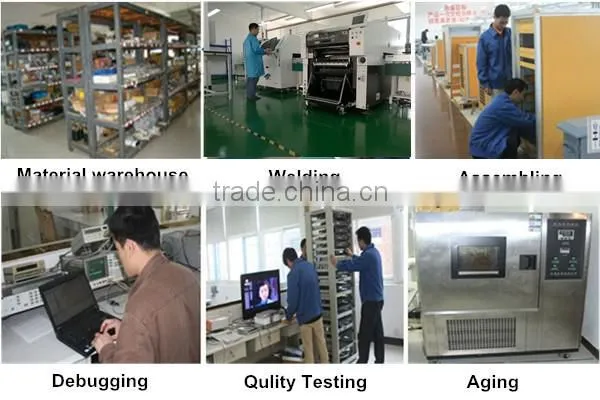

Production Flow
Packaging&Shipping
Company Introduction
Company file
Since established in High-tech Information Industrial Park Guilin, China in 2000, Guilin CEKE Communication Equipment Co., Ltd is dedicated in R&D, manufacturing, sales, engineering, technical support and after-sales service of MMDS transmitters, digital TV transmitters/repeaters as well as TV and radio microwave transmission equipment for radio &TV broadcasting. Our products have been certified by ISO9001 and got more than 10 patents, and have been exported to customers in 40 countries and regions Europe, America, Central Asia, Southeast Asia, Africa and Oceania.
We are not only provider of equipment but also a global provider of integrated solution for pay-TV broadcasting. We have successfully DTTV system integration projects countries like Sri Lanka, Kyrgyzstan, Costa Rica, Madagascar, Vanuatu and Equatorial Guinea.
