1600W Wide Frequency Band Satellite Signal TV Transmitter
CKUB-T1600
Product Introduction
A. Optimized products indicators, meet the requirement of Wide Frequency Band transmission,
reduce investment, save energy to decrease operatin cost.
B. Satisfy different signal coverage application.
C. Compatible for 4 different Wide Frequency Band Transmission Standards:
ATSC (USA) / DVB (Europe) / ISDB (Japan) / DTMB (China).
Main Features
1) 470--862MHz broadband response and low noise design.
2) Design of low power consumption and linearization advances emitting power of the transmitter
reduces nonlinear distortion.
3) Very low group delay feature, suitable for digital signal transmission.
4) ALC keeps output of constant power, output VSWR detecting protection.
5) Apply to single-channel or multi-channel UHF digital television transmission system.
6) Be used in the broadband repeating of HFC, AML, or MMDS digital TV signal.
7) Realize wireless network coverage of digital TV at a low cost.
8) Modular design simplifies installation, field services and upgrade.
9) Automatic and manual switching backup systems available.
10) Build-in lightning protector with current-dividing series power prevents lighting surge and instant overvoltage.
11) Local monitoring and control.
12) Wireless remote monitoring and control (Optional).
Specification
TECHNICAL SPECIFICATIONS | |
Product Description |
1600W Wide Frequency Band Satellite Signal TV Transmitter |
Frequency Range |
470~862MHZ (Arbitrary 100MHz) |
Input signal |
RF |
Shoulder |
≤-36 dB(Single channel) |
(MER) |
≥ 32 dB |
Input port impedance/connector |
50Ω/SMA-50K |
Output port impedance/connector |
50Ω/1-5/8 (customization available) |
Power supply |
3-phase 380V±10% or 2-phase 220V±10% 50Hz or 60Hz |
Cooling system |
temperature-controlled forced air cooling |
Operating temperature range |
0 ~ 45℃ |
Dimension (W×H×D) |
620 X 1400 X 960mm/260Kgs * 2 |

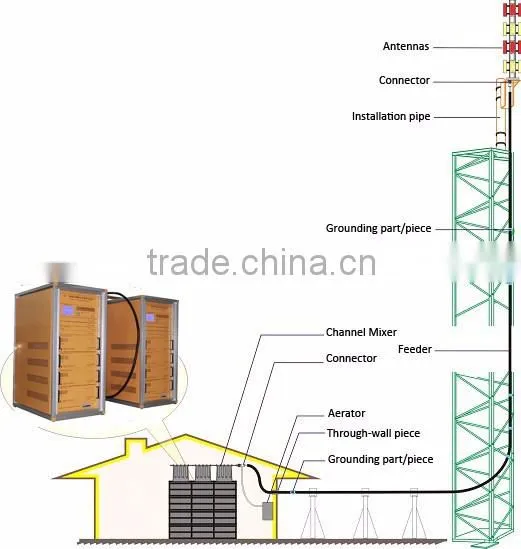

Application
Production Flow
Packing & Shipping
Company Introduction
Company file
Since established in High-tech Information Industrial Park Guilin, China in 2000, Guilin CEKE Communication Equipment Co., Ltd is dedicated in R&D, manufacturing, sales, engineering, technical support and after-sales service of MMDS transmitters, digital TV transmitters/repeaters as well as TV and radio microwave transmission equipment for radio &TV broadcasting. Our products have been certified by ISO9001 and got more than 10 patents, and have been exported to customers in 40 countries and regions Europe, America, Central Asia, Southeast Asia, Africa and Oceania.
We are not only provider of equipment but also a global provider of integrated solution for pay-TV broadcasting. We have successfully DTTV system integration projects countries like Sri Lanka, Kyrgyzstan, Costa Rica, Madagascar, Vanuatu and Equatorial Guinea.
