10W Digital TV Repeater

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port SHENZHEN
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China		Brand Name	CEKE
Model Number	DTV-UDWG010F

Product Description

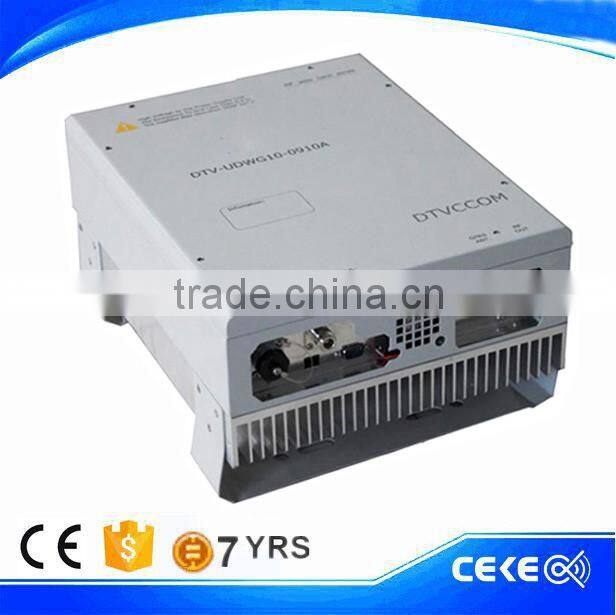

10W Digital TV Repeater

Product details

DTV-UDWG010F

Product Introduction

A. Optimized products indicators, meet the requirement of wide frequency band transmission, reduce investment and save energy to decrease operation cost.

B. Satisfy different signal coverage application.
C. Compatible with 4 different digital TV standards: ATSC (USA) / DVB-T/T2 (Europe) /ISDB-T (Japan) / DTMB (China)

Main Features

1) Wild-type waterproof design, simple and attractive appearance, suitable for outdoor work.

2) Support all standard digital TV, mobile TV signal transmission and signal complement point, support single spectrum and wide-band (multi-spectral) amplification.

3) Patented RF delay technology. Avoid the interference with multi-point signal cross-coverage.

4) Large range AGC control circuit (50dB), high-precision ALC compensation function, ensure the output power stability when external signal large changes

5) Complete protection functions: self-excitation protection, temperature control protection, signal fast impact protection, power protection, temperature control protection, password security control.

6) Microcomputer control, support remote debugging and monitoring after equipped with communication module (GPRS).

7) Equipment customization: optical input type, microwave input type, single frequency network delay adjustable type.

Specification

TECHNICAL SPECIFICATIONS
Frequency Range	470~862MHZ (arbitrary range within 100MHz)
Input signal	RF
Shoulder	≤-36 dB(Single channel)
(MER)	≥ 32 dB
Input port impedance/connector	50Ω/SMA-50K
Output port impedance/connector	50Ω/1-5/8 (customization available)
Power supply	AC220V±20%, 45Hz-60Hz; AC110V±20%,45Hz-60Hz; AC60V±20%,45Hz-60Hz(optional)
Cooling system	temperature-controlled air cooling
Operating temperature range	-10℃ ~ 50℃
Dimension (W×H×D)	305×465×189mm/10kg

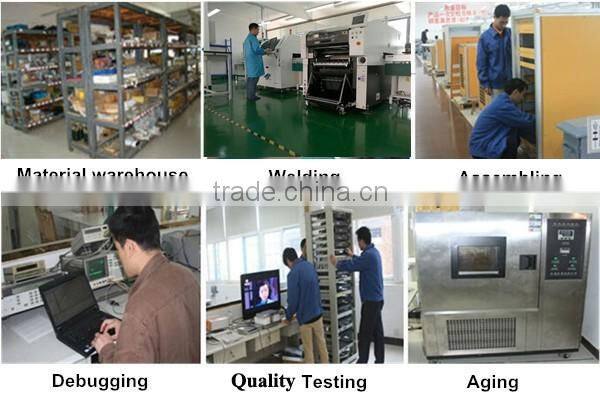

Production Flow

Packaging&Shipping

Company profile

Company file
Since established in High-tech Information Industrial Park Guilin, China in 2000, Guilin CEKE Communication Equipment Co., Ltd is dedicated in R&D, manufacturing, sales, engineering, technical support and after-sales service of MMDS transmitters, digital TV transmitters/repeaters as well as TV and radio microwave transmission equipment for radio &TV broadcasting. Our products have been certified by ISO9001 and got more than 10 patents, and have been exported to customers in 40 countries and regions Europe, America, Central Asia, Southeast Asia, Africa and Oceania.
We are not only provider of equipment but also a global provider of integrated solution for pay-TV broadcasting. We have successfully DTTV system integration projects countries like Sri Lanka, Kyrgyzstan, Costa Rica, Madagascar, Vanuatu and Equatorial Guinea.
