Professional ISDB-T Modulator

Professional ISDB-T Modulator

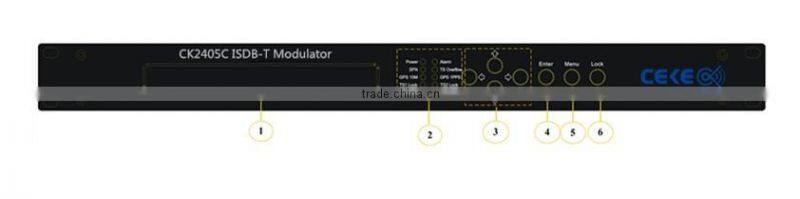

Front Panel Illustration

1.  LCD Screen; 2. Indicators; 3.  Left /Right /Up /Down Arrows; 4. Enter key; 5. Menu Key; 6. Lock key

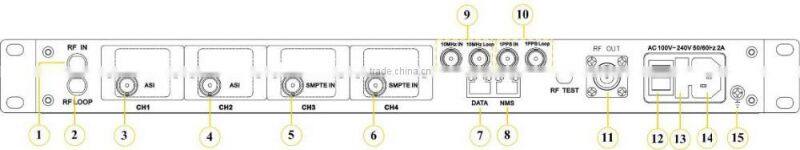

Back Panel Illustration

1. RF Input Port; 2. RF Loop out Port; 3. ASI Input Port 1; 4. ASI Input Port 2; 5. ASI Input Port 3; 6. ASI Input Port 4; 7. Data Port (not in use temporary); 8. NMS Port; 9.  External Clock 10MHz Input & Loop out Ports; 10. GPS 1PPS Input & Loop out Ports; 11. RF Output Port; 12. Power Switch; 13. Fuse; 14. AC Power Socket; 15. Grounding

Main Features

n Fully complying with ISDB-T (ARIB STD-B31) and ISDB-TB standard

n 4 ASI in, 1 RF in, 10MHz reference clock and 1PPS in

n Layered transmission with A, A+B, A+B+C hierarchy modes

n ISDB-T BTS input (with IIP packet),  support single frequency and multi frequency network

n Three transmission modes: Mode1(2k), Mode2(4k), Mode3(8k)

n Supports adaptive linear digital pre-distortion (DPD)

n Supports adaptive non-linear digital pre-distortion (DPD )

n MER≥42db

n RF output range: 30~960MHz with 1Hz step

n Constant temperature crystal oscillating and excellent frequency stability (reach up to 0.1ppm)

n LCD display, keyboard and SNMP software operation
