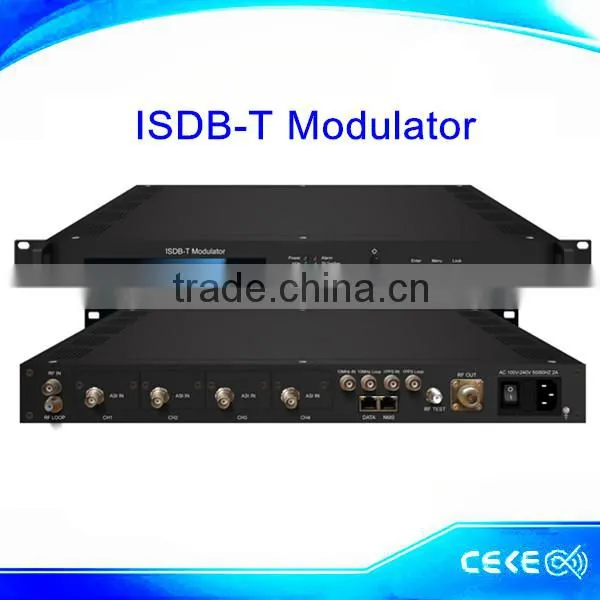

Help CenterISDB-T Modulator
Related Products
ISDB-T is the terrestrial digital TV which is developed for adapting the South American countries such as Japan, Brazil, and Argentina and so on. The channel coding and the modulating of the modulator are fully supporting ARIB STD-B31 standard, supporting double TS hot spare inputting, supporting single frequency network and multiple frequency network, supporting the function of linear and non-linear pre-correction and also supporting layered transmission and the three standard transmission modes. Moreover, the system of the modulator can be online upgraded and controlled by network; thereby the modulator can be widely used for setting up ISDB-T digital broadcasting network and producing and testing the designs which are living up to the ISDB-T standard’s set top box.

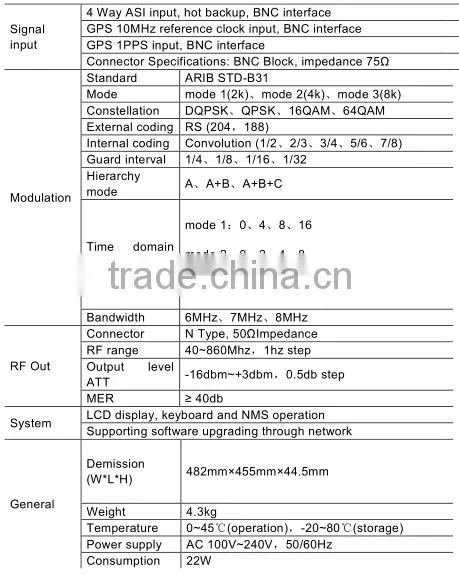

Features
1. Fully complying with ISDB-T (ARIB STD-B31) and ISDB-TB standard
2. Single frequency and multi-frequency network
3. Layered transmission with A, A+B, A+B+C hierarchy modes
4. DVB TS input (without IIP packet), TS multiplexing, re-multiplexing and multiplexed frame generating;
5. ISDB-T BTS input (with IIP packet), IIP packet parsing and multiplexed frame generating
6. Three transmission modes: mode1(2k), mode2(4k), mode3(8k)
7. Liner and nonlinear pre-correction function
8. MER≥40db
9. RF output range: 40~860MHz in 1Hz step
10. 4 channel ASI input, hot backup
11. Constant temperature crystal and excellent frequency stability
12. RF output range of 100~860Mhz, 1hz step
13. 2 ASI inputs with loop out and hot-backup online
Guilin CEKE Communication Equipment Co., Ltd. established in 2000, is one of the leading microwave equipment manufacters with 16 years experience. We have engaged in microwave equipment research, design, production, installation, debugging,maintance as well as system integration.
Q1. Could you please introduce which countries have you been cooperated with?
A1: Our products have been widely sold both at home and abroad, and our main customers come from five continents about 30 countries, such as Uruguay, Chile, Bolivia, Brazil, Costa Rica, Dominica, Trinidad and Tobago; Mongolia, Laos, Vietnam, Georgia, Burma, Philippines, Pakistan, Iran, Kyrgyzstan; Nigeria, Senegal, Madagascar, Congo, Ghana, Tanzania, Uganda, Liberia, Guinea-Bissau, etc.
Q2. Can you introduce your company?
A2: We have been engaged in high-frequency microwave equipment and terrestrial digital TV transmitter research, design, production, installation, debugging and maintenance for more than 16 years. CEKE has a 15000 square meters CEKE Science park under construction, which was invested RMB90 million and put into usage in 2016. Welcome to visit it.
Q3. What are your Core Competence compared with other companies?
A3: (1) Wide Frequency Band Transmitting Solution (bandwidth up to 80-100MHz) ;
(2) M-SFN networking mode, we provide large-scale networking base on engineering construction experience;
(3) Simulation Coverage Planning, we can simulate the signal coverage effect with longitude and latitude and tower height through our global geographic information;
(4) Design Platform & Wireless Terrestrial Digital TV System Integration, we provide one-stop service so that customers could buy the whole system and equipments.
Q4: Are there any installing training for customers?
A4: CEKE welcome customers sharing experience in our company, and we provide one week training for customers, including transmitter technology, engineering and maintaining regulations. We also can dispatch engineers overseas to install equipments, but customers should bear the cost of return-trip tickets, visa fees, accommodations, etc.
Q5: Should customers need to purchase backup devices?
A5: We highly recommend customers purchase backup devices, or at least buy backup modules. Because there are uncertain factors could cause damages when running equipments, such as lightning shock, unstable voltage, manual improper operation, etc. Therefore, backup devices protect the broadcasting from the interrupting.
Q6. If we cooperate with you, can we get enough guarantee and interest?
A6: We are committed to provide customers with the most competitive price, one year free warranty period(Non-artificial damage) and maintenance for lifetime to enhance our long-term cooperation. For mutual benefit, we spare no efforts in satisfying our customer in every possible way.
Q7. Could you introduce culture of your company and how do you comprehend team spirit?
A7: (1) An enterprise will do nothing without team spirit; a disunited nation is just like a heap of loose sand, and it is subject to invasion.
(2) There is no perfect individual, but there must be a perfect team.
(3) In the modern society, the success of a enterprise is not by accident, but due to their own strong core competency.
Q8: What is your producing period after we place an order?
A8: Normally, we will complete the production from 20 to 30 days after confirming the order, which influenced by the quantity complexity level of equipments.
Q9: Which instruments will be used when testing and inspecting equipments at the customer installation site?
A9: We recommend clients should test and record main technical parameters of signal source before transmitting signal source into transmitters. After transmitters operating smoothly, customers can test the signal whether meet expectation requirements in far range, middle distance and near area, which based on actual coverage requirements. In order to master the signal coverage situations, please select testing places as much as you can and these testing sites should be typical which cannot be obstructed. Required equipments should test signal input and output level, spectrum shoulder, MER and display signal frequency spectrum.
