Topright brand high Thermal efficiency Silicon Nitride Glow Igniter
- 5000 Piece / Pieces per Month
- shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Topright | Model Number: | TH128 |
Product Description
Topright supply Silicon Nitride ceramic heater-Small Dimension
Topright supply Silicon Nitride ceramic heater-Fast Heating
Topright supply Silicon Nitride ceramic heater-Good Corrosion
Topright supply Silicon Nitride ceramic heater-Long Working life

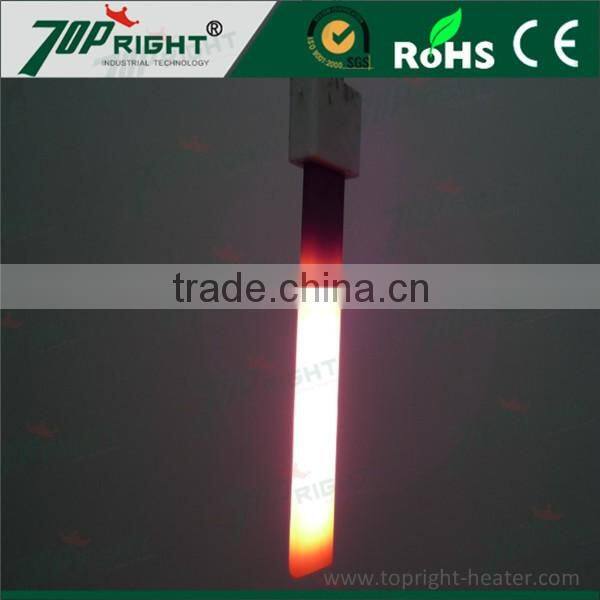

Topright silicon nitride glow igniters are normally rectangular in shape. These igniters have a hot
operation zone up to 1000 C and a cold zone in the contact area. Encapsulated terminal can
prevent short circuit caused by conductive contamination. They can be operated with or
without a controller. Silicon nitride igniters have several times the durability than that of silicon
carbide products.Dimension, power and input voltage are customizable according to your need.

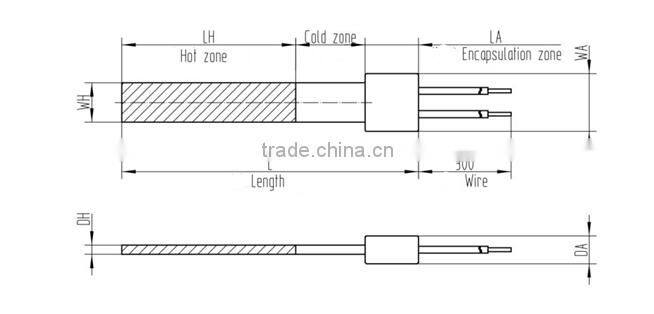

Type &Parameters:
Model | Dimension | Paramete | ||||||||
L | LH | WH | LA | WA | DA | DH | Voltage(V) | Wattage(W) | Max.Temp.(C) | |
TH138 | 138 | 94 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 700/450 | 1000/800 |
TH128 | 128 | 84 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 600/400 | 1000/800 |
TH95 | 95 | 58 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 400 | 1000 |
TH52 | 52 | 15 | 17 | 23 | 25 | 12 | 4 | AC110 | 100 | 1000 |
TH135 | 135 | 98 | 23 | 23 | 31 | 12 | 4 | AC220-240 | 900/600 | 1000/800 |
TH115 | 115 | 76 | 30 | 25 | 38 | 12 | 4 | AC220-240 | 900/600 | 1000/800 |

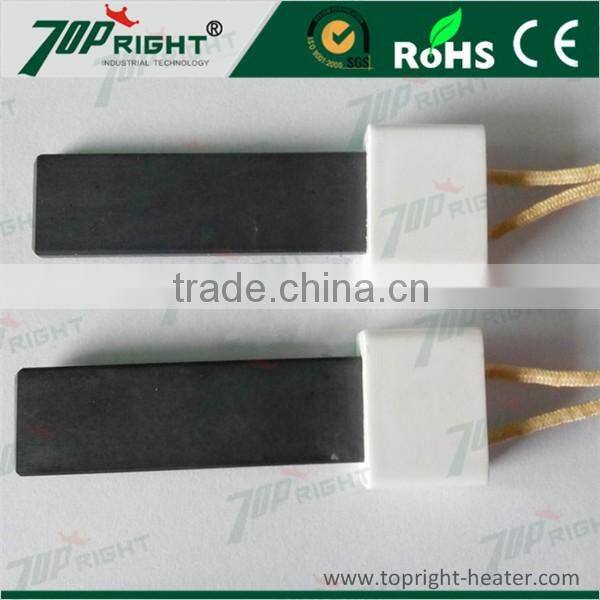

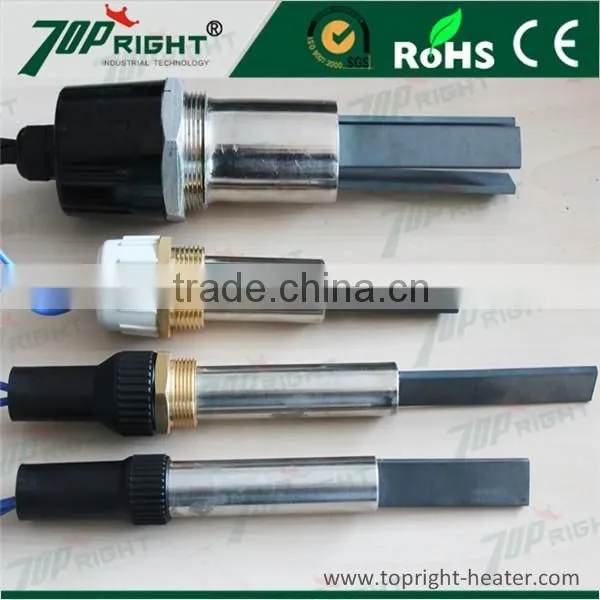

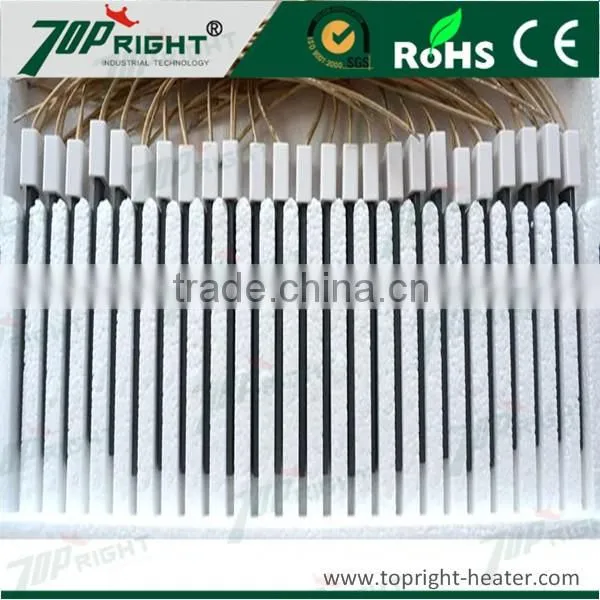

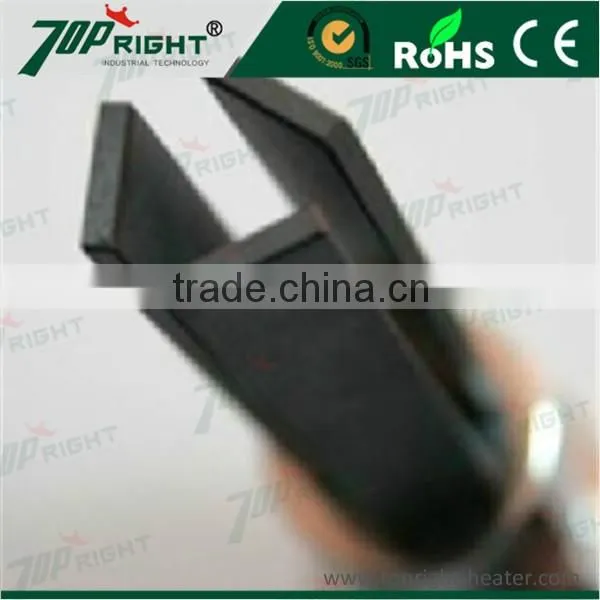

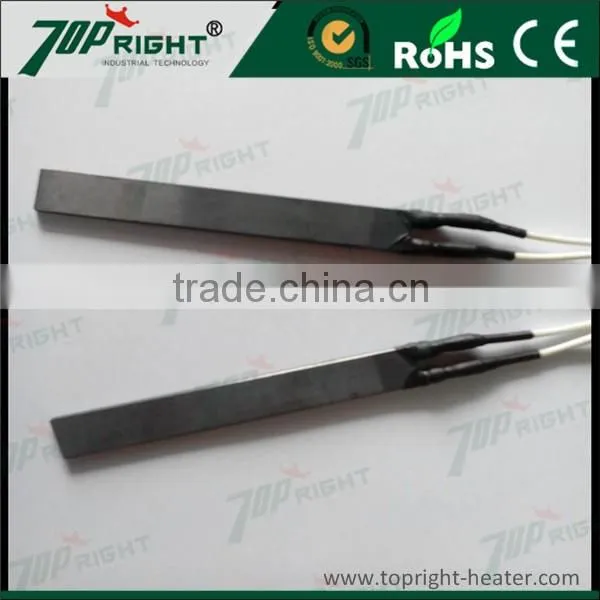

Topright Brands Silicone Nitride Glow Igniter Photos:

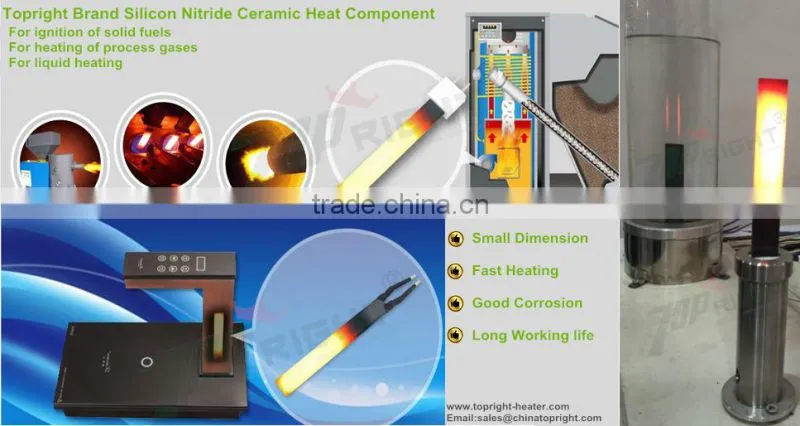

Application:

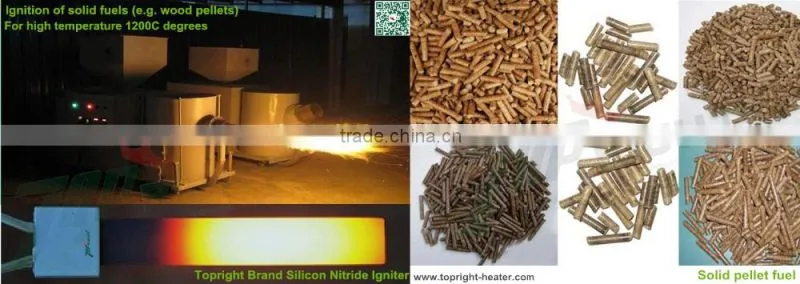

1.Ignition of solid fuels (e.g. wood pellets)
2.Ignition of gas or oil
3.Reburning or igniter of exhaust fumes
4.heating of process gases
5.Pyrotechnics
6.Brazing machines
7. Heater for corrosive atmosphere
8.R&D - laboratory equipment, measuring and testing
equipment, reactors
9.Tool heating
10. Charcoal barbecue grill
Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years, constantly pursuit of technological value-added products,promote industry technology progress, Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
Welcome to contact us for more details ,most competitive price for you!
