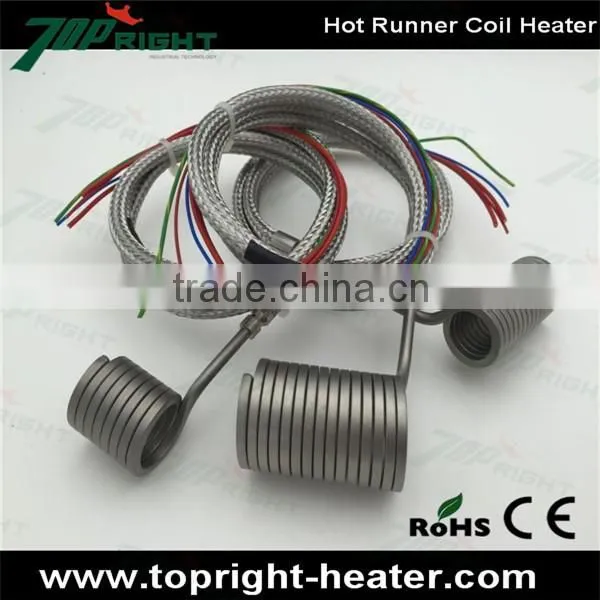

Coil heater from Topright
Product description:
Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.
Specification:
Name of product |
Hot runner heater |
Inner Diameter of coiled heater |
8-38mm( + 0.05mm) |
Coil style Length |
40-200mm (+ 0.5mm) |
staright style length |
200-3000mm (+ 0.5mm) |
Cross-section |
Round Dia.3mm;3.3mm;3.5mm Square: 3x3mm;3.3x3.3mm,4x4mm, Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm |
Tube Material |
SUS304/SUS/310S/Incoloy800 |
Tube color |
sliver or annealed black |
Insulation |
High pure Mgo |
Inner heating element |
NiCr8020 |
Voltage |
12v;24v;110v;220v;240v;380v |
Wattage |
200-3000w( 6.5W/CM2 ) + 5% tolerance |
Max. Temperature: |
650°C |
Built-in thermocouple |
with or without J /K TC(Available) |
Delivery Time |
3-5 days(10-500pcs) 7 days(more than 500pcs) |
Coil Heater In Topright Industrial:

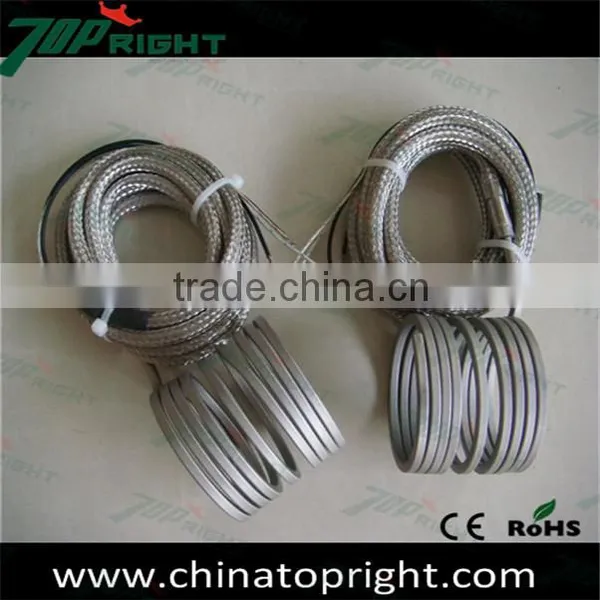

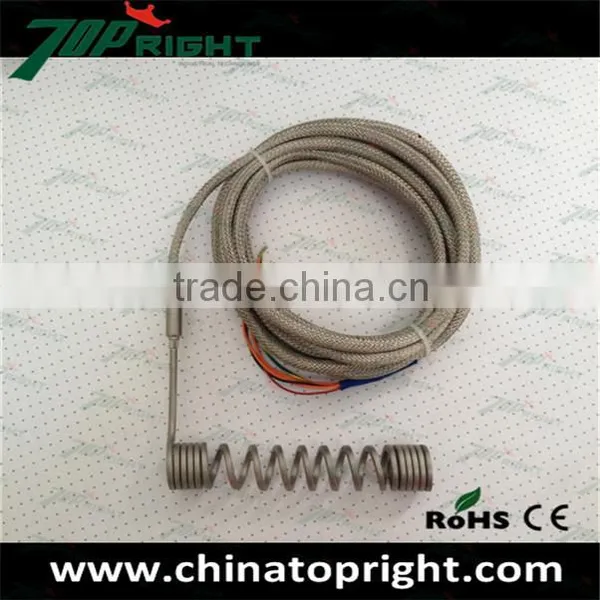

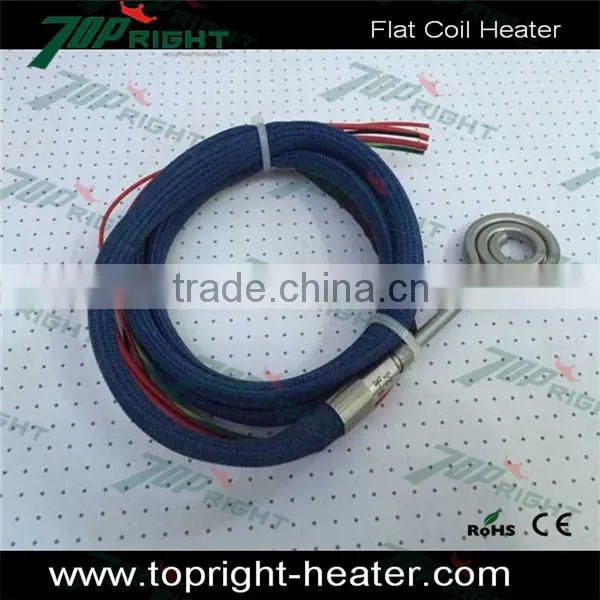

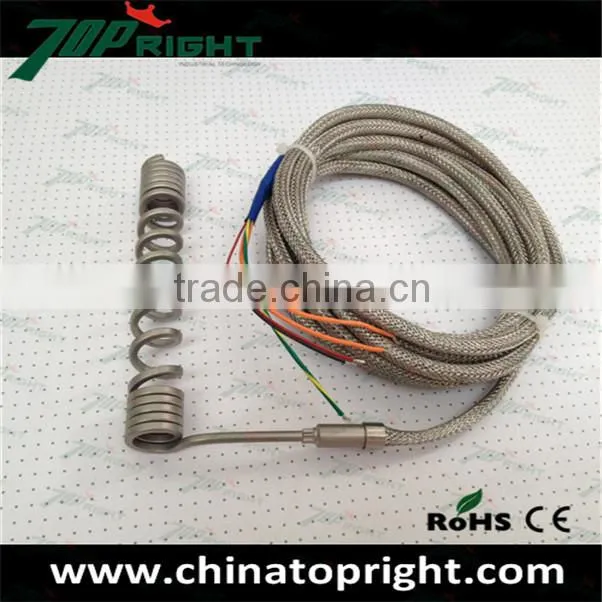

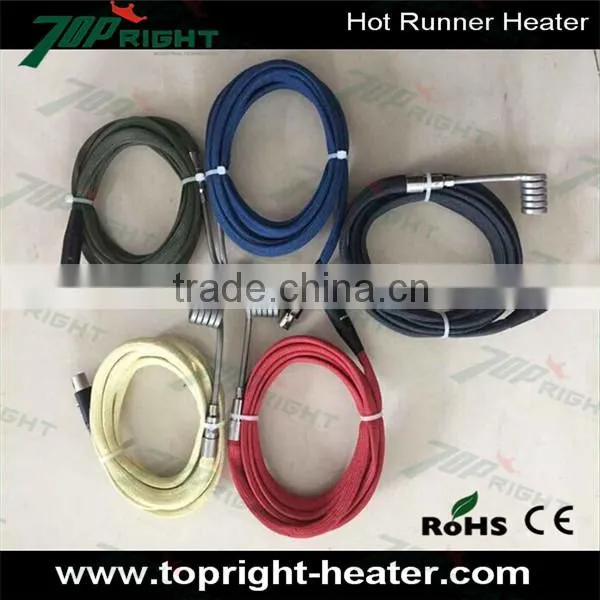

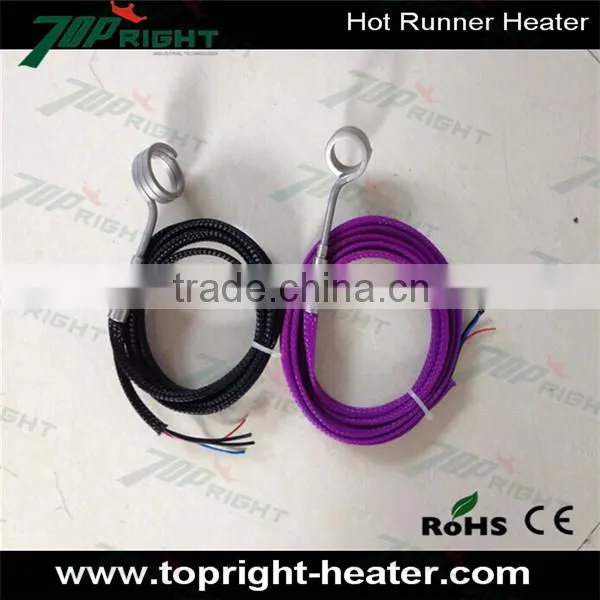

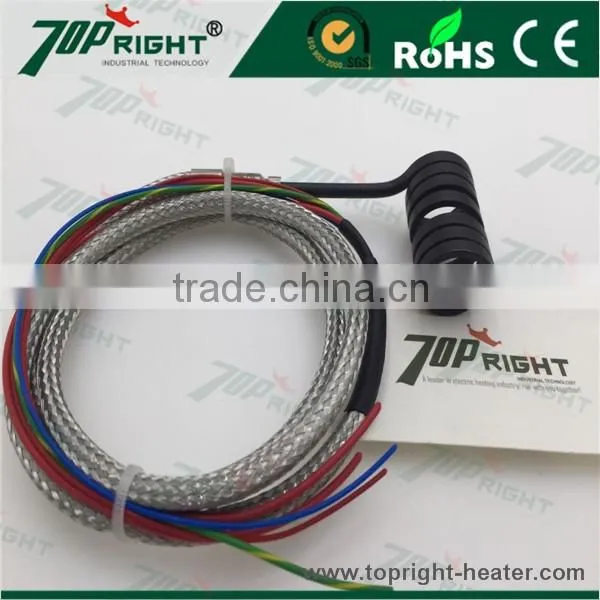

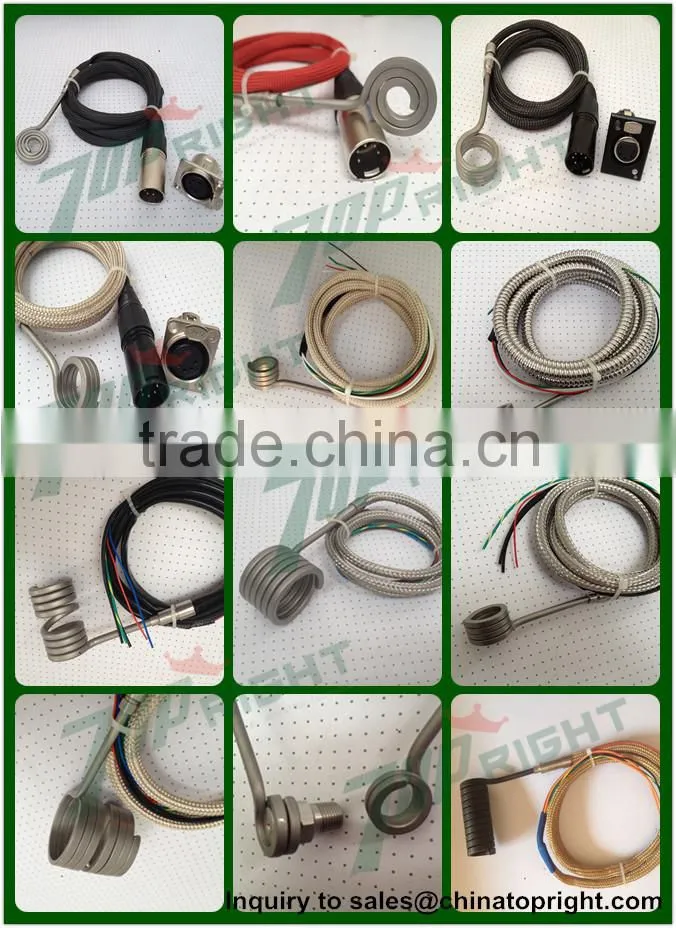

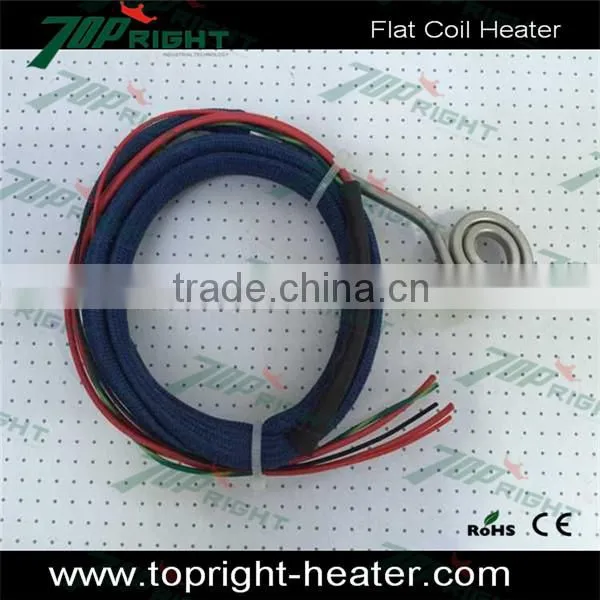

More Hot Runner Coil Heater Photos:

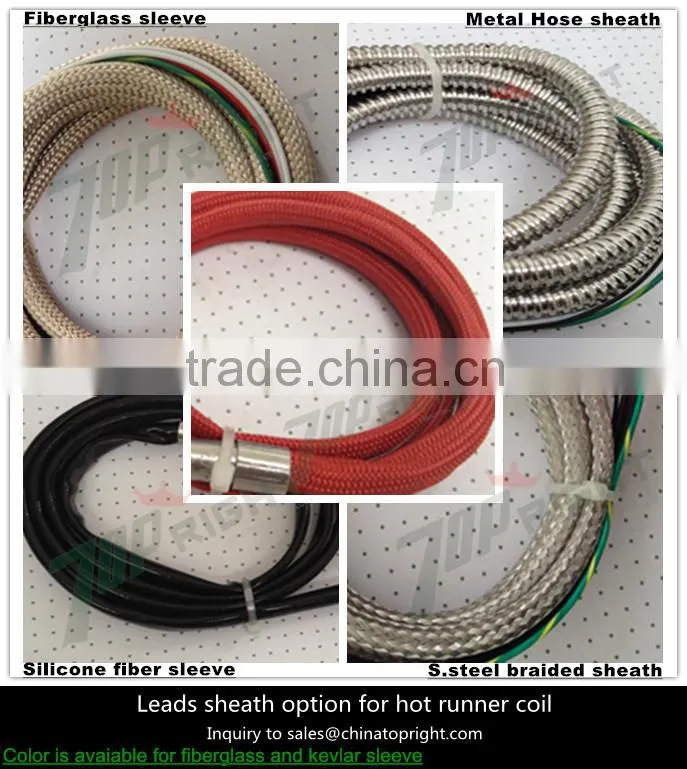

There have different material of the shell:

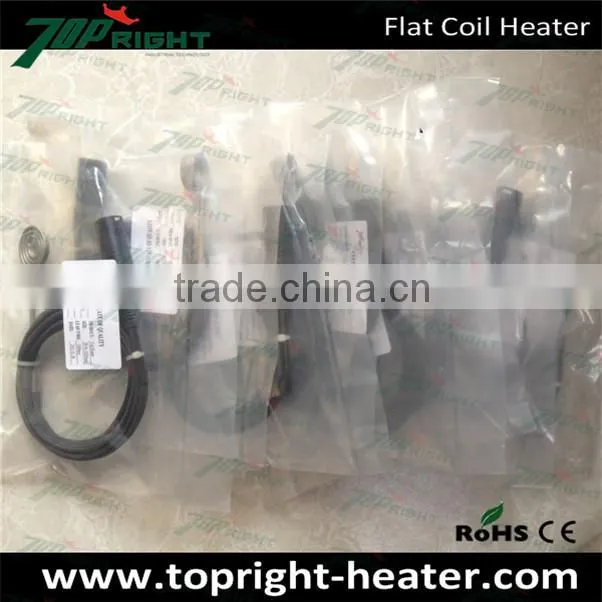

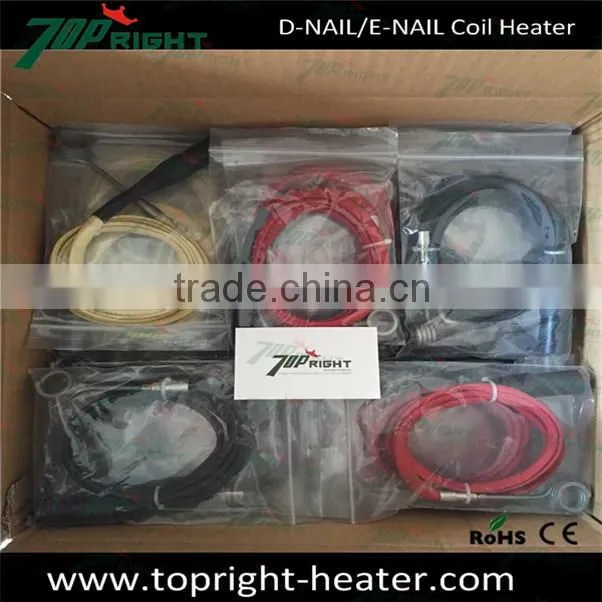

Packing:
CE Certificate:
Topright Technology Culture:
Since 2001,Topright have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development. Topright's products have been exported to Europe, America, Asia,Mid East etc. more than 90 countries. We supply different heating element for example silicone rubber heater, kapton heater, band heater, cartridge heater, tubular heater, thermocouple and ect. More details pls link online store:
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
RAQ:
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.
3.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Paypal,Western nion,Money gram and Aliexpress is available.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
welcome to our company and contact us for more details.We sincerely for your service!
A leader in electric heating industry,run with you together!
