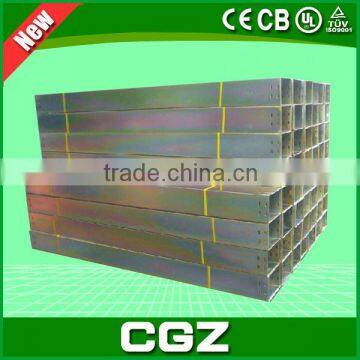

A New Type of Stainless Steel Wire And Cable Bridge Trough

  2015 new Metal Cable Trunking

1.Material

Hot-dip galvanized steel sheets

Aluminum galvanized steel sheets

Stainless steel sheet

Steel sheets

2.Surface

Resin paint coating

Acryics lacquer paint coating

Resin powder paint coating

Epoxy resin paint coating

Hot-dip galvanized

3.Features

-- Cable Trunking are easy to install and can be mounted on walls using brackets.

-- Used for underfloor, concealed systems.

-- Cable trunking with cover sections to prevent ingress of dust and liquids .

4.Specification

Thickness: 0.6mm -2.5mm (12 - 25Gauge)

Height: 50 mm - 300 mm

Width: 100mm - 1000 mm

Finished: Pre-galvanized (Z80 - Z275), Powder coating

-- Cable Trunking are easy to install and can be mounted on walls using brackets.

-- Used for underfloor, concealed systems.

-- Cable trunking with cover sections to prevent ingress of dust and liquids .

Other Shapes & Sizes Are Available Upon Request

Quality Guarantee: our cable trunking is certified by Chinese Product Quality Inspection Technology Research Institute.

Complete series of fittings: horizontal elbow, horizontal tee, horizontal cross, horizontal reducer, vertical elbow up, inside, vertical elbow down, connector etc.

5.Advantages

1. Low cost, significant cost savings compared to standard traditional tray products.

2. Light in weight, wide range of sizes.

3. Fast heat dispersion.

4. Strong enough to withstand short circuits. Provides strength, rigidity without additional hardware.

5. Adapts to difficult architectural designs to accommodate changes in direction and elevation of cable runs.

6.Flexible, easy and fast installation. Design allows cable exit or entry at any point.

7. Cables can be secured to clamps or ties.

8.Various hardware accessories available to fix, support and install.

9. Safe smooth edge design to protect cable.

10.Easy for line check and cleaning , easy maintained.

 All sharp ends are cut off to protect cables. Weight loading capacity is 27% stronger than traditional cable

trays and cable ladders.

6. Picture

7.About our factory

8.Contact us

Send your inquiry through our alibaba website,we will reply you at the soonest time;

Or you can call us by:
