CNGZ Contact Block Magnetic Contactor Relays

FOB Price

US$ 2.2 - 28.5 / Piece

5 Pieces(Min. Order)

Port Guangzhou or Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

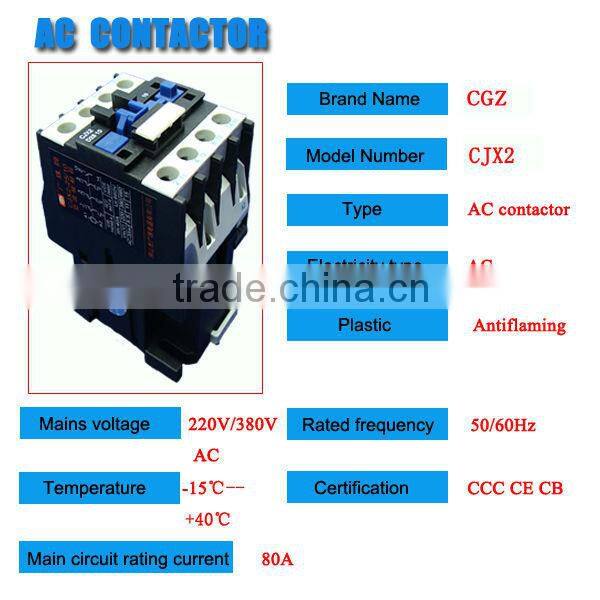

Product Details

Place of Origin	Guangdong, China	Brand Name	CGZ
Model Number	CJX2(LC1)	Electricity Type	AC
Number of Pole	3	Phase	3
Main Circuit Rating Voltage	Other, 220/230/380/400/415/500/660/690V	Main Circuit Rating Current	Other, 9/12/18/25/32/40/50/65/80/95A

Product Description

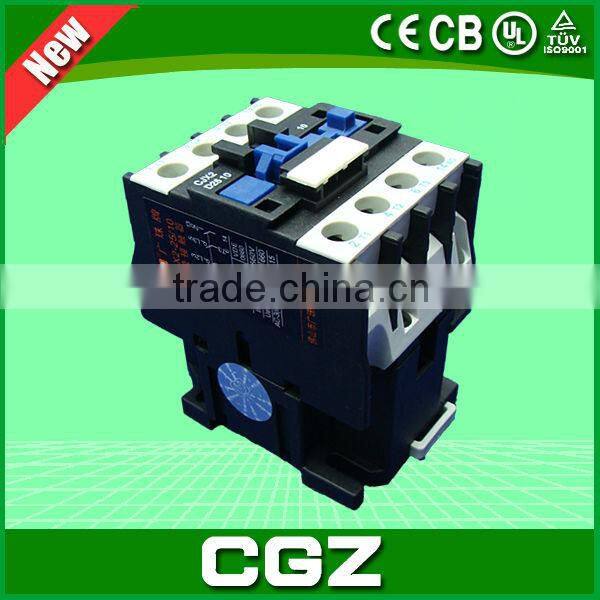

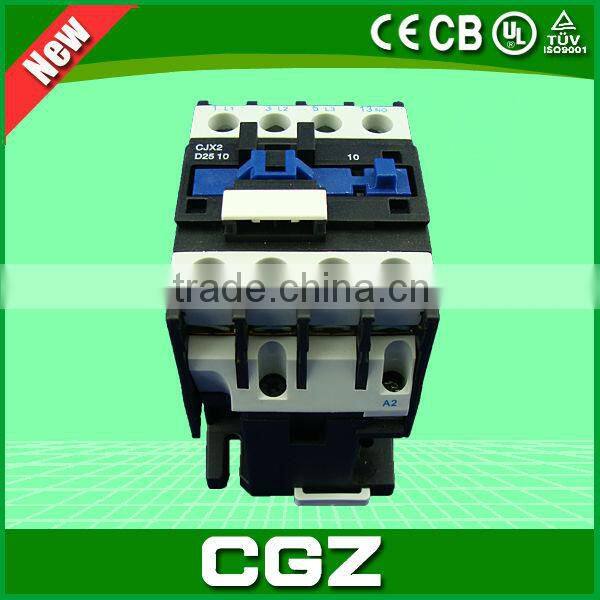

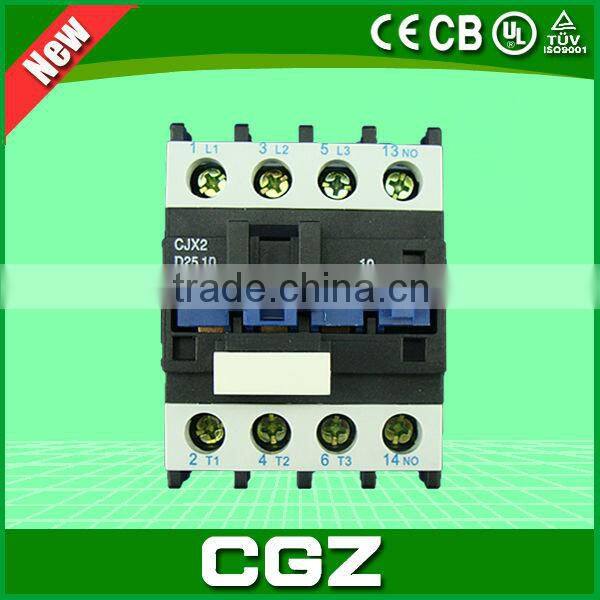

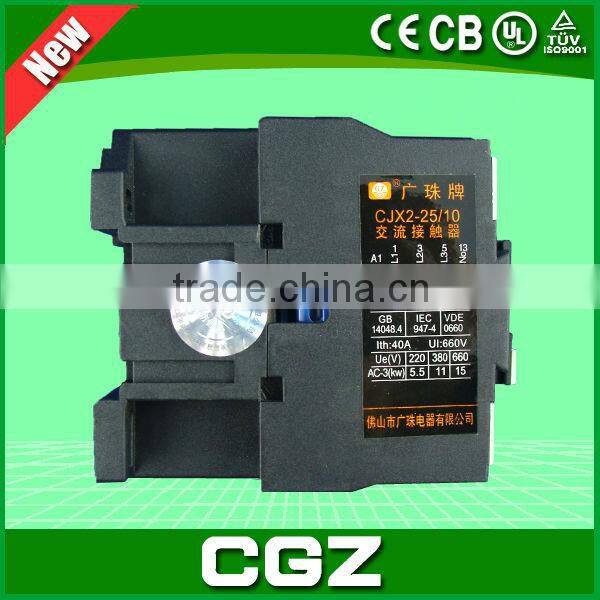

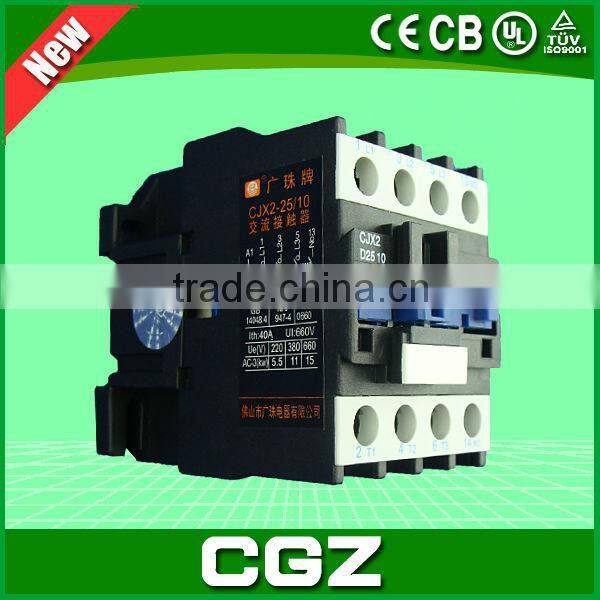

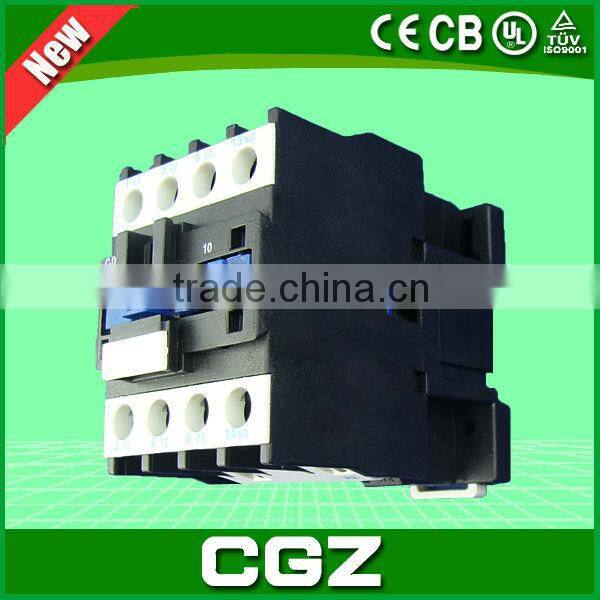

CNGZ contact block magnetic contactor relays

Product Description

Specification

CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor.

AC Contactor Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.AC Contactor is produced according to IEC 60947-4, GB14048-4.

CJX2 series AC contactor, small size, light weight, long working life, can assemble different accessories, such as stacking auxialiry contact group, air delay contact, mechanical interlocks, to form time delay contactor, mechanical interlock contactor, star-delta starter, also inset thermal relay to form magnetic starter.

Technical Data

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts	Installation Method
				220V	380V	415V	440V	660V
LC1-0910	660	20	9	2.2	4	4	4	5.5	3P+1NO	1with two screws 235mm din rail
LC1-0901	660								3P+1NC
LC1-1210	660	20	12	3	5.5	5.5	5.5	7.5	3P+1NO
LC1-1201	660								3P+1NC
LC1-1810	660	32	18	4	7.5	9	9	9	3P+1NO
LC1-1801	660								3P+1NC
LC1-2510	660	40	25	5.5	11	11	11	15	3P+1NO
LC1-2501	660								3P+1NC
LC1-3210	660	50	32	7.5	15	15	15	18.5	3P+1NO
LC1-3201	660								3P+1NC
LC1-4011	660	60	40	11	18.5	22	22	30	3P+NO+NC	1with three screws 275mm 0r 35mm din rail
LC1-5011	660	80	50	15	22	25	30	33
LC1-6511	660	80	65	18.5	30	37	37	37
LC1-8011	660	125	80	22	37	45	45	45
LC1-9511	660	125	95	25	45	45	45	45

Dimension & Mounting Size

Type	A	B	C	D	E	a	b	Ø
LC1-D09~12	47	76	82	113	133	34/35	50/60	4.5
LC1-D18	47	76	87	118	138	34/35	50/60	4.5
LC1-D25	57	86	95	126	146	40	48	4.5
LC1-D32	57	86	100	131	151	40	48	4.5
LC1-D40~65	77	129	116	145	165	40	100/110	6.5
LC1-D80~95	87	129	127	175	195	40	100/110	6.5

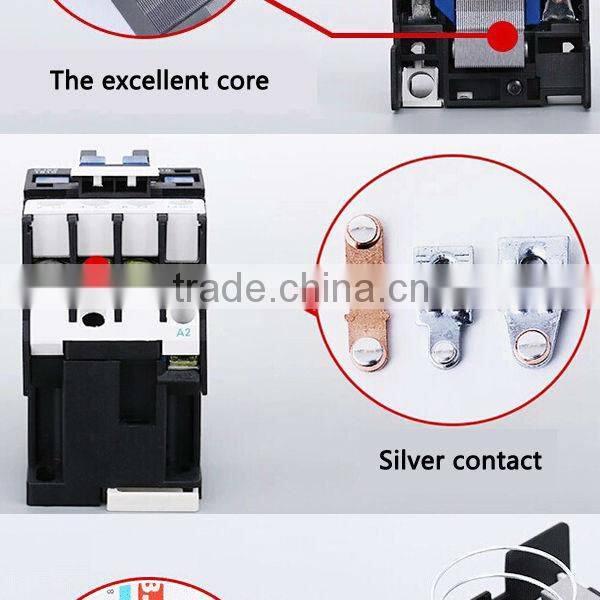

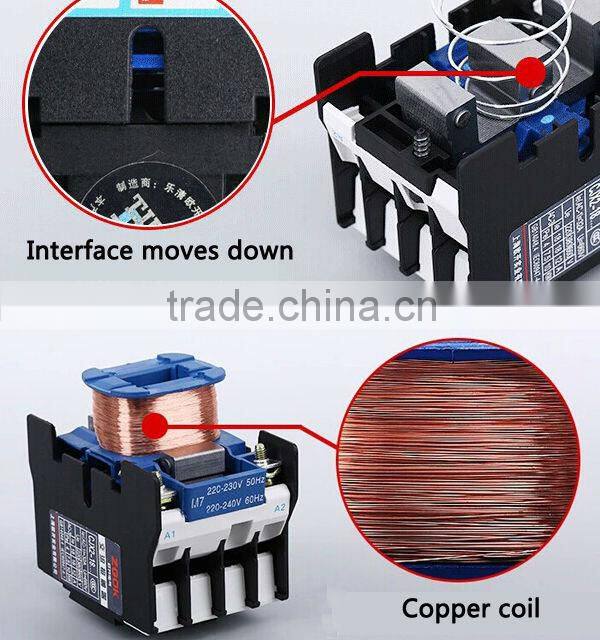

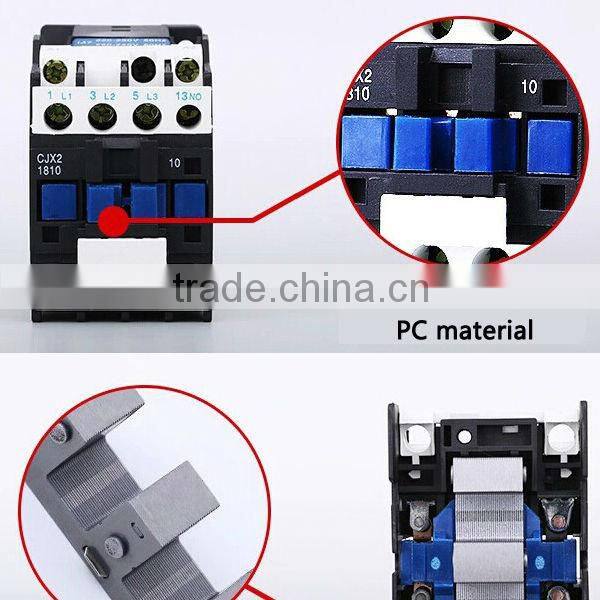

Feature

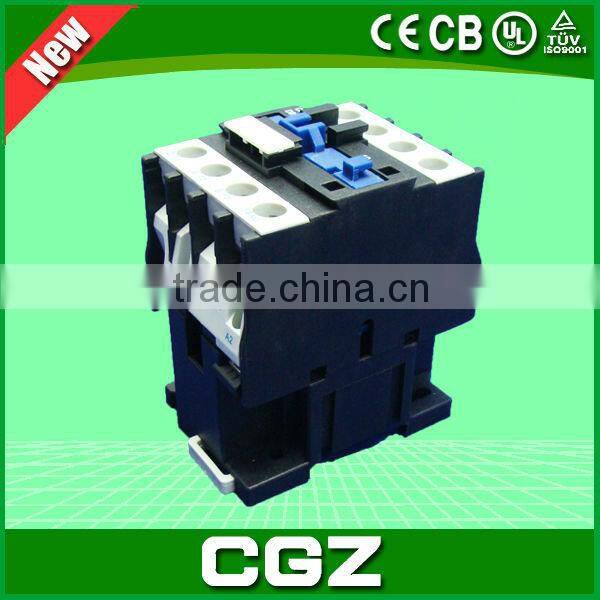

Product Photos
