CJT1(CJ10) Air Conditioning Coil Types of ac Magnetic Contactor
- Guangzhou or Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CNGZ 50Hz 380V Air Conditioning Types of ac Magnetic Contactor
-
CNGZ 110A 380V ac Contactor Magnetic New Type Vacuum Contactor
-
CNGZ Three Phase Vacuum Types Changeover Capacitor Contactor
-
Cngz CJX2-9511 12a 220v Coil ac Mitsubishi Magnetic Contactor
-
CNGZ CJX2-1810 Magnetic Electric ac Mitsubishi Magnetic Contactor
-
220V-380V ce Certificated Rail Type Electronic Mitsubishi Magnetic Contactor
Product Details
| Place of Origin | Guangdong, China | Brand Name | CGZ | |
| Model Number | CJT1(CJ10) | Electricity Type | Vacuum | |
| Number of Pole | 3 | Phase | 3 | |
| Main Circuit Rating Voltage | Other, 220/230/380/400/415/500/660/690V | Main Circuit Rating Current | Other, 9/12/18/25/32/40/50/65/80/95A |
Product Description
CGZ 2015 NEW ac contactor 380v good quality and best price
Specification
CJT1 series AC contactor is designed for long-distance on & off in circuit and frequently starting and controlling AC motors in power system of AC 50/60Hz, rated voltage up to 380V and rated current up to 150A.
It also can be used as electronmagnetic starter assembled with other thermal relay or electrical protection apparatus to protect circuit against overload.
Technical Data
Type | CJT1-10 | CJT1-20 | CJT1-40 | CJT1-60 | CJT1-100 | CJT1-150 | |
Rated insulation voltage & working current (v) | 380 | 380 | 380 | 380 | 380 | 380 | |
( AC-1~AC-4,380V) ( A) Rated operating current | 10 | 20 | 40 | 60 | 100 | 150 | |
Rated control power AC-3(kw) | 220V | 2.2 | 5.8 | 11 | 17 | 28 | 43 |
380V | 4 | 10 | 20 | 30 | 50 | 75 | |
Per hour cycle of operation(h) | AC-1.AC-3F or the600,AC-2,AC-4F or the300 CJT1-150 AC-4F or the 120 | ||||||
Electril mechanical endurance | AC-3 | 60 | 60 | 60 | 60 | 60 | 60 |
AC-4 | 2 | 2 | 2 | 1 | 1 | 0.6 | |
Mechanical endurance (million time ) | 300 | 300 | 300 | 300 | 300 | 300 | |
Auxiliary contact | 2NO+NC,AC-15 180V;DC-13 60W lth:5A | ||||||
Fuses allocation | RT16-20 | RT16-50 | RT16-80 | RT16-160 | RT16-250 | RT16-315 | |
Coil power consumption (VA) | Starting power | 65 | 140 | 230 | 485 | 760 | 950 |
Maintain power | 11 | 22 | 32 | 95 | 105 | 110 | |
Working environment condition
1.enviroment temperature is -5 degree~+40 degree.
2.The average temperature in 24 hours shall not exceed +35 degree
3.The altitude of the installation shall not exceed 2000m.
4.The relative humidity shall not exceed 50% when the enviromental temperature is +40 degree.The relative humidity maybe higher at lower temperature condition. The maximun month-average relative humidity is 90% in the most humid month,with a minimun month average temperature +25 degree. The factor that dew may occur on the product surface due to temperature change shall be taken intp consideration.
5.Pollution grade:Grade III.
6.Installation class:III
7.The product shall be installed and operated at a place without obvious shake, impact and vibration.
Feature
1. Small volume
2. Light weight
3. Low power consumption
4. Long service life
5. Safe and reliable operation border
Circuit voltage:AC 380V or below
Rated current:10,20,40,60,100,150A
Coil voltage: 36,110,127,220,380V
Auxiliary contact:2NO,2NC

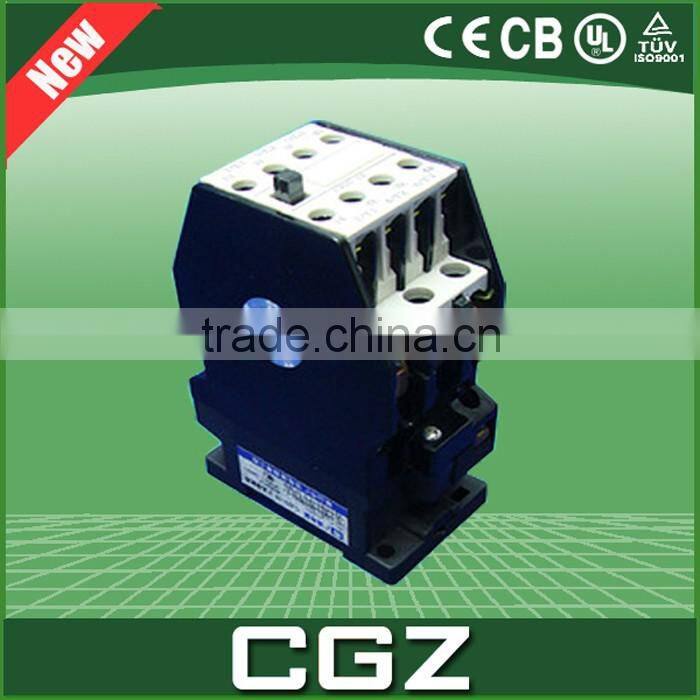

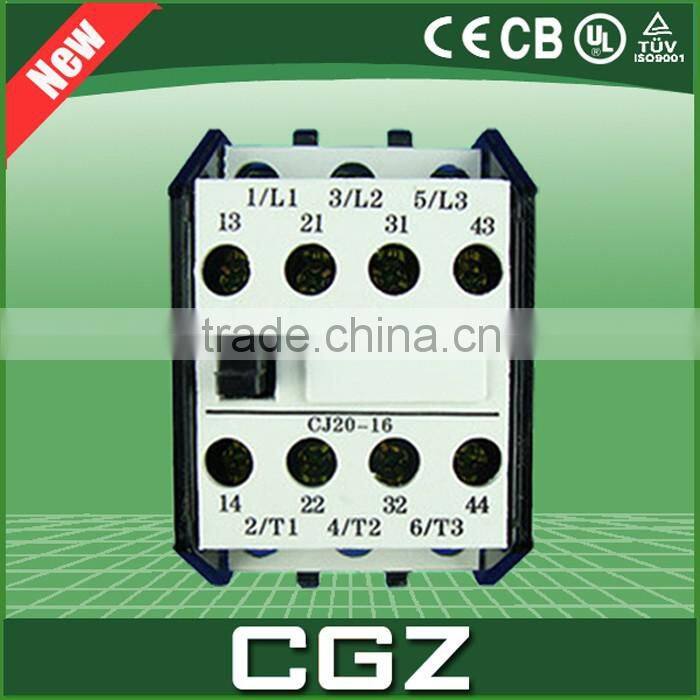

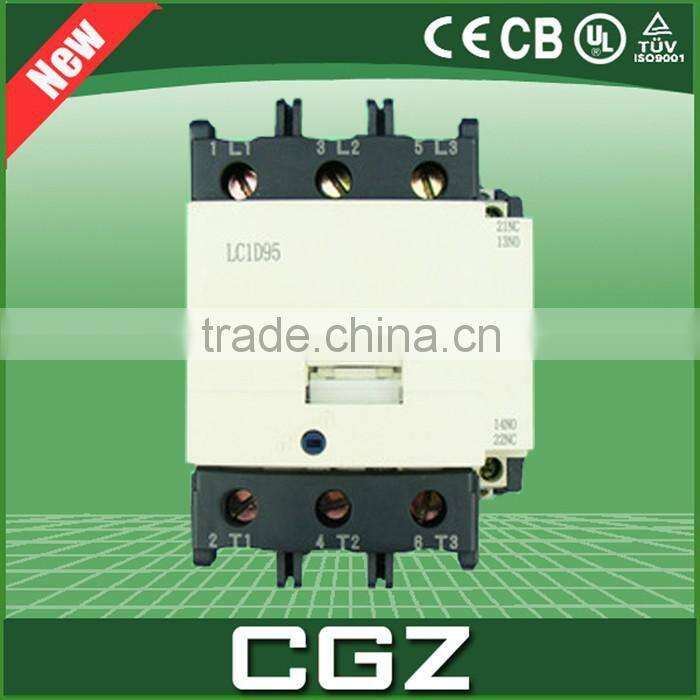

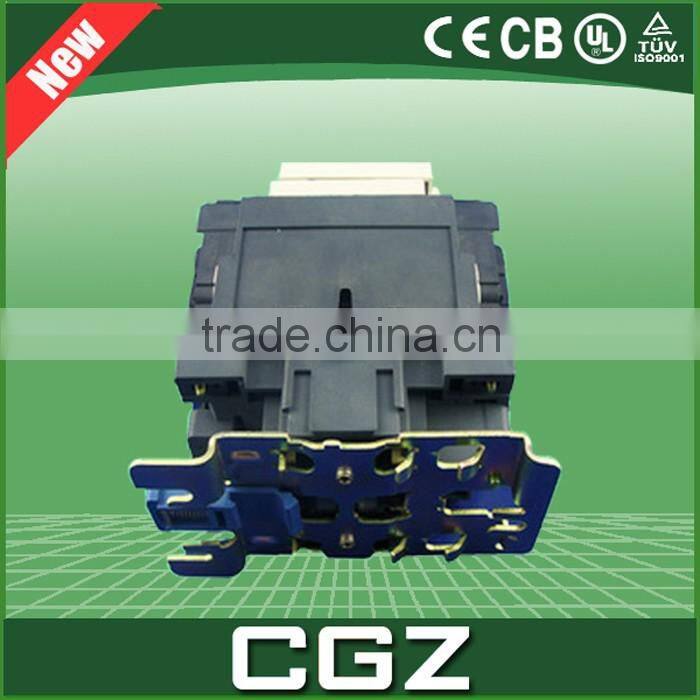

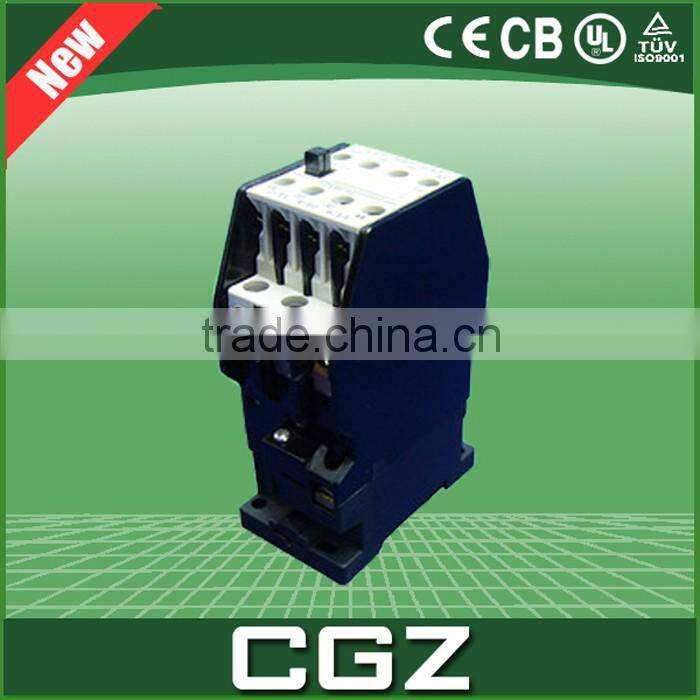

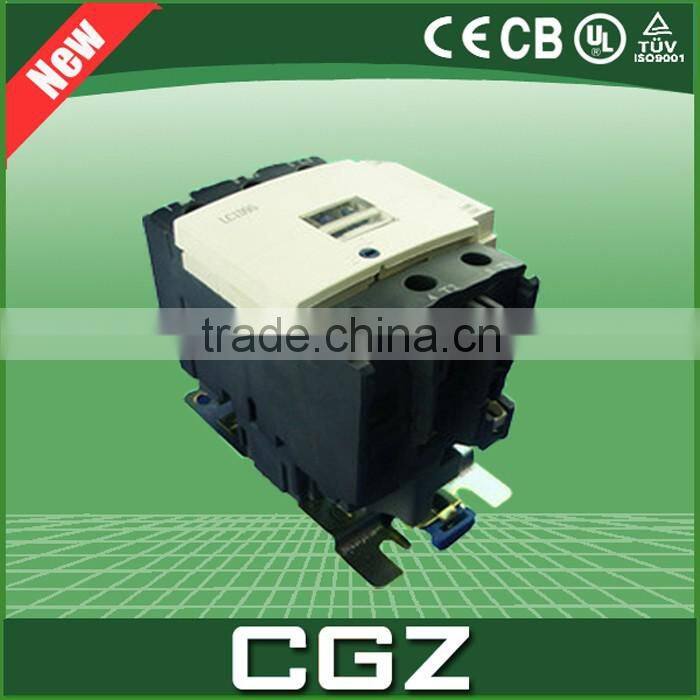

Product Photos
Company View
Our Certifications
Our Exhibitions
Our Services
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM & ODM are welcome.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
FAQ
Q1:what's the delivery time?
A1:Usually it will take about 15 days for production.
Q2:tell me the standard of package?
A2:Standard export carton packing with good quality carton box.
Q3:Can you accept to use our logo?
A3:If you have good quantity,it absolute no problem to do OEM.
Q4:We want to know monthly capacity.
A4:100000pcs/month.
Q5:what kind of certificate do you have?
A5:Our company already achieve ISO, and for products, we have CE & CB certificates.
