Lovely animal shape electric sightseeing bus made in china
Negotiable
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Shanghai
- T/T
You May Like
- Heavy duty low platform Crawling all over the ground Wire axle semi-trailer
- Multi axle semi-trailer heavy-duty low flatbed large item transport vehicle
- Large cargo transport semi-trailer Large item transport vehicle Multi axle semi-trailer
- Cargo Submarine Mini Submarine 400km Range
- HYSTER PUMP 4058564
- KALAMR VALVE 923543.0028
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HONGDU | Model Number: | YMJ-619 |
Product Description
Specifications
19 passengers electric sightseeing bus
optional color without extra cost
lovely shape
an attractive view in resorts
Green power 19 seats tourist bus 6.3kw
Item | Description | |
Technical parameter | Overall dimensions | 6300mm×1620mm×2200mm |
Unloading weight | 1800kg | |
Min. ground clearance | 150mm | |
Max. speed(loaded) | 25km/h | |
Max. distance range | 80km | |
Max. climbing ability(loaded) | 25% | |
Min. turning radius | ≤5.5m | |
Passenger capacity | 19 | |
Electric system | Battery | double 48V/220AH |
Charger | input 110V-240V~50Hz-60Hz, output 48V, 25A | |
Controller | curtis | |
Motor | 6.3KW DC series excitation | |
Lighting system and horn | 2 combined front lights(headlight, turning light, position light), 2 front fog lights, 2 taillight(turn signals and brake lights), horn, rear buzzer | |
Dashboard meter | voltammeter, ammeter, odometer, emergency switch; combined switch, meter indicator | |
Audio System | radio and MP3 adaptor, with 2 speakers | |
Wiper | single arm | |
Steering and suspension | Transmission system | rear engine Rear wheel drive(RR) |
Steering system | gear rack type steering machine, automatic clearance compensation function | |
Front axle and suspension | integral front drive axle, leaf spring independent suspension | |
Rear axle and suspension | integral type rear axle, leaf spring independent suspension | |
Braking system | four wheel hydraulic drum brake+ parking brake | |
Wheel & tyre | steel rim, tubeless tyre 600-14 | |
Body and frame | Frame | high quality carbon pipe welding rust frame |
Body | Fiber glass | |
Windshield | laminated | |
Side rear view mirror | each on both sides | |
Interiors System | Seats | senior fabric leather + higher rebound PU |
Steering wheel | PU foaming steering wheel | |
Floor | Anti-sliding Aluminum floor mat | |
Options | Color, rain curtains, seat belts, CD player, customers’ logo etc. |

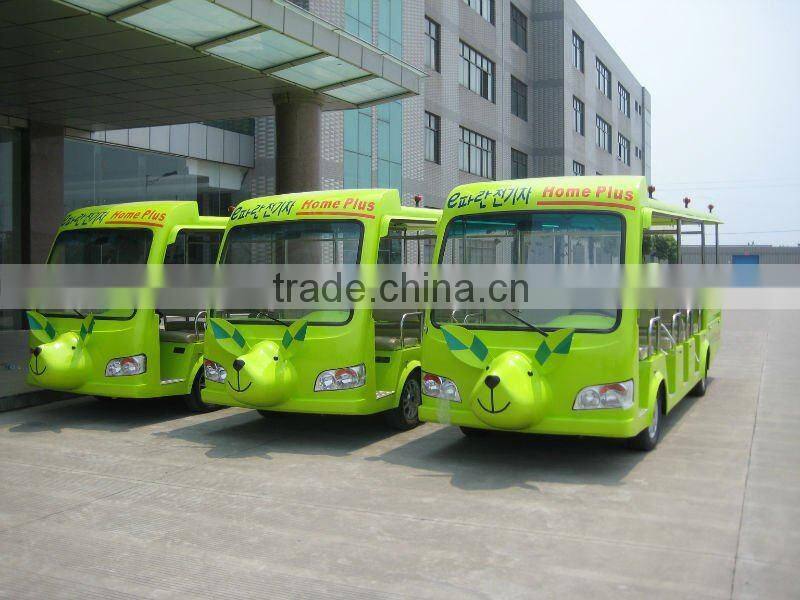

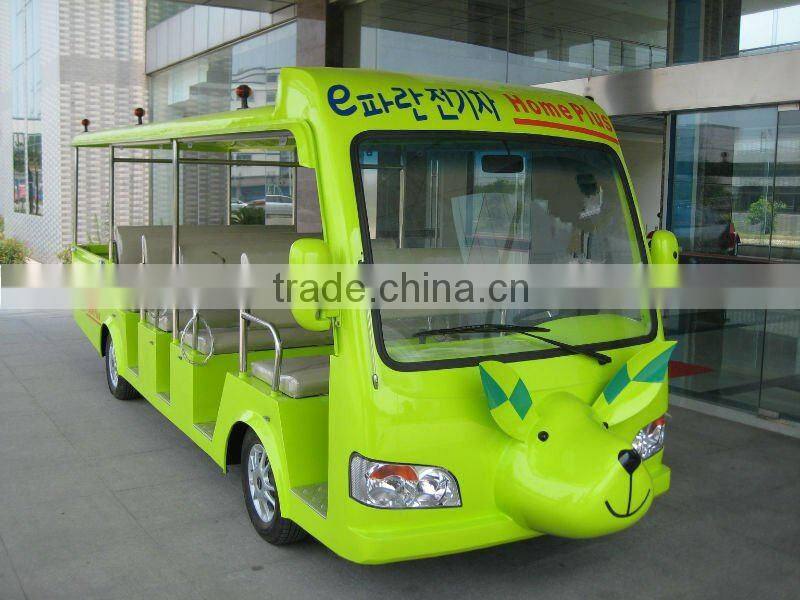

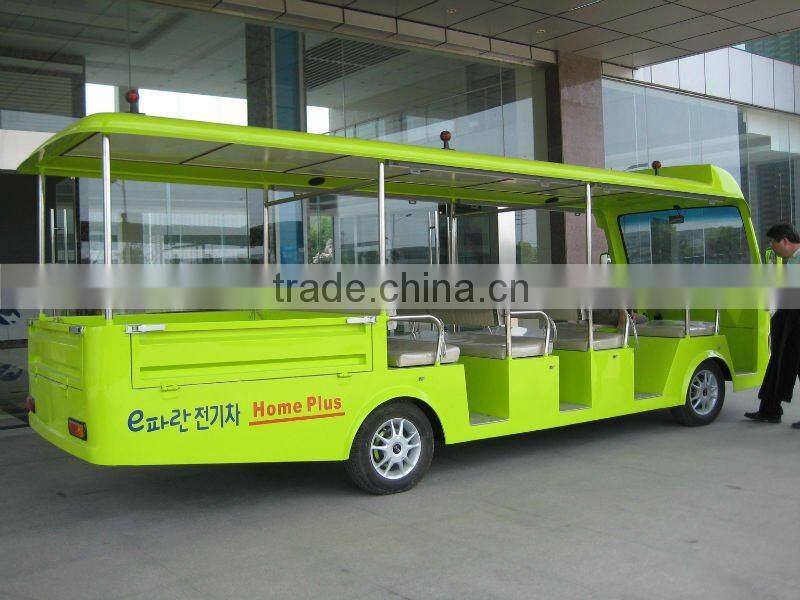

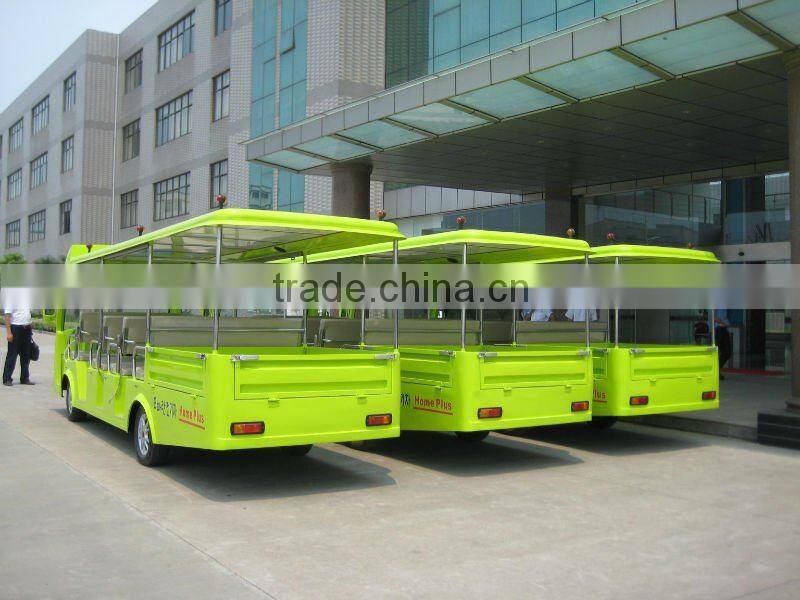

Product Show
Company Information
Our company was established in 2005, we are the manufacturer and trader specialized in machinery and electronics products.
We are located in Changzhou city, Jiangsu province, which is about 200km from Shanghai city, and 120km from Nanjing city.
