Specifications
1.CE approval
2.Delivery time:15-20days
3.1% Free spare parts
4.Waranty 18 months
5.LOGO design free

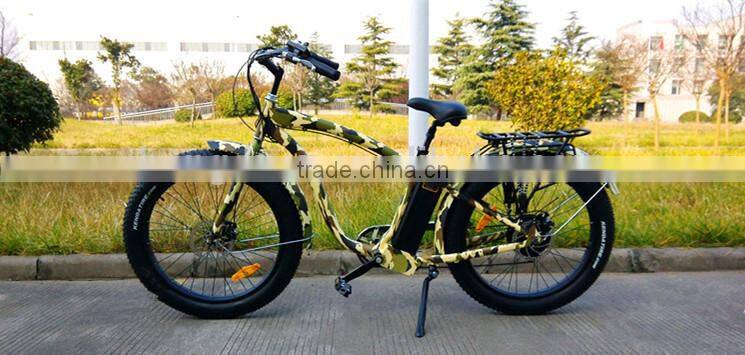

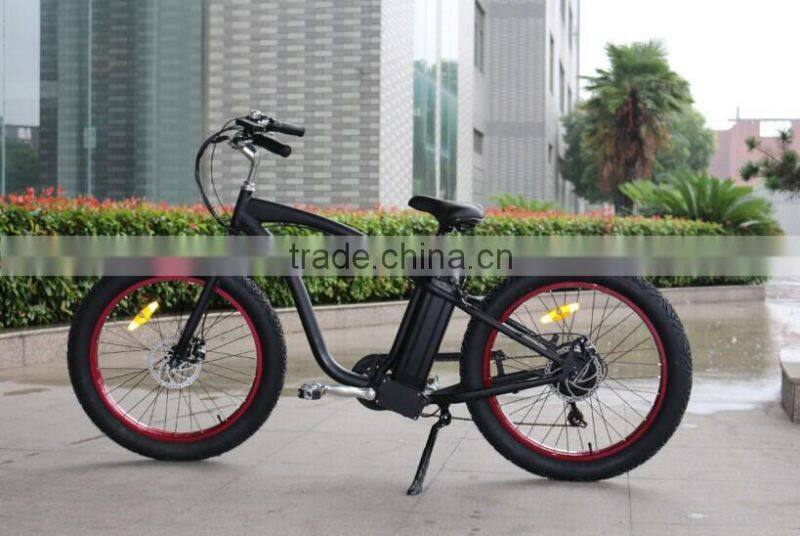

China fat tire mountain bike with ce approval
| TDE01Z e bike,electric bicycle | |||
| Electric system | Main components | ||
| Motor | light weight high speed brushless. | Frame | 6061 al alloy. |
| geared hub motor. | Tyres | 26"*4.0 KENDA brand. | |
| 180W-250W for European. | Rim | Al alloy double wall and CNC side wall. | |
| 250W-500W for USA & Canada. | Front fork | Al alloy suspension. | |
| 200W for Australia & New Zealand. | Front brake | V brake ( Disk brake available). | |
| Battery | 36V/10Ah, 36V/13Ah ploymer li-ion. | Rear brake | servo brake ( Disk brake available). |
| All battery with electric protection circuit. | Speed gears | SHIMANO 6/7 speed gears. | |
| PAS | 1:1 intelligent pedal assistant system. | Derailleur | SHIMANO TOURNEY |
| Controller | 36V intelligent brushless | Handle bar | ZOOM Al alloy. |
| Charger | AC 100V-240V, 2 Amps smart charger. | Stem | ZOOM Al alloy. |
| Charge time:4-6 hours. | Brake lever | Al alloy, cut-off when braking. | |
| Throttle | Twist intelligent speed control. | Chain | Rust resistant chain. |
| Performance | Chain wheel | Steel 38T, al alloy crank. | |
| Max speed | 25km/h(EU),32km/h(USA & Canada). | Mudguard | steel. |
| Range | 50km with full electric (36V/10Ah battery). | Rear rack | Al alloy. |
| 80km-100km with PAS. | Saddle | Soft comfortable. | |
| Max load | 100kg. | Seat post | Steel folding or aluminium suspension. |
| Net weight | 23.6kg including battery. | Pedal | City style pedal with reflector. |
| Gross weight | 28.0kg including package. | Optional parts | Front / rear light, tool kit, rack bag helmet. |
| Capacity | 80pcs/20ft container, 206pcs/40 HQ. | Lock, water bottle,basket ,speed meter. | |
Different Colors

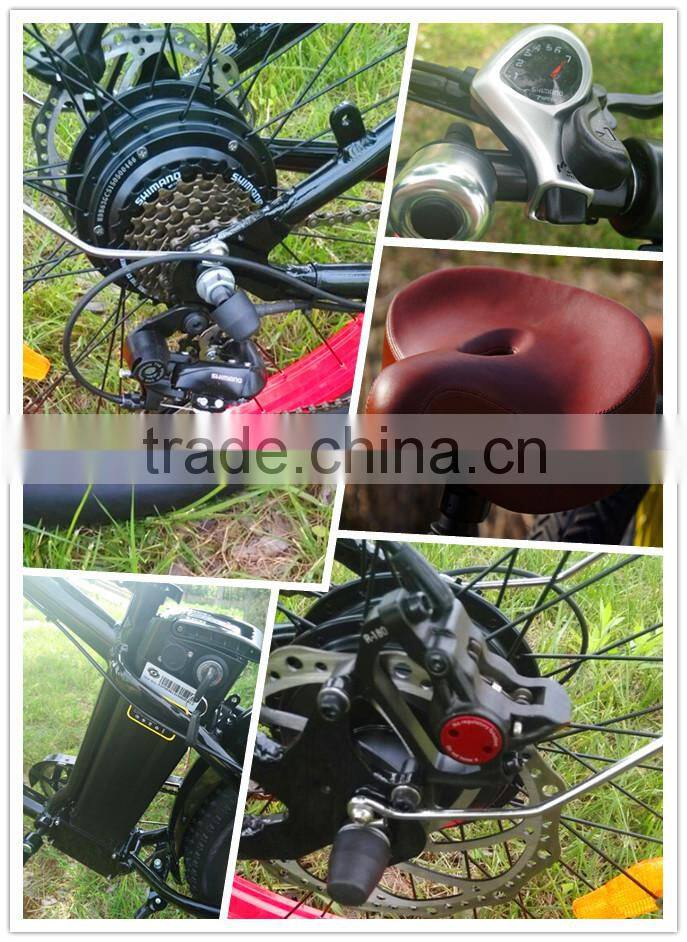

Details
You can choose the speed, color, rim color, saddle, logo, rear rack or other accessories you want. We can customize for you according to your request.
*The bag is also acceptable which can place some goods if you need.
Size
Assembly Line
Our company was established in 2005, we are the manufacturer and trader specialized in machinery and electronics products. We mainly offer motors, electric bicycles, electric vehicles and its spare parts, bicycle and its spare parts, metallic materials, plastic products and textiles, etc.
We are located in Changzhou city, Jiangsu province, which is about 200km from Shanghai city, and 120km from Nanjing city.
Most of our products can comply with international quality standards and are greatly meeting in a variety of markets around the world . For example, we have EN15194 European certificate, CE certificate and EEC certificate. These certificates ensure us can enter into any country.

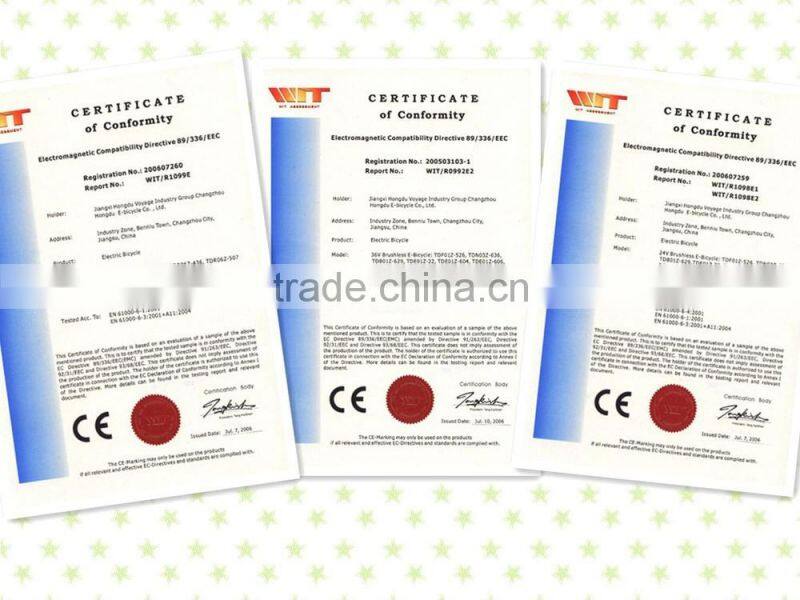

Certificate
1. Sample is accetpable
2. 1% Free spare parts
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own 3 factories located in Changzhou,Tianjin,Nanchang,China
3. Strong professional technical team ensure to produce the top quality E-bike.
4. "Hongdu"--- Famous brand in China .TOP 10 in electric scooter field in china .
5. Special cost control system ensure to provide the most favorable price.
6. Rich experience on manufacture field with 12 years' export business of electric vehicles.
1.What's the advantage of electric bike?
You can not only ride it as ordinary bike but also choose battery powered mode when you get tired,and you don't need to get a license and pay parking fee.
2.What colors are available?
We have many color options,such as black,red,white,yellow,blue,silver,orange and so on,so we can make the colors based on your request.
3.Can you do our logo or brand on the bikes?
No problem, if you order 1*20' container,we can do it for free,if you order less than that,we charge $100 for it at first,and you don't need to pay for it anymore in future order,when your orders reach 1*20' container,we can refund this $100 to you.
4.Can I order some samples at first to see the quality?
No problem,if your order is less than 10 pcs,we need to charge some extra sample fee,the amount is based on your specific quantity, when your orders reach 1*20' container,we can refund you the sample fee.
5.Can you deliver samples by DHL or Fedex?
The freight by DHL or Fedex is very expensive because our products contain battery, it usually costs more than the electric bike value,so we suggest you choose sea shipping.
6.Can you change configuration for me?
No problem,we can change configuration based on your request.
7.What's your payment term?
