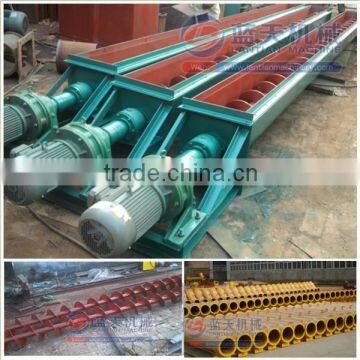

High production capacity China manufacturer pellet screw conveyor
Pellet screw conveyor
Introduction of pellet screw conveyor
Pellet screw conveyor is used to convey coal powder, charcoal powder, fine sawdust powder,
pellet, ore powder, mineral powder, or any other fine dry powder from a place to another
place.Pelletscrew conveyor is almost totally sealed, so it is quite environmental when
it is used to conveyor fine dry powder. And according to your raw material, production
capacity and distance, my factory can make the most suitable pellet screw conveyor
according to your requirements.
Pellet screw conveyor's components
Pellet screw conveyor consists of screw blade(screw propeller), chassis, bearing seat,
hanging bearing, driving device, etc.
Screw propellor of pellet screw conveyor
Chassis of pellet screw conveyor
Features of pellet screw conveyor:
A) High quality motor and gear box, with heavy duty design, large torqe and low noise
B) outside tube complete with one inlet, one outlet, end flange, ball joint , inspection window
C) standard fitting parts, middle bearing, end bearing, splined shaft coupling
D) Lifting eyes on each tube section, convinient for transport and installtion
E) small diameter, great efficiency, high throughout rates.
Technical Parameters of pellet Screw Conveyor:
Type | HB50 | HB60 | HB70 | HB80 | HB100 | ||||
Chain plate width (mm) | 500 | 600 | 700 | 800 | 1000 | ||||
Transmission speed (m/min) | 7-14 | ||||||||
Transmission capacity | Bucket(m3/h) | 15-25 | 20-35 | 30-40 | 40-50 | 50-70 | |||
Plate(m3/h) | 15-20 | 20-30 | 30-35 | 40-45 | 45-55 | ||||
Transmission distance (m) | The common is no more than 40, the max is 70 | ||||||||
The max granularity | Bucket(mm) | 80 | 100 | 140 | 160 | 200 | |||
Plate(mm) | 120 | 160 | 200 | 240 | 300 | ||||
Allowed dip angle | Bucket | No more than 45° | |||||||
plate | No more than 15° | ||||||||
Dear customer, if you have any questions, please contact freely!
