Widely application easy operation briquette extruder

 Widely application easy operation briquette extruder

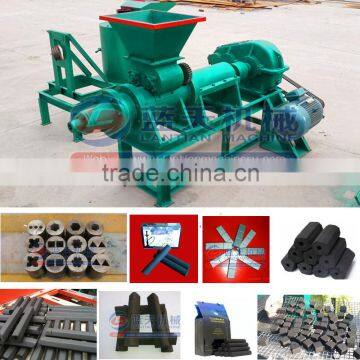

Finished briquette of briquette extruder :

 Briquette extruder :

1.Extruder uses screw working principle to squeeze the powder into various briquettes.

2.Suitable material of extruder machine:

      a.Charcoal powder; coal powder; carbon powder ;coke powder etc.

      b.Charcoal lump; coal lump; carbon lump; coke lump etc.

3.Shape:  Cylinder ; Triangle  ; Cubic ; Strip ; Chocolate etc or as you customized.

   Size:     Diameter  10-45mm ; Length 20-300mm.

4.Our factory new desigh  360 model  charcoal briquette extruder machine.

360 type:

180 type:

140 type:

Technical parameters of briquette extruder:

The product line of briquette extruder like this:

 Charcoal lump--Crusher--Charcoal briquette extruder machine--Dryer.

1)Charcoal crusher: Crush charcoal lump into small size, less than 1mm.

2) Mixer:Mix binder with charcoal powder evenly.(100% natural binder,harmless)

3) Auto feeder:Store the mixed charcoal powder and feed them into charcoal briquette

extruder machine.

4)  Extruder machine:Shape charcoal powder into briquette.

The outlet charcoal briquette not only can be used in  barbecue,warming,cooking,

but also can be made into shisha charcoal for smoking.

5) Box Dryer: Dry up charcoal briquette till their moisture less than 5%  .

Customers from different countries:

Briquette extruder machines in stock:

Samples:

Delivery site:

 Another type  ----  Biomass briquette extruder:

Biomass briquette extruder's working principle :

1.Propeller provides impetus pressure to force powder move towards exit.

2.High temperature high pressure shaping principle:three heating rings provide high temperature,

 meanwhile,the inner shaping drum provide high pressure.

Biomass briquette shape: Hexagonal bar shape ,round bar shape,square bar shape etc  with

hole in the middle .

Biomass briquette size:     Diameter can be 40-80mm,the length can be 300-800mm.

Suitable raw material:1.Wood :tree branch,wood chips,sawdust,sugar cane etc.

                                   2.Coconut shell,palm shell,wheat rusk,rice rusk,bamboo waste etc.

                                   3.Bamboo,Wood log .

Main spare parts of biomass briquette extruder :

a) Heating rings: Each screw type biomass briquette machine has 3 heating rings. these

heating rings are used to provide high temperature for wood powder.

b) Inner shaping drum and outer shaping drum:There is one inner shaping drum and outer

shaping drum in one set screw type biomass briquette machine.

c) Propeller: There is one propeller in one set screw type biomass briquette machine. The

propeller is used to push fine wood powder towards the inner shaping drum.

Main parameter of biomass briquette extruder:

Workflow:Crusher---Dryer--Briquette extruder machine--Carbonization furnace

1.Crusher:Crush your wood into small size powder,less than 3-5mm.

2.Dryer:Dry up the wood powder till their moisture less than 12%.

3.Biomass charcoal briquette extruder machine:Shape dry powder into birquette.

4.Carbonization furnace:Turn biomass briquette into charcoal briquette.

Payment, Packing and Delivery time:

1. Payment : 30% TT in advance, 70% TT balance pay off before delivery.

2. Packing: The machine and wear parts will protected by wooden box or container.

3. Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days,

If you are interested in our briquette extruder,contact me freely~

Phone NO: 0086 136 7695 3023

Skype NO: Merrywang96

Whatsapp/ Viber/Wechat: 0086 155 1586 8246
