China Manufacturer High Quality Charcoal Powder Briquette Pressing Machine Coal Powder Press Machine

China Manufacturer High Quality Charcoal Powder Briquette Pressing Machine Coal Powder Press Machine photo-1
China Manufacturer High Quality Charcoal Powder Briquette Pressing Machine Coal Powder Press Machine photo-2
US$ 2,500 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
According to different raw material
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port Shanghai port etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Production Capacity According to different raw material
Motor Type AC Motor
Power(W) 7.5kw, 15kw
Place of Origin Henan, China
Brand Name Lantian
Model Number FWM-140, FWM-160, FWM-220
Dimension(L*W*H) According to different types
Certification CE, ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine

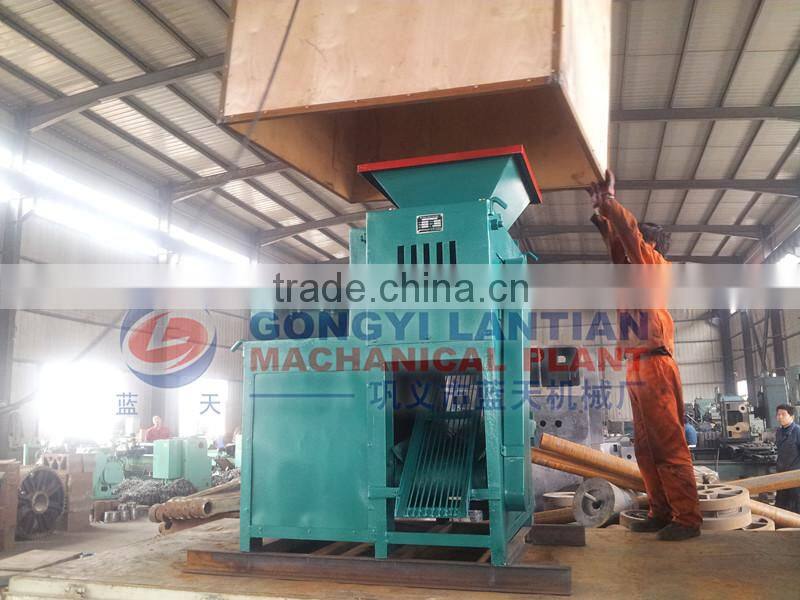

Coal powder press machine -- Roller type



 China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine

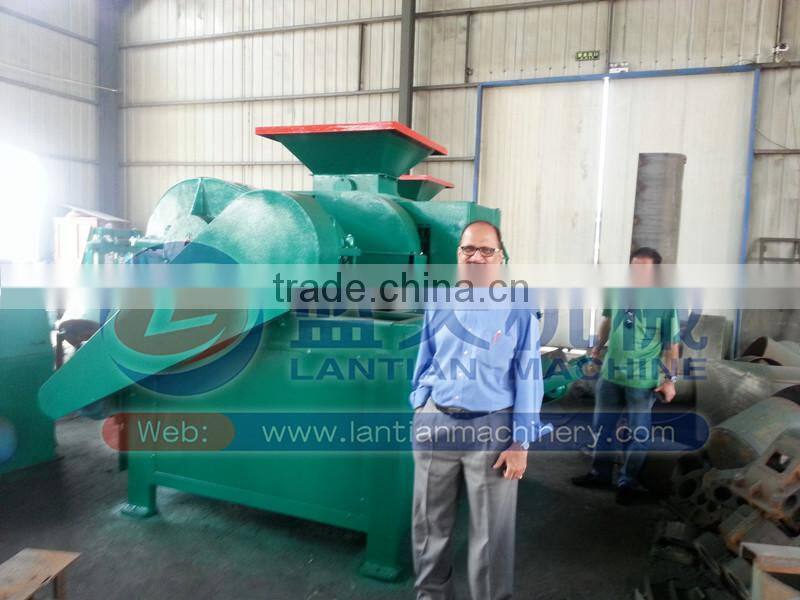

Visitor came to our factory to test coal powder press machine





China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine





Worksite of coal powder press machine







China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine

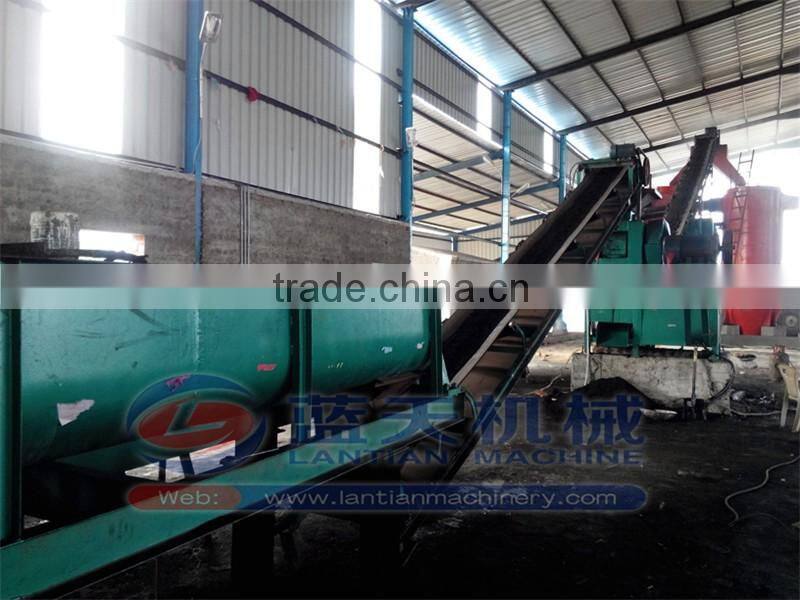

The whole coal powder press machine production line



China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine





Brief introduction of coal powder press machine:





1) Coal powder press machine has far-ranging raw material. Raw material can be coal



powder, charcoal powder, iron powder, cooper powder, refractory matter powder, or any



other mineral powder, etc.



2) Coal powder press machine uses tremendous pressure made by two rollers to make



these raw material into various certain shapes and sizes briquettes. The briquette shapes



can be pillow shape,round shape, square shapes,etc. with diameter in 25-75mm



3) Application of coal briquettes made by coal powder press machine: BBQ use, warm use,



iron works, refractory industry, etc.

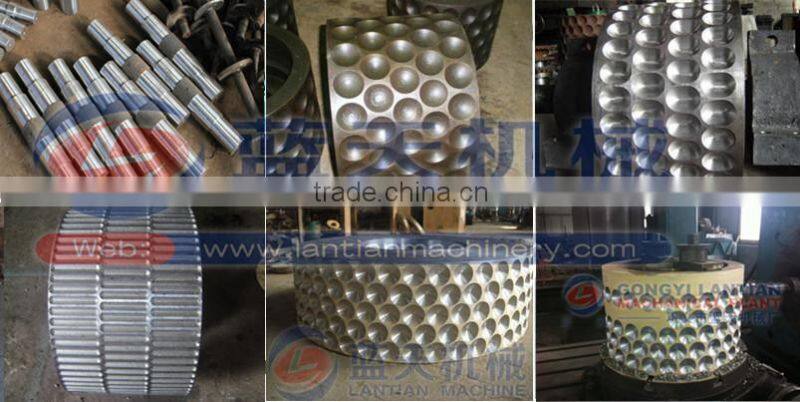

Molds of coal powder press machine





China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine

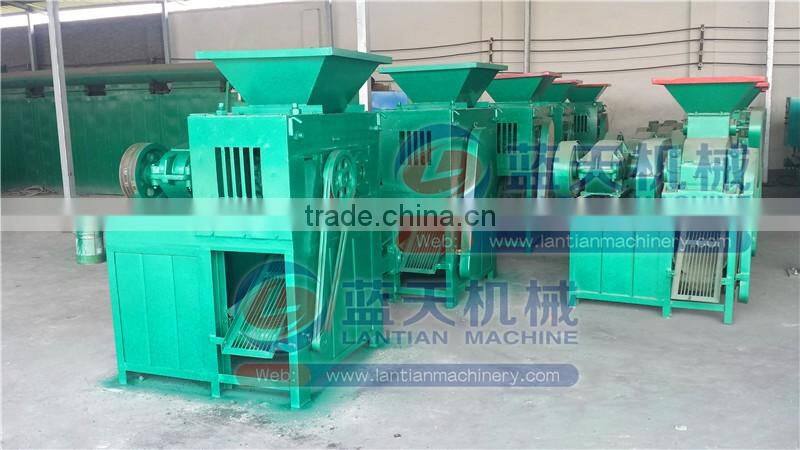

Delivery site of coal powder press machine





China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine







Features of coal powder press machine



1.Because of the high pressure and reasonal design ,the machine with high density and



high briqutte ratio .



vide the whole production line,from the crusher to the drying systerm.



3.Final ratio of briquettes will at 98 percent because of the advanced design.



4.Meet all your customer requirement,the size.shape,material can be design according to



you. The roller mateiral we can for you is 65Mn, 9Cr2Mo, Alloy Steel, high-chromum alloy



and so on.

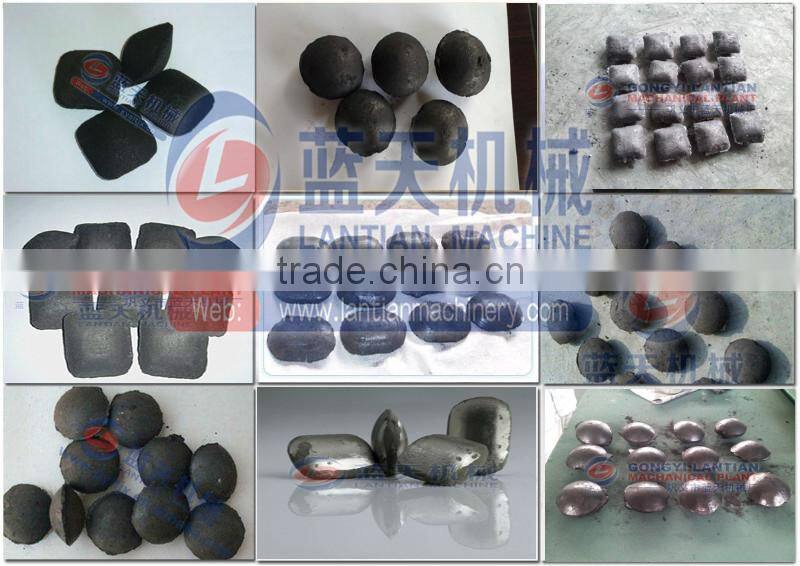

Coal briquettes made by coal powder press machine





China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine



Test coal briquettes made by coal powder press machine's burning effect:





China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine





Main parameter of coal powder spress machine



TypeRoller diameterCapacityMotor powerOutlet shape and size
YQJ-290 290mm 1-2 ton/h 5.5 kwCustomized
YQJ-360 360mm 3-4 ton/h 7.5 kwCustomized
YQJ-450 450mm 5-6 ton/h 15 kwCustomized
YQJ-550 550mm 6-10 ton/h 18.5 kwCustomized
YQJ-650 650mm 10-15 ton/h 25 kwCustomized
YQJ-850 850mm 15-25 ton/h 30-55 kwCustomized
YQJ-1000 1000mm 25-35 ton/h 75-130 kwCustomized

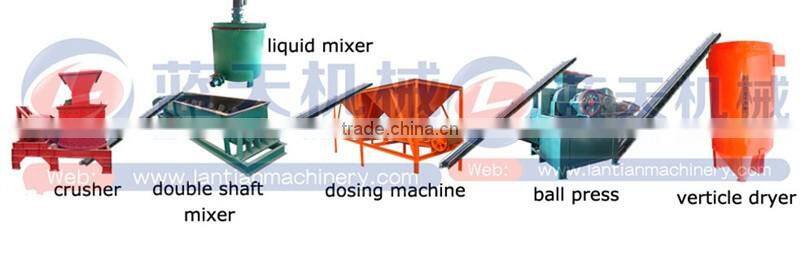

The whole production line of coal powder press machine



1) Crusher: Using crusher to crush raw material into fine powder.



2) Screw conveyor: Use screw conveyor to convey fine powder into wheel mixer.



3) Double-shaft mixer: Use liquid mixer to make binder for fine powder.



4) Coal powder press machine: Shaping fine coal powder into coal briquettes.



5) Vertical dryer: Use vertical dryer to dry up coal briquettes.







Other kinds coal powder press machines for your reference

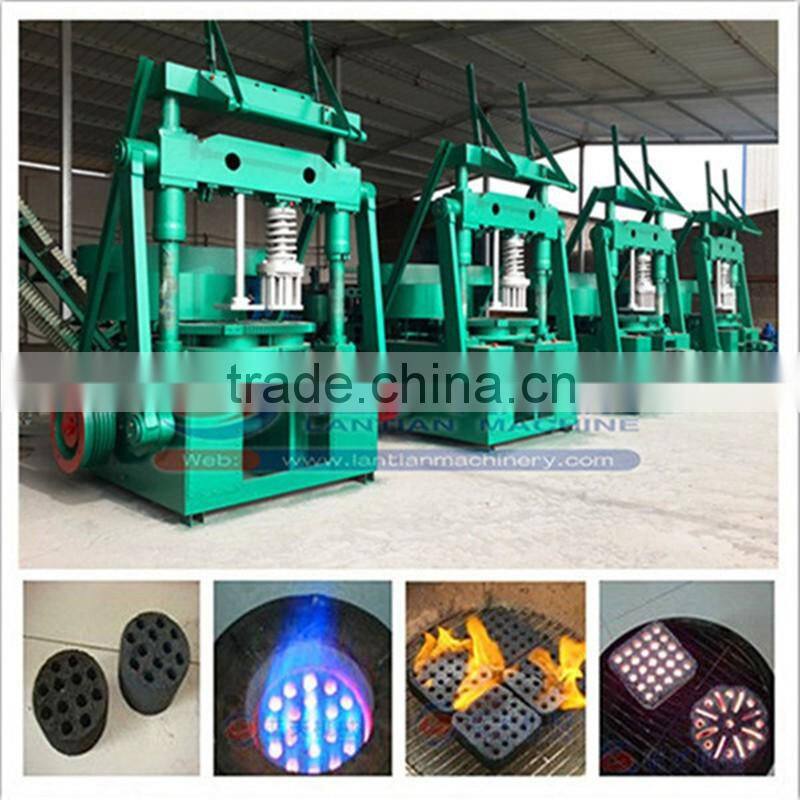

1) Coal powder press machine --- Mechanical punching type



If you are interested in this machine, please click the following photo



 China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine

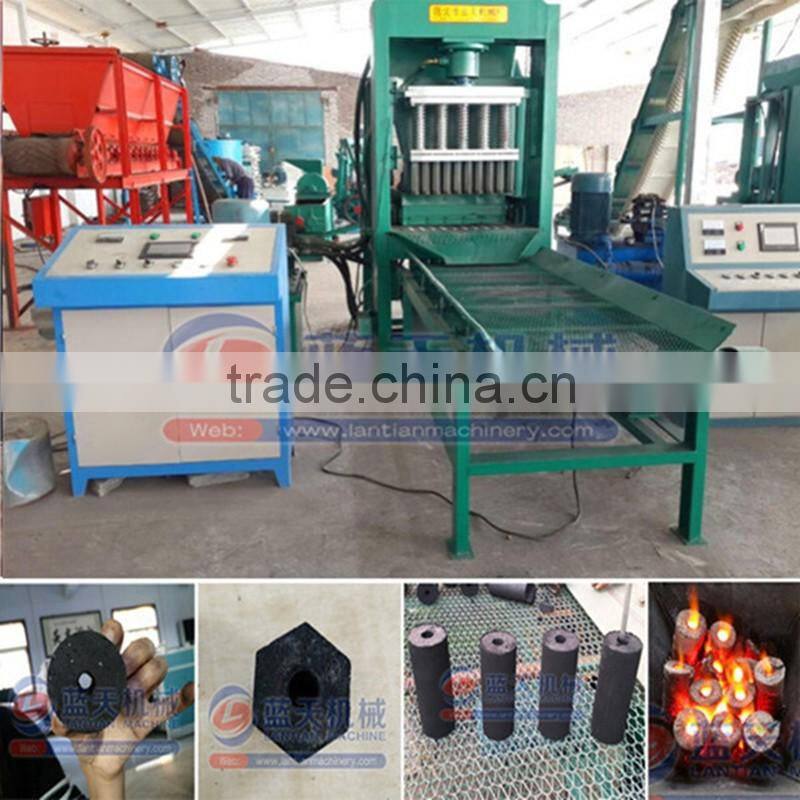

2) Coal powder press machine ------ Hydraulic punching type



If you are interested in this machine, please click the following photo





China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine

Any demands, welcome to contact me immediately!!



China manufacturer high quality charcoal powder briquette pressing machine coal powder press machine

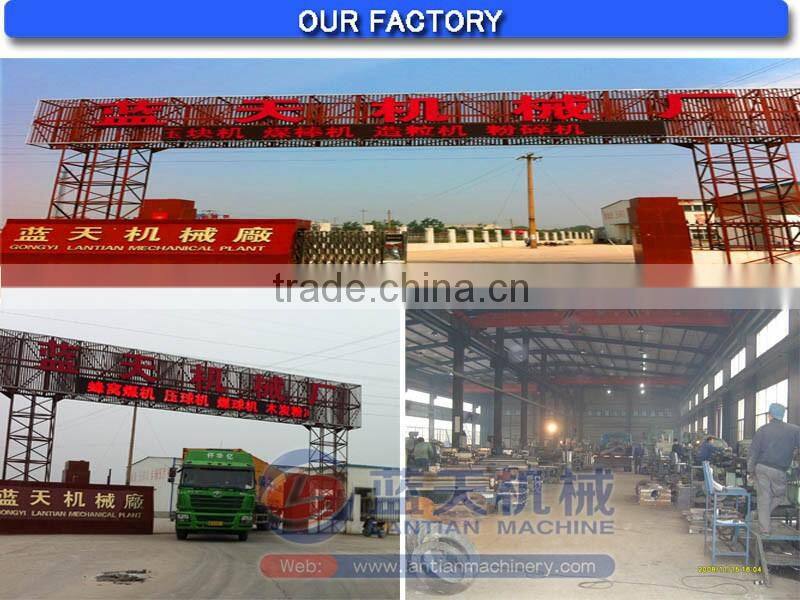

Introduction of Lantian Mechanical Plant:





Lantian Mechanical Plant is a professional factory , which has been specialized in coal,



charcoal briquette area since1980s.Nearly 30 years' development, we have developed



and researched a series of new type machines. Besides coal briquette machine, charcoal



briquette machine, biomass coal charcoal briquette machine,we also provide you other



assistant machines, like dryer, crusher, carbonization furnace, conveyor,etc.
