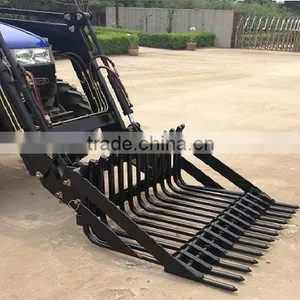

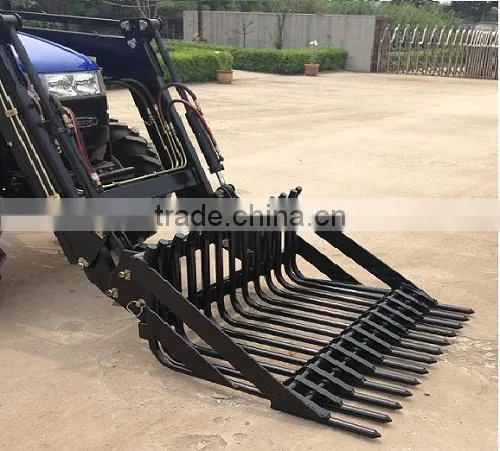

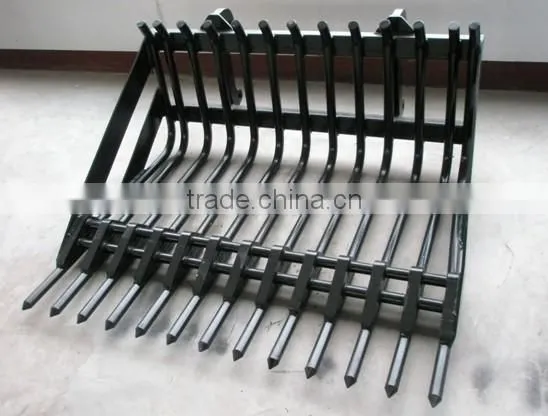

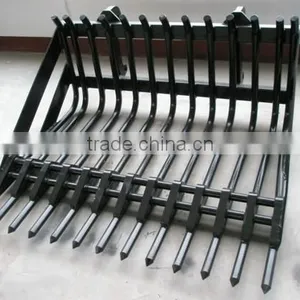

Front Stone Bucket Loader
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
China
Specifications
Stone bucket loader/forklift can be assembed to front end loader arm and can be exchanable with front end loader.| Front End Loader--With Stone Bucket | |||||
| Model No. | TZ-3S | TZ-4S | TZ-8S | TZ-10S | TZ-12S |
| Overall dimension mm | 4100×1600×1580 | 4100×1600×1580 | 4900×1739×2494 | 4900×1739×2494 | 5350×1800×3000 |
| Power HP | 20—30 | 30—45 | 50-70 | 80 - 90 | 100-125 |
| Max. dump height mm | 1800 | 2000 | 2200 | 2400 | 2800 |
| Max. dump distance mm | 900 | 900 | 960 | 1000 | 1100 |
| Bucket rollback angle, degree | 420 | 420 | 420 | 420 | 420 |
| Max. unloading angle, degree | 470 | 470 | 160 | 160 | 160 |
| Max. scraping depth mm | 100 | 140 | 460 | 460 | 460 |
| Lifting time to pivot pin S | 7 | 7 | 8 | 8 | 10 |
| Descending time S | 3.5 | 3.5 | 4 | 4 | 10 |
| Bucket capacity m3 | 0.2 | 0.23 | 0.43 | 0.6 | 0.65 |
