cheap Model EVR15 Solenoid Valve

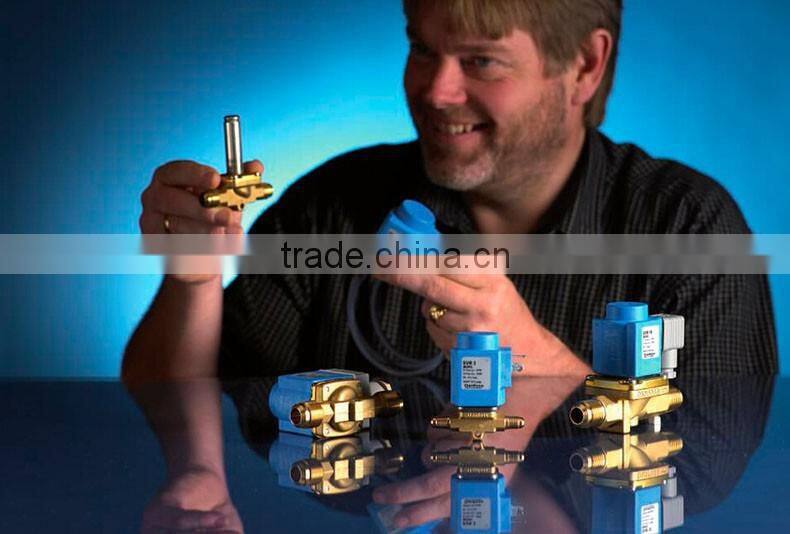

cheap Model EVR15 Solenoid Valve
· Model EVR solenoid valve is a direct-operated or servo-operated valve,which is applicable to one direction flow.
· Model EVR solenoid valve is used on the liquid, air suction or hot vaporpiping of a freezer, cold store and air conditioning unit.
· The valve seat of Model EVR solenoid valve is well sealed with perfectsealing performance.
· Model EVR solenoid valves with various voltage solenoids are availableand the valve body is universal.
· Both packed and separated Model EVR solenoid valves are available andit means the valve body could be supplied separately from the solenoid.
Features:
· Only NC type solenoid valve is available.
· The max. design temperature is 105℃.
· 100-mesh filter is contained at the suction end, which is replaceable.
· 10W high power solenoid and max. operating pressure differential
· (MOPD) is 2.5 MPa.
· It is applicable to various applications in freezer, cold store and air conditioning unit.
· The max. size of flare connection is 3/4 in.
· The max. size of welded connection is 9/8 in.
· The solenoids with various power supply are available.
· The clamped joint solenoid is easy to be mounted or dismounted only with one screwdriver.
· The sealed solenoid has a long service life and it can be used even in an adverse circumstance.
Technical Paramengers:
| Applicable Refrigerant | HCFC or HFC (Customer choice) |
| Applicable Medium Temperature | -25℃~+105℃ |
| Applicable Ambient Temperature of Solenoid | -25℃~+80℃ |
| Standard Voltage of Solenoid | AC380V,AC220V/50Hz(Custom design is acailable) |
| Allowable Voltage Fluctuation for Solenoid | +10%~-15% |
| Connection of Solenoid | IP67 with terminal box |
Specification:
| Model | Connection Type | P(bar) | Max.Operating Pressure(bar) | Kv(m3/h) | ||
| Flare | Welded | Min. | Max.MOPD Liquid | |||
| EVR3-2 | 1/4 SAE | 1/4 ODF | 0.0 | 30 | 40 | 0.27 |
| EVR3-3 | 3/8 SAE | 3/8 ODF | 0.0 | 0.27 | ||
| EVR6-3 | 3/8 SAE | 3/8 ODF | 0.05 | 0.8 | ||
| EVR6-4 | 1/2 SAE | 1/2 ODF | 0.8 | |||
| EVR10-4 | 1/2 SAE | 1/2 ODF | 1.9 | |||
| EVR10-5 | 5/8 SAE | 5/8 ODF | 1.9 | |||
| EVR15-5 | 5/8 SAE | 5/8 ODF | 2.6 | |||
| EVR15-6 | 3/4 SAE | 3/4 ODF | 2.6 | |||
| EVR15-7 | -- | 7/8 ODF | 2.6 | |||
| EVR20-7 | -- | 7/8 ODF | 5.0 | |||
| EVR20-9 | -- |
|
||||
