TAJ4519 tecumseh refrigeration condensing unit prices
1. French original new compressor
2. 380V 50HZ R22

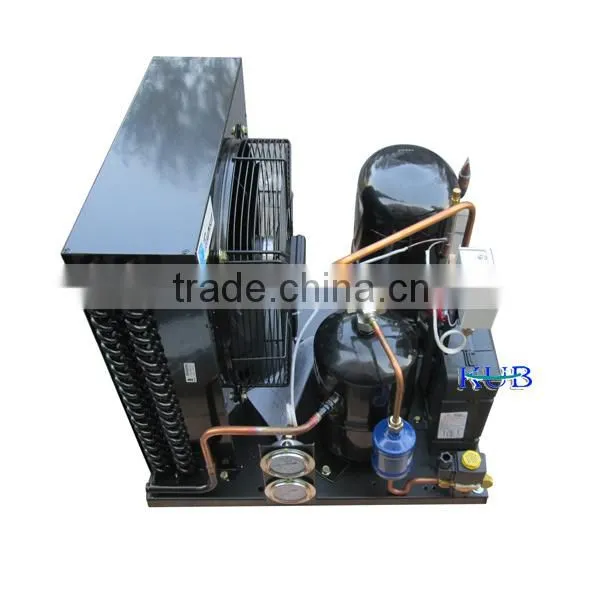

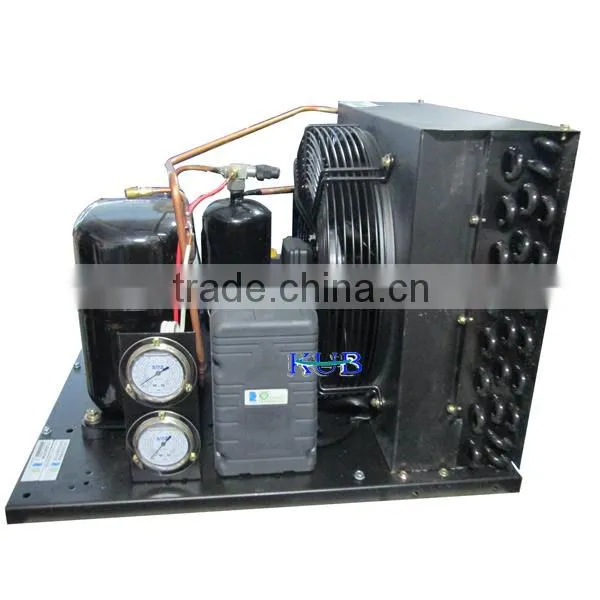

Tecumseh condensing unit TAJ4519 LTAJ4519EHR
| MODEL | POWER | HP | gas |
| CAJ4517EHR | 220V | 1.25 | R22 |
| CAJ4519EHR | 220V | 1.75 | R22 |
| TAJ4519THR | 380V | 1.75 | R22 |
| TFH2480ZBR | 380V | 2 | R404A |
| TFH2511ZBR | 380V | 3 | R404A |
| FH4524FHR | 220V | 2 | R22 |
| TFH4524FHR | 380V | 2 | R22 |
| FHS4531FHR | 220V | 3 | R22 |
| TFHS4531FHR | 380V | 3 | R22 |
| TFHS4540FHR | 380V | 3.5 | R22 |
| TAG2516ZBR | 380V | 4 | R404A |
| TAG2522ZBR | 380V | 6 | R404A |
| TAG4546THR | 380V | 4 | R22 |
| TAG4561THR | 380V | 5 | R22 |
| TAG4568THR | 380V | 6 | R22 |
| TAG4573THR | 380V | 6.5 | R22 |
Selection Principles
1. Compressor capacity should be determined according to each evaporating temperature mechanical load multiplied by the total system operating time factor. In addition to special requirements, generally do not use the machine equipment.
Reciprocating piston compressors Freon
2. Selection, when the compression ratio is greater than 10 should be the two-stage compressor; Should be less than or equal to 10 single stage compression. Freon two-stage compression system generally should adopt a throttle in the middle of incomplete cooling.
3. Generally cold in some of the cooler, oil separators, condensers, liquid and other equipment should be with Freon refrigeration compressor cooling capacity to adapt.
4. Selection of Freon refrigeration compressors working conditions, working conditions shall not exceed the limit specified in Shenzhen cold storage companies.
5. Freon refrigeration cooling systems, heat recovery should be used in general circulation.
6. Refrigeration compressor operating hours, for 5 ~ 100t of cold, generally can be every day and night operation 12 ~ 16h.
More extensive product available for your choice
1. Individuation & Customization
Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
2. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
Introduction
Shanghai KUB Refrigeration Equipment Co., Ltd. is refrigeration equipment production, refrigeration installation and technical services integrated enterprise. Our company was established in 2000. Since company's inception, we have been continuously innovating and developing. Our aim is to grow into the world's high-quality refrigeration equipment and accessories manufacturer in China.
Our main business are: the wholesale of foreign and domestic compressors and spare parts; production of all kinds of outdoor-type quiet refrigeration units and complete set of chillers, refrigerator library body, and refrigeration units; installation and commissioning one-stop services; production of condenser and evaporator.
We have subsidiary company - KUB Shanghai Refrigeration Equipment Co., Ltd. and the treasure house of the company's sales agent - Contardo Italian Air Coolers.
Our company's spirit is of "quality first, reputation first". We are trying our best to provide users with high-quality products and excellent services. We hope to work with the vast number of users and create a brilliant tomorrow together.
